CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC小型便捷式专用晶振

2023-04-26 17:04:15

Microcrystal微晶CM8V-T1A低ESR是一款低频SMD石英晶体器件,小体积晶振尺寸2.0x1.2mm晶振,两脚贴片晶振,32.768K晶振,无源晶振,石英晶体谐振器,内置音叉石英晶体谐振器,最大ESR值为50kω,适合低功耗设计。它在带金属盖的密封陶瓷封装中的真空下工作。具有超小型,轻薄型,耐热及耐环境特点,适用于通讯设备,无线蓝牙,可穿戴设备,小型便捷式设备,智能手机,平板电脑,物联网,卫生保健,测量,产业的,汽车的,超小型设备应用等。

CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC小型便捷式专用晶振

特征:
超小尺寸:2.0x1.2x0.60毫米贴片晶振
超小型、薄型、重量轻(4.6毫克)
金锡预制件的出色密封
密封保证了高稳定性和低老化
适用于扩展的工作温度范围
高抗冲击和振动
100%无铅,符合RoHS标准
提供符合AEC-Q200的汽车认证

品牌 美国进口晶振 描述 频率
Micro Crystal CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC 32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC 32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-9pF-20PPM-TB-QA 32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC 32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC 32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC 32.768 kHz 9.0 pF +/-20 PPM LOW ESR 32.768 kHz
Micro Crystal CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC 32.768 kHz 12.5 pF +/-20 PPM LOW ESR 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC 32.768 kHz 7.0 pF +/-20 PPM LOW ESR 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC 32.768 kHz 9.0 pF +/-20 PPM -55/+125C 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC 32.768 kHz 6.0 pF +/-20 PPM LOW ESR 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC 32.768 kHz 6.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC 32.768 kHz 6.0 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC 32.768 kHz 6.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC 32.768 kHz 12.5 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC 32.768 kHz 7.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC 32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC 32.768 kHz 12.5 pF +/-20 PPM 0.3mm 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC 32.768 kHz 9.0 pF +/-10 PPM -40/+85C 32.768k
Micro Crystal CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC 32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC 32.768 kHz 12.5 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC 32.768 kHz 7.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC 32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC 32.768 kHz 7.0 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC 32.768 kHz 12.5 pF +/-20 PPM -55/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC 32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC 32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC 32.768 kHz 9.0 pF +/-10 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC 32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC 32.768 kHz 12.5 pF +/-20 PPM -55/+125C 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA 32.768 kHz 7.0 pF +/-10 PPM LOW ESR 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC 32.768 kHz 9.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA 32.768 kHz 9.0 pF +/-20 PPM LOW ESR 32.768 kHz
MicroCrystal CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC 32.768 kHz 9.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC 100.000 kHz 9.0 pF +/-100 PPM -40/+85C 100 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC小型便捷式专用晶振陶瓷或金属封装的32.768kHz和低频(LF)石英晶体单元。有低ESR和宽负载电容(CL)范围的音叉晶体可供选择。这些XTAL产品满足市场对振荡器或微控制器等低功耗定时器件、高可靠性、扩展工作温度和符合AEC-Q200汽车认证的要求。

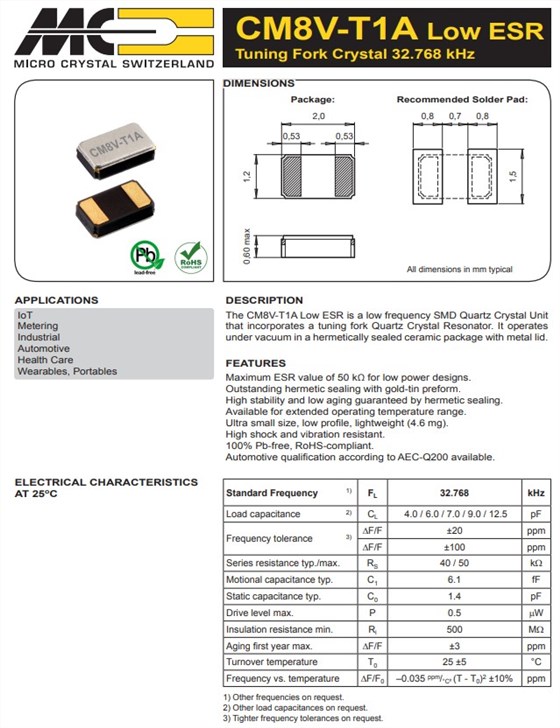

CM8V-T1A Low ESR
