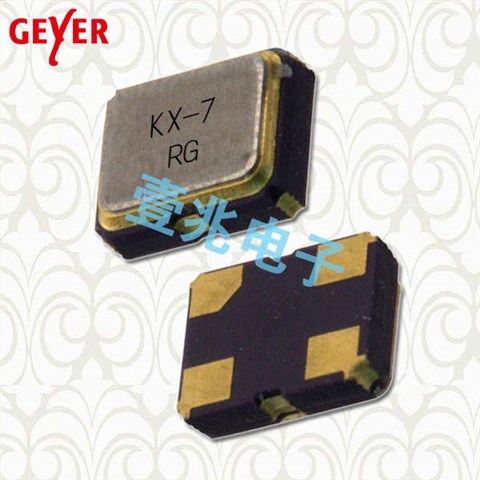

四脚晶体谐振器,12.88667 KX-7晶振,GEYE谐振器

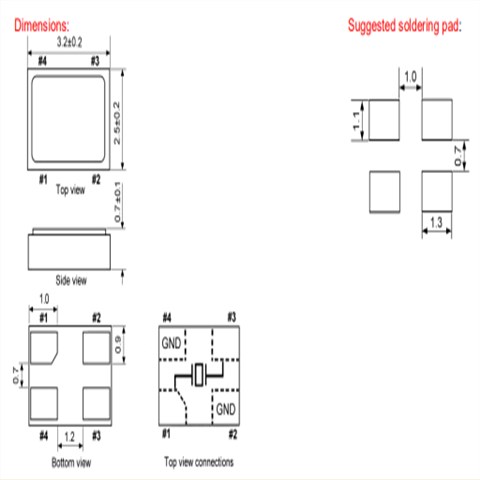

四脚晶体谐振器，12.88667 KX-7晶振，GEYE谐振器，尺寸：3.2x2.5x0.7mm精度：±30ppm,频率：25 MHz,工作温度范围：-20°C ~ 70°C，表贴片晶体谐振器，晶体谐振器，四脚贴片晶振，医疗设备晶振，具有稳定型，轻薄型等特点，通常应用于：安防系统晶振，安保设备晶振，局域网设备晶振等。

GEYER是频率控制产品（晶体和振荡器）的国际供应商，并且要求特殊电池。我们稳步成长的中型企业的总部位于慕尼黑附近的Grfelfing，我们在美国，新加坡，印度也在英国和匈牙利设有办事处。我们的客户包括电力行业和汽车制造商。我们在充满活力的公司中提供有趣和多样的工作环境和多样化的设计可能性。

四脚晶体谐振器，12.88667 KX-7晶振，GEYE谐振器

part no. 12.88667

model KX – 7

frequency range 8.0~80.0 MHz

mode fundamental

operating temperature standard-20° ~ +70°C
available-40° ~ +85°C (=KX-7T); -40° ~ +105°C (=KX-7E); -40° ~ +125°C (=KX-7F)

frequency tolerance at +25°C standard±30 ppmavailable±10 ~ ±50 ppm

temperature tolerance
at -20° ~ +70°C; -40° ~ +85°C
-40° ~ +105°C
-40° ~ +125°C standard±50 ppm; available±10 ~ ±100 ppm
standard±100 ppm; available±30 ~ ±120 ppm
standard±100 ppm; available±50 ~ ±150 ppm

load capacitance CL standard12 pF;available7 ~ 20 pF

series resistance R1 (ESR) max. 8.0~9.9 MHz500 Ohm
10.0~ 10.9 MHz180 Ohm
11.0~ 11.9 MHz150 Ohm
12.0~ 12.9 MHz80 Ohm
13.0~ 15.9 MHz70 Ohm
16.0~ 29.9 MHz60 Ohm
30.0~ 80.0 MHz50 Ohm

aging at +25°C (first year) max. ±2 ppm

shunt capacitance C0max. 3.0 pF

drive level max. 200W

contents of reel 1000 pcs.

四脚晶体谐振器，12.88667 KX-7晶振，GEYE谐振器

KX-7-1

原厂编码	供应商	描述	型号	标准频率	频率容差	频率稳定性	工作温度范围
12.88722	Geyer 晶振	Crystal 16.0Mhz SMD KX-7T 12pF,	KX-7T	16 MHz	±25ppm	±10ppm	-20°C ~ 70°C
12.60233	Geyer 晶振	CRYSTAL 25.0MHZ 12PF SMD	KX-7T	25 MHz	±20ppm	±20ppm	-40°C ~ 85°C
12.86544	Geyer 晶振	Crystal 16.0Mhz 10pF SMD	KX-7E	24 MHz	±120ppm	±30ppm	-40°C ~ 105°C
12.60208	Geyer 晶振	CRYSTAL 26.0MHZ 8PF SMD	KX-7T	26 MHz	±10ppm	±20ppm	-40°C ~ 85°C
12.88664	Geyer 晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7	14.31818 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.887	Geyer 晶振	Crystal 30.0Mhz 12pF SMD	KX-7	30 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.6009	Geyer 晶振	CRYSTAL 24.0MHZ 12PF SMD	KX-7T	24 MHz	±20ppm	±20ppm	-40°C ~ 85°C
12.88701	Geyer 晶振	Crystal 40.0Mhz 12pF SMD	KX-7T	40 MHz	±100ppm	±30ppm	-40°C ~ 85°C
12.88493	Geyer 晶振	Crystal 33.33Mhz SMD KX-7T 12pF,	KX-7T	33.33333 MHz	±100ppm	±30ppm	-40°C ~ 85°C
12.88508	Geyer 晶振	Crystal 24.0Mhz 12pF SMD	KX-7T	24 MHz	±50ppm	±20ppm	-40°C ~ 85°C
12.88711	表贴式晶振	Crystal 25.0Mhz SMD KX-7T 12pF,	KX-7T	25 MHz	±30ppm	±30ppm	-40°C ~ 85°C
12.88721	Geyer 晶振	Crystal 16.0Mhz 12pF SMD	KX-7T	16 MHz	±30ppm	±30ppm	-20°C ~ 70°C
12.88667	Geyer 晶振	Crystal 25.0Mhz SMD KX-7 12pF, 4	KX-7	25 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.60075	Geyer 晶振	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm	±30ppm	-40°C ~ 125°C
12.88522	Geyer 晶振	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.88752	Geyer 晶振	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.88565	Geyer 晶振	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.60024	Geyer 晶振	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm	±30ppm	-40°C ~ 105°C
12.8873	Geyer 晶振	Crystal 26.0Mhz 12pF SMD	KX-7T	26 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.88643	Geyer 晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7T	14.31818 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.88523	Geyer 晶振	Crystal 40.0Mhz 12pF SMD	KX-7F	40 MHz	±50ppm	±30ppm	-40°C ~ 125°C
12.88799	Geyer 晶振	Crystal 12.0Mhz 10pF SMD	KX-7	12 MHz	±30ppm	±30ppm	-20°C ~ 70°C
12.88756	Geyer 晶振	Crystal 10.0Mhz 12pF SMD	KX-7E	26 MHz	±50ppm	±10ppm	-40°C ~ 105°C
12.8877	Geyer 晶振	Crystal 30.0Mhz 12pF SMD	KX-7T	30 MHz	±10ppm	±10ppm	-25°C ~ 80°C
12.60023	Geyer 晶振	Cystal 48.0Mhz 12pF SMD	KX-7E	48 MHz	±50ppm	±30ppm	-40°C ~ 105°C
