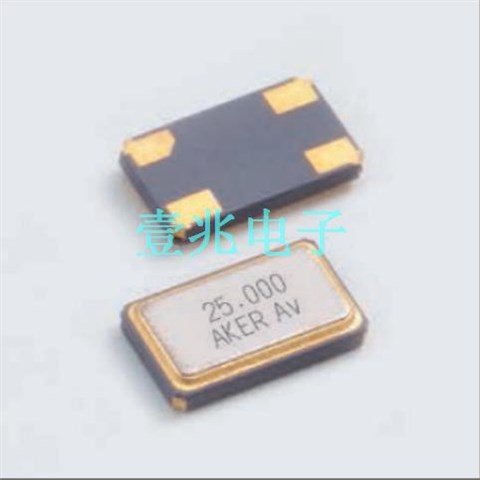

石英AKER晶体,C6S-16.000-12-5050-X-R,6035晶振

产品简介

石英AKER晶体,C6S-16.000-12-5050-X-R,6035晶振，编码：C6S-16.000-12-5050-X-R，型号：C6S，工作温度：-40°C ~ 85°C，尺寸：6.0mm*3.5mm，频率：16MHz，精度：±50ppm，负载电容：12pF，无源贴片晶振，石英晶振，SMD晶体，贴片石英晶体，进口6035贴片晶振，晶体谐振器，AKER石英晶体，具有体积小，重量轻，精度偏差小特点，产品广泛应用于数码电子产品，无线电话，智能手机，无线局域网等用途。

产品详情

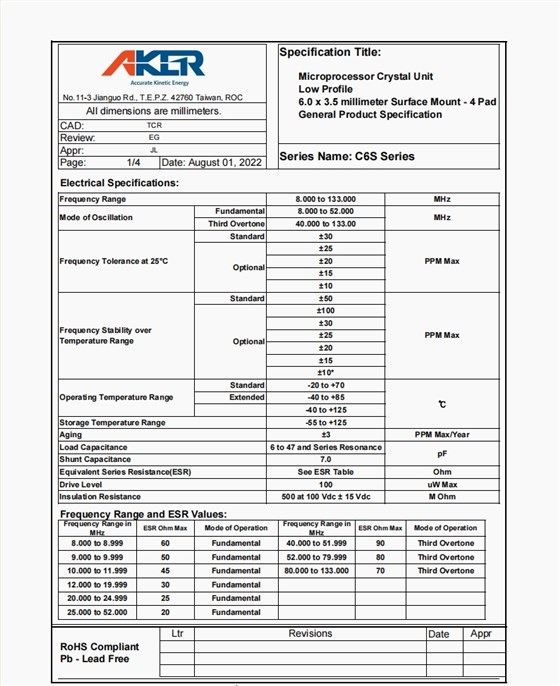

石英AKER晶体,C6S-16.000-12-5050-X-R,6035晶振，参数表

编码	C6S-16.000-12-5050-X-R
品牌	AKER
型号	C6S
频率	16MHz
精度	±50ppm
负载电容	12pF
工作温度	-40°C ~ 85°C
尺寸	6.0mm*3.5mm

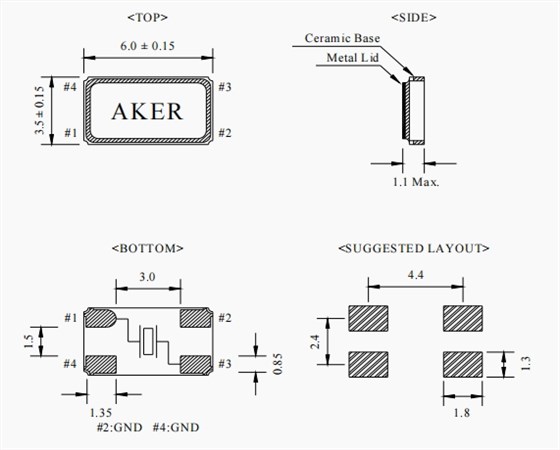

石英AKER晶体,C6S-16.000-12-5050-X-R,6035晶振，尺寸图

Mfr Part #	贴片石英晶体	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
C3E-16.000-18-3030-X-R	Aker Technology Corp	C3E	16 MHz	±30ppm	18pF	-40°C ~ 85°C
C3E-20.000-12-3030-X-R	Aker Technology Corp	C3E	20 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-16.000-12-3030-R	Aker Technology Corp	C3E	16 MHz	±30ppm	12pF	-20°C ~ 70°C
C3E-25.000-18-3030-R	Aker Technology Corp	C3E	25 MHz	±30ppm	18pF	-20°C ~ 70°C
C3E-12.000-18-3030-R	Aker Technology Corp	C3E	12 MHz	±30ppm	18pF	-20°C ~ 70°C
C3E-25.000-18-2030-R	Aker Technology Corp	C3E	25 MHz	±20ppm	18pF	-40°C ~ 85°C
C3E-12.000-8-3030-R	Aker Technology Corp	C3E	12 MHz	±30ppm	8pF	-20°C ~ 70°C
C3E-25.000-8-1010-R	Aker Technology Corp	C3E	25 MHz	±10ppm	8pF	-10°C ~ 70°C
C3E-25.000-8-1520-R	Aker Technology Corp	C3E	25 MHz	±15ppm	8pF	-20°C ~ 70°C
C3E-16.000-12-3030-X-R	Aker Technology Corp	C3E	16 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-32.000-10-1010-R	Aker Technology Corp	C3E	32 MHz	±10ppm	10pF	-10°C ~ 70°C
C3E-12.000-8-1520-R	Aker Technology Corp	C3E	12 MHz	±15ppm	8pF	-20°C ~ 70°C
C3E-32.000-12-1010-R	Aker Technology Corp	C3E	32 MHz	±10ppm	12pF	-10°C ~ 70°C
C3E-25.000-8-1015-R	Aker Technology Corp	C3E	25 MHz	±10ppm	8pF	-20°C ~ 70°C
C3E-12.000-18-3030-X-R	Aker Technology Corp	C3E	12 MHz	±30ppm	18pF	-40°C ~ 85°C
C3E-25.000-12-3030-X-R	Aker Technology Corp	C3E	25 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-25.000-10-3030-X-R	Aker Technology Corp	C3E	25 MHz	±30ppm	10pF	-40°C ~ 85°C
C3E-24.000-8-1015-R	Aker Technology Corp	C3E	24 MHz	±10ppm	8pF	-20°C ~ 70°C
C3E-24.000-10-1010-R	Aker Technology Corp	C3E	24 MHz	±10ppm	10pF	-10°C ~ 70°C
C3E-32.000-12-1530-X-R	Aker Technology Corp	C3E	32 MHz	±15ppm	12pF	-40°C ~ 85°C
C3E-12.000-8-1010-R	Aker Technology Corp	C3E	12 MHz	±10ppm	8pF	-10°C ~ 70°C
C3E-16.000-8-1015-R	Aker Technology Corp	C3E	16 MHz	±10ppm	8pF	-20°C ~ 70°C
C3E-32.000-10-1015-R	Aker Technology Corp	C3E	32 MHz	±10ppm	10pF	-20°C ~ 70°C
C3E-24.000-12-1530-X-R	Aker Technology Corp	C3E	24 MHz	±15ppm	12pF	-40°C ~ 85°C
C3E-24.000-12-3030-X-R	Aker Technology Corp	C3E	24 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-24.000-18-1010-R	Aker Technology Corp	C3E	24 MHz	±10ppm	18pF	-10°C ~ 70°C
C3E-20.000-10-1530-X-R	Aker Technology Corp	C3E	20 MHz	±15ppm	10pF	-40°C ~ 85°C
C3E-25.000-8-1530-X-R	Aker Technology Corp	C3E	25 MHz	±15ppm	8pF	-40°C ~ 85°C
C3E-24.000-12-1015-X-R	Aker Technology Corp	C3E	24 MHz	±10ppm	12pF	-40°C ~ 85°C
C3E-24.000-10-1015-X-R	Aker Technology Corp	C3E	24 MHz	±10ppm	10pF	-40°C ~ 85°C
