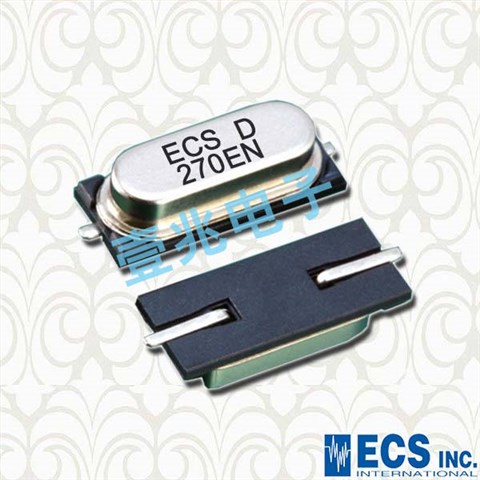

ECS-135.6-20-3X-TR晶振,CSM-3X贴片无源晶振,型号：CSM-3X系列晶振，编码为：ECS-135.6-20-3X-TR,频率为：13.56MHz，尺寸：7*4.1mm,工作温度为：-10°C ~ 70°C，无源晶振，美国进口晶振，谐振器，CSM-3X 石英晶体 CSM-3X是小型低轮廓电阻焊接型 贴片石英晶体，减少CSM-7X（HC-49 usx）的占地面积 SMD）减少50%，适用于智能家具家电，时钟钟表，工业设备，数码电子，无线晶振，GPS，医疗设备等用途。
| 编码 | ECS-135.6-20-3X-TR |
| 品牌 | ECS 晶振 |
| 型号 | CSM-3X |
| 频率 | 13.56MHz |
| 工作温度 |
-10°C ~ 70°C |
|
尺寸 |
7.*4.1mm |

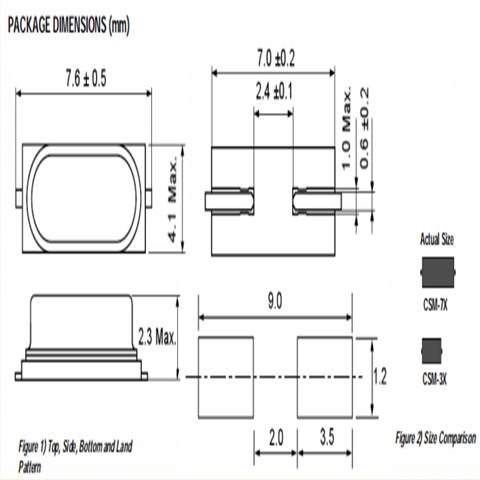

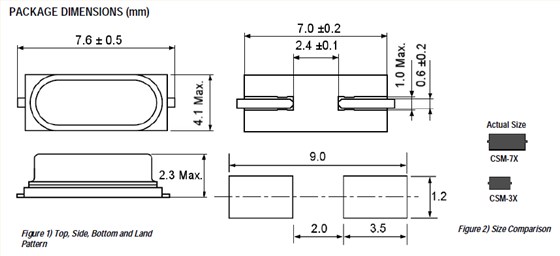

ECS-135.6-20-3X-TR晶振,CSM-3X贴片无源晶振，尺寸图
| Manufacturer Part Number原厂编码 | 晶体谐振器 | Series型号 | Frequency | Operating Temperature工作温度 |
| ECS-250-20-3X-TR | ECS 晶振 | CSM-3X | 25MHz | -10°C ~ 70°C |
| ECS-250-20-3X-TR | ECS 晶振 | CSM-3X | 25MHz | -10°C ~ 70°C |
| ECS-250-20-3X-TR | ECS 晶振 | CSM-3X | 25MHz | -10°C ~ 70°C |
| ECS-120-20-3X-TR | ECS 晶振 | CSM-3X | 12MHz | -10°C ~ 70°C |
| ECS-120-20-3X-TR | ECS 晶振 | CSM-3X | 12MHz | -10°C ~ 70°C |
| ECS-120-20-3X-TR | ECS 晶振 | CSM-3X | 12MHz | -10°C ~ 70°C |
| ECS-160-20-3X-TR | ECS 晶振 | CSM-3X | 16MHz | -10°C ~ 70°C |
| ECS-160-20-3X-TR | ECS 晶振 | CSM-3X | 16MHz | -10°C ~ 70°C |
| ECS-160-20-3X-TR | ECS 晶振 | CSM-3X | 16MHz | -10°C ~ 70°C |
| ECS-143-20-3X-TR | ECS 晶振 | CSM-3X | 14.31818MHz | -10°C ~ 70°C |
| ECS-143-20-3X-TR | ECS 晶振 | CSM-3X | 14.31818MHz | -10°C ~ 70°C |
| ECS-143-20-3X-TR | ECS 晶振 | CSM-3X | 14.31818MHz | -10°C ~ 70°C |
| ECS-147.4-20-3X-TR | ECS 晶振 | CSM-3X | 14.7456MHz | -10°C ~ 70°C |
| ECS-147.4-20-3X-TR | ECS 晶振 | CSM-3X | 14.7456MHz | -10°C ~ 70°C |
| ECS-147.4-20-3X-TR | ECS 晶振 | CSM-3X | 14.7456MHz | -10°C ~ 70°C |
| ECS-184-20-3X-TR | ECS 晶振 | CSM-3X | 18.432MHz | -10°C ~ 70°C |
| ECS-184-20-3X-TR | ECS 晶振 | CSM-3X | 18.432MHz | -10°C ~ 70°C |
| ECS-184-20-3X-TR | ECS 晶振 | CSM-3X | 18.432MHz | -10°C ~ 70°C |
| ECS-200-20-3X-TR | ECS 晶振 | CSM-3X | 20MHz | -10°C ~ 70°C |
| ECS-200-20-3X-TR | ECS 晶振 | CSM-3X | 20MHz | -10°C ~ 70°C |
| ECS-200-20-3X-TR | ECS 晶振 | CSM-3X | 20MHz | -10°C ~ 70°C |
| ECS-245.7-20-3X-TR | ECS 晶振 | CSM-3X | 24.576MHz | -10°C ~ 70°C |
| ECS-245.7-20-3X-TR | ECS 晶振 | CSM-3X | 24.576MHz | -10°C ~ 70°C |
| ECS-245.7-20-3X-TR | ECS 晶振 | CSM-3X | 24.576MHz | -10°C ~ 70°C |
| ECS-286.3-20-3X-EN-TR | ECS 晶振 | CSM-3X | 28.63636MHz | -40°C ~ 85°C |
| ECS-286.3-20-3X-EN-TR | ECS 晶振 | CSM-3X | 28.63636MHz | -40°C ~ 85°C |
