ECS-2100AX-110.5晶振,ECS-2100X有源ECS贴片晶振，型号：ECS-2100X系列晶振，编码为：ECS-2100AX-110.5，频率：11.0592MHz,尺寸：13.2*13.2mm,工作温度为：0°C ~ 70°C，ECS-2100X系列石英晶振提供低功耗，兼容 HCMOS/TTL逻辑金属包装带有 引脚#4外壳接地用作屏蔽 尽量减少辐射，它的特点：HCMOS/TTL逻辑兼容 宽频率范围 低功耗 电阻焊接包 3.3V工作电压（可选） 符合无铅/RoHS标准。
贴片石英晶体,体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域,因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求。
ECS-2100AX-110.5晶振,ECS-2100X有源ECS贴片晶振，参数表
编码
ECS-2100AX-110.5
品牌
ECS 晶振
型号
ECS-2100X
频率
11.0592MHz
工作温度
0°C ~ 70°C
尺寸
13.2mm*13.2mm

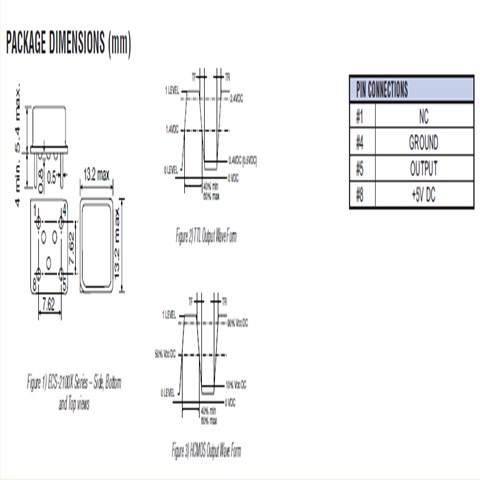

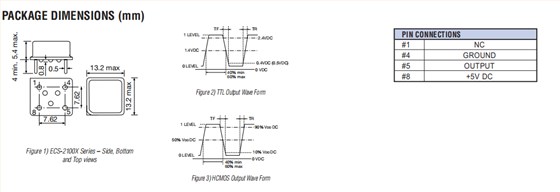

ECS-2100AX-110.5晶振,ECS-2100X有源ECS贴片晶振，尺寸图
| Manufacturer Part Number原厂代码 | 贴片晶振 | Series型号 | Frequency 频率 | Operating Temperature工作温度 |
| ECS-2100AX-200 | ECS 晶振 | ECS-2100X | 20MHz | 0°C ~ 70°C |
| ECS-2100AX-120 | ECS 晶振 | ECS-2100X | 12MHz | 0°C ~ 70°C |
| ECS-2100AX-036 | ECS 晶振 | ECS-2100X | 3.6864MHz | 0°C ~ 70°C |
| ECS-2100AX-400 | ECS 晶振 | ECS-2100X | 40MHz | 0°C ~ 70°C |
| ECS-2100AX-300 | ECS 晶振 | ECS-2100X | 30MHz | 0°C ~ 70°C |
| ECS-2100AX-147.4 | ECS 晶振 | ECS-2100X | 14.7456MHz | 0°C ~ 70°C |
| ECS-2100AX-500 | ECS 晶振 | ECS-2100X | 50MHz | 0°C ~ 70°C |
| ECS-2100AX-049 | ECS 晶振 | ECS-2100X | 4.9152MHz | 0°C ~ 70°C |
| ECS-2100AX-040 | ECS 晶振 | ECS-2100X | 4MHz | 0°C ~ 70°C |
| ECS-2100AX-098.3 | ECS 晶振 | ECS-2100X | 9.8304MHz | 0°C ~ 70°C |
| ECS-2100AX-184 | ECS 晶振 | ECS-2100X | 18.432MHz | 0°C ~ 70°C |
| ECS-2100AX-110.5 | ECS 晶振 | ECS-2100X | 11.0592MHz | 0°C ~ 70°C |
| ECS-2100AX-480 | ECS 晶振 | ECS-2100X | 48MHz | 0°C ~ 70°C |
| ECS-2100AX-100 | ECS 晶振 | ECS-2100X | 10MHz | 0°C ~ 70°C |
| ECS-2100AX-196.6 | ECS 晶振 | ECS-2100X | 19.6608MHz | 0°C ~ 70°C |
| ECS-2100AX-160 | ECS 晶振 | ECS-2100X | 16MHz | 0°C ~ 70°C |
| ECS-2100AX-080 | ECS 晶振 | ECS-2100X | 8MHz | 0°C ~ 70°C |
| ECS-2100AX-073.7 | ECS 晶振 | ECS-2100X | 7.3728MHz | 0°C ~ 70°C |
| ECS-2100AX-283.2 | ECS 晶振 | ECS-2100X | 28.332MHz | 0°C ~ 70°C |
| ECS-2100AX-092.1 | ECS 晶振 | ECS-2100X | 9.216MHz | 0°C ~ 70°C |
