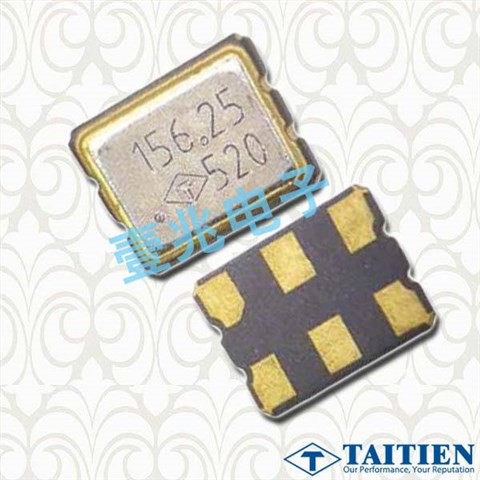

OAJRGLLTNF-125.000000振荡器,3225差分有源晶振

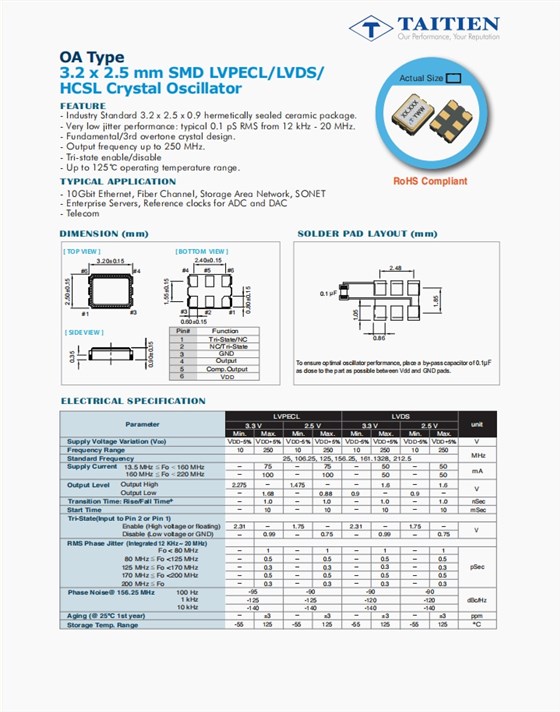

OAJRGLLTNF-125.000000振荡器,3225差分有源晶振，编码：OAJRGLLTNF-125.000000，型号：OA，工作温度：-40°C ~ 85°C，尺寸：3.2mm*2.5mm，频率：125MHz，精度：±50ppm，电压：2.5V，电流：75mA，,TAITIEN石英晶振，进口石英晶体振荡器，差分输出振荡器，OSC石英晶振，3225进口晶振，行业标准3.2 x 2.5 x 0.9密封陶瓷封装，极低抖动性能:12 kHz至20 MHz范围内的典型值为0.1 pS RMS，基频/第三泛音晶体设计，输出频率高达250 MHz，三态使能/禁用，高达125℃的工作温度范围。产品广泛应用于万兆以太网、光纤通道、存储区域网络、SONET，企业服务器、时钟钟表等应用。

OAJRGLLTNF-125.000000振荡器,3225差分有源晶振，参数表

编码	OAJRGLLTNF-125.000000
品牌	Taitien
型号	OA
频率	125MHz
精度	±50ppm
电压	2.5V
电流	75mA
工作温度	-40°C ~ 85°C
尺寸	3.2mm*2.5mm

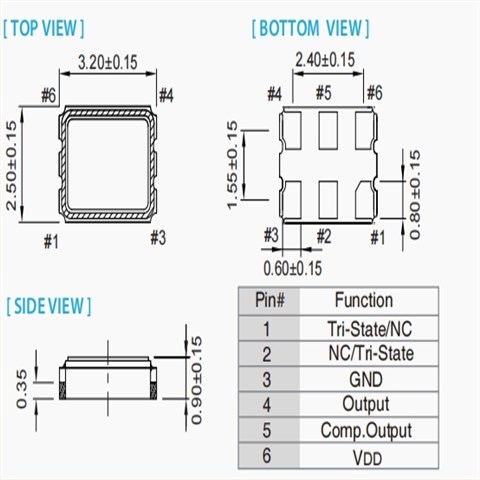

OAJRGLLTNF-125.000000振荡器,3225差分有源晶振，尺寸图

Mfr Part #	泰艺晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability
OCETGCJTNF-48.000000	Taitien	OC	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm
OCETDLJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm
OCKTGLJANF-0.032768	Taitien	OC	XO (Standard)	32.768 kHz	CMOS	3.3V	±50ppm
OCETGLJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm
OAJMGLLANF-125.000000	Taitien	OA-M	XO (Standard)	125 MHz	LVPECL	2.5V	±50ppm
OAJRGLLTNF-156.250000	Taitien	OA	XO (Standard)	156.25 MHz	LVPECL	2.5V	±50ppm
OAJMGLLANF-100.000000	Taitien	OA-M	XO (Standard)	100 MHz	LVPECL	2.5V	±50ppm
OAEMDLLANF-100.000000	Taitien	OA-M	XO (Standard)	100 MHz	LVPECL	3.3V	±25ppm
OAJRGLLTNF-100.000000	Taitien	OA	XO (Standard)	100 MHz	LVPECL	2.5V	±50ppm
OAJMGLLANF-156.250000	Taitien	OA-M	XO (Standard)	156.25 MHz	LVPECL	2.5V	±50ppm
OAEMDLLANF-212.500000	Taitien	OA-M	XO (Standard)	212.5 MHz	LVPECL	3.3V	±25ppm
OAJMGLLANF-212.500000	Taitien	OA-M	XO (Standard)	212.5 MHz	LVPECL	2.5V	±50ppm
OCETGLJTNF-133.000000	Taitien	OC	XO (Standard)	133 MHz	CMOS	3.3V	±50ppm
OAEMDLLANF-125.000000	Taitien	OA-M	XO (Standard)	125 MHz	LVPECL	3.3V	±25ppm
OAERGLLTNF-125.000000	Taitien	OA	XO (Standard)	125 MHz	LVPECL	3.3V	±50ppm
OAJRGLLTNF-125.000000	Taitien	OA	XO (Standard)	125 MHz	LVPECL	2.5V	±50ppm
OAERGLLTNF-156.250000	Taitien	OA	XO (Standard)	156.25 MHz	LVPECL	3.3V	±50ppm
OAERGLLTNF-100.000000	Taitien	OA	XO (Standard)	100 MHz	LVPECL	3.3V	±50ppm
OAEMDLLANF-156.250000	Taitien	OA-M	XO (Standard)	156.25 MHz	LVPECL	3.3V	±25ppm
ODKMDLVTNF-125.000000	Taitien	OD-M	XO (Standard)	125 MHz	LVDS	1.8V	±25ppm
ODEMDLVTNF-200.000000	Taitien	OD-M	XO (Standard)	200 MHz	LVDS	3.3V	±25ppm
OJKMDLVTNF-200.000000	Taitien	OJ-M	XO (Standard)	200 MHz	LVDS	1.8V	±25ppm
OAEWDLLTYF-150.000000	Taitien	OA-U	XO (Standard)	150 MHz	LVPECL	3.3V	±25ppm
OAEWDLVTYF-125.000000	Taitien	OA-U	XO (Standard)	125 MHz	LVDS	3.3V	±25ppm
OAEWDLHTYF-100.000000	Taitien	OA-U	XO (Standard)	100 MHz	HCSL	3.3V	±25ppm
OAEWDLVTYF-156.257812	Taitien	OA-U	XO (Standard)	156.257812 MHz	LVDS	3.3V	±25ppm
OAEWDLVTYF-156.250000	Taitien	OA-U	XO (Standard)	156.25 MHz	LVDS	3.3V	±25ppm
OCETGLJANF-26.000000	Taitien	OC	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.666000	Taitien	OC	XO (Standard)	66.666 MHz	CMOS	3.3V	±50ppm
OCJTGLJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	2.5V	±50ppm
OCETDLJTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
OCETDCJTNF-66.000000MHZ	Taitien	OC	XO (Standard)	66 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OCETDCKANF-12.800000	Taitien	OC	XO (Standard)	12.8 MHz	CMOS	3.3V	±25ppm
OCETECJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±30ppm
OCETCCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±20ppm
OCETCCJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±20ppm
OCETDCKTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
OCETDLJANF-2.048000	Taitien	OC	XO (Standard)	2.048 MHz	CMOS	3.3V	±25ppm
