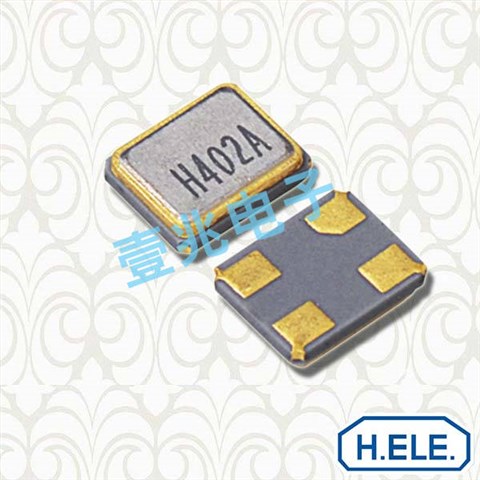

HSX221SA贴片无源晶振,X2B040000BC1H-DHZ进口晶振，编码：X2B040000BC1H-DHZ，型号：HSX221SA，工作温度：-30°C ~ 85°C，尺寸：2.5mm*2.0mm，频率：40MHz，精度：±10ppm，负载电容：12pF，进口石英晶振，贴片无源晶振，晶体谐振器，石英晶体晶振，SMD晶体，石英晶振，无源晶振，HELE贴片晶体，小体积2520贴片晶振，具有轻薄小的特点，被广泛应用于智能手机，智能家居家电，无线电话，网络设备，工业设备，医疗设备等用途。
HSX221SA贴片无源晶振,X2B040000BC1H-DHZ进口晶振，参数表
| 编码 |
X2B040000BC1H-DHZ |
| 品牌 | HELE |
| 型号 | HSX221SA |
| 频率 | 40MHz |
| 精度 |
±10ppm |
| 负载电容 |
12pF |
| 工作温度 |
-30°C ~ 85°C |
| 尺寸 | 2.5mm*2.0mm |

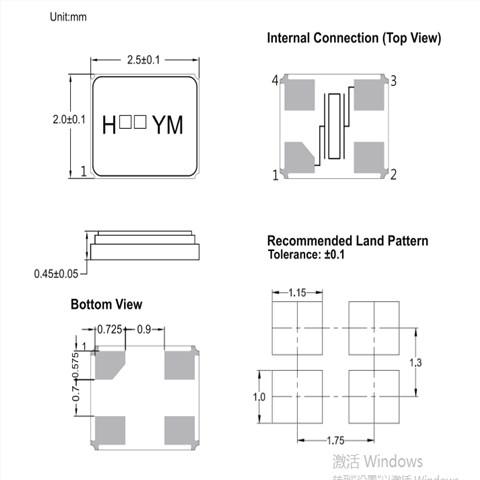

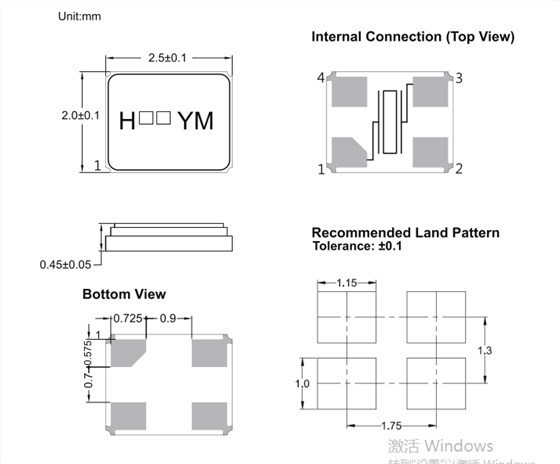

HSX221SA贴片无源晶振,X2B040000BC1H-DHZ进口晶振，尺寸图
| Mfr Part # | 晶体谐振器 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
| X3S027000BA1H-U | Harmony Electronics Corp / H.ELE. | HSX321S | 27 MHz | ±10ppm | 10pF | -30°C ~ 85°C |
| X3S024000B91H-HS | Harmony Electronics Corp / H.ELE. | HSX321S | 24 MHz | ±10ppm | 9pF | - |
| X3S027120BA1H-X | Harmony Electronics Corp / H.ELE. | HSX321S | 27.12 MHz | ±10ppm | 10pF | -40°C ~ 105°C |
| X3S032000BC1HA-CHPZ | Harmony Electronics Corp / H.ELE. | HSX321S | 32 MHz | ±10ppm | 12pF | -30°C ~ 85°C |
| X3S016000DI1H-HW | Harmony Electronics Corp / H.ELE. | HSX321S | 16 MHz | ±20ppm | 18pF | -40°C ~ 105°C |
| X3S012000FI1H-HV | Harmony Electronics Corp / H.ELE. | HSX321S | 12 MHz | ±30ppm | 18pF | -40°C ~ 125°C |
| X3S025000D81H-HU | Harmony Electronics Corp / H.ELE. | HSX321S | 25 MHz | ±20ppm | 8pF | -40°C ~ 105°C |
| X3S026000B91H-NZ | Harmony Electronics Corp / H.ELE. | HSX321S | 26 MHz | ±10ppm | 9pF | -30°C ~ 85°C |
| X2B026000M81H-HS | Harmony Electronics Corp / H.ELE. | HSX221SA | 26 MHz | ±7ppm | 8pF | - |
| X2B016000BA1H-U | Harmony Electronics Corp / H.ELE. | HSX221SA | 16 MHz | ±10ppm | 10pF | -30°C ~ 85°C |
| X2B012000BC1H-U | Harmony Electronics Corp / H.ELE. | HSX221SA | 12 MHz | ±10ppm | 12pF | -40°C ~ 105°C |
| X2B040000BC1H-DHZ | Harmony Electronics Corp / H.ELE. | HSX221SA | 40 MHz | ±10ppm | 12pF | -30°C ~ 85°C |
| X2C025000DZ1H-U | Harmony Electronics Corp / H.ELE. | HSX211S | 25 MHz | ±20ppm | 6pF | -40°C ~ 105°C |
| X2C032000BA1H-HZ | Harmony Electronics Corp / H.ELE. | HSX211S | 32 MHz | ±10ppm | 10pF | - |
| X2C024000DZ1H-HU | Harmony Electronics Corp / H.ELE. | HSX211S | 24 MHz | ±20ppm | 6pF | -40°C ~ 105°C |
| X2C016000B81H-R | Harmony Electronics Corp / H.ELE. | HSX211S | 16 MHz | ±10ppm | 8pF | -30°C ~ 85°C |
| X2C026000BC1H-Z | Harmony Electronics Corp / H.ELE. | HSX211S | 26 MHz | ±10ppm | 12pF | -30°C ~ 85°C |
| X1C032000B81H-HR | Harmony Electronics Corp / H.ELE. | HSX111S | 32 MHz | ±10ppm | 8pF | - |
| X1C024000B81H-HV | Harmony Electronics Corp / H.ELE. | HSX111S | 24 MHz | ±10ppm | 8pF | - |
| X2C048000L71HH-CEHZ | Harmony Electronics Corp / H.ELE. | HSX211S | 48 MHz | ±8ppm | 11.1pF | - |
| X2R026000BZ1HAZ-DHPZ | Harmony Electronics Corp / H.ELE. | HSX221SR | 26 MHz | ±10ppm | 7pF | -30°C ~ 105°C |
| X1R038400B81HA-CEHPZ | Harmony Electronics Corp / H.ELE. | HSX111SR | 38.4 MHz | - | 8pF | - |
| X2U026000B81HBZ-DHPZ | Harmony Electronics Corp / H.ELE. | HSX211SR | 26 MHz | ±10ppm | 8pF | -40°C ~ 105°C |
| X2R026000B91HZ-DEHPZ | Harmony Electronics Corp / H.ELE. | HSX221SR | 26 MHz | ±10ppm | 9pF | -30°C ~ 85°C |
| X2R019200BZ1H-CHZ | Harmony Electronics Corp / H.ELE. | HSX221SR | 19.2 MHz | ±10ppm | 7pF | -30°C ~ 85°C |
| X2U019200BZ1H-CEHQZ | Harmony Electronics Corp / H.ELE. | HSX211SR | 19.2 MHz | ±10ppm | 7pF | -40°C ~ 105°C |
| X2U038400B81H-EPQZ | Harmony Electronics Corp / H.ELE. | HSX211SR | 38.4 MHz | ±10ppm | 8pF | -30°C ~ 85°C |
| X1R052000B81HZ-DEHPZ | Harmony Electronics Corp / H.ELE. | HSX111SR | 52 MHz | - | 8pF | -40°C ~ 105°C |
| X12A040000BZ1H-HZ | Harmony Electronics Corp / H.ELE. | HSX1210A | 40 MHz | ±12ppm | 6pF | -20°C ~ 85°C |
