2016陶瓷贴片晶振,XRCPB24M000F0L00R0,日本村田晶振

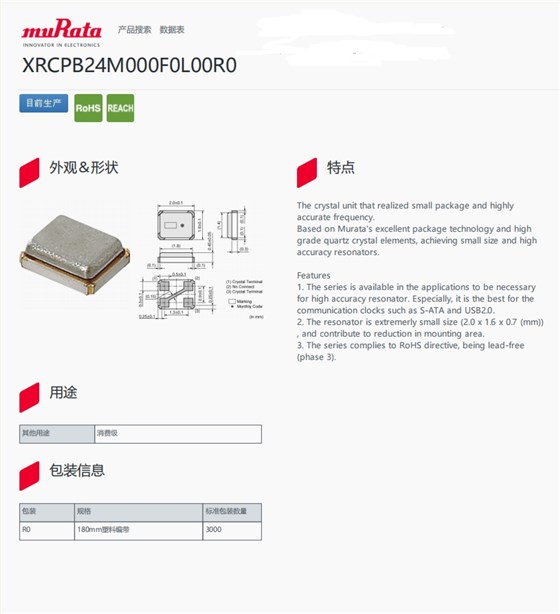

2016陶瓷贴片晶振,XRCPB24M000F0L00R0,日本村田晶振 ，编码：XRCPB24M000F0L00R0，型号：XRCPB，工作温度：-30°C ~ 85°C，尺寸：2.0mm*1.6mm，频率：24MHz，精度：±100ppm，负载电容：6pF，进口晶振，muRata谐振器，2016晶振，石英晶谐振器，贴片晶振，无源贴片晶振，陶瓷贴片晶振，实现了小封装和高精度的晶体单元频率。基于村田的优秀封装技术和高级石英晶体元件，实现小尺寸和高精密谐振器。特征1.该系列可用于以下应用场合高精度谐振器，特别它是最好的，S-ATA、USB2.0等通信时钟，谐振器的尺寸非常小，并有助于减少安装面积，该系列符合RoHS指令，是无铅的。

2016陶瓷贴片晶振,XRCPB24M000F0L00R0,日本村田晶振，编码：XRCPB24M000F0L00R0，型号：XRCPB，工作温度：-30°C ~ 85°C，尺寸：2.0mm*1.6mm，频率：24MHz，精度：±100ppm，负载电容：6pF，进口晶振，muRata谐振器，2016晶振，石英晶谐振器，贴片晶振，无源贴片晶振，陶瓷贴片晶振，实现了小封装和高精度的晶体单元频率。基于村田的优秀封装技术和高级石英晶体元件，实现小尺寸和高精密谐振器。特征1.该系列可用于以下应用场合高精度谐振器，特别它是最好的，S-ATA、USB2.0等通信时钟，谐振器的尺寸非常小，并有助于减少安装面积，该系列符合RoHS指令，是无铅的。

Mfr Part #	贴片晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
XRCPB26M000F2P00R0	Murata Electronics	XRCPB	26 MHz	±20ppm	6pF	-30°C ~ 85°C
XRCPB24M000F0Z00R0	Murata Electronics	XRCPB	24 MHz	±100ppm	6pF	-40°C ~ 105°C
XRCPB24M000F2P00R0	Murata Electronics	XRCPB	24 MHz	±20ppm	6pF	-30°C ~ 85°C
XRCPB24M576F0L00R0	Murata Electronics	XRCPB	24.576 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB25M000F0Z00R0	Murata Electronics	XRCPB	25 MHz	±100ppm	6pF	-40°C ~ 105°C
XRCPB25M000F3M00R0	Murata Electronics	XRCPB	25 MHz	±30ppm	6pF	-30°C ~ 85°C
XRCPB27M000F2P00R0	Murata Electronics	XRCPB	27 MHz	±20ppm	6pF	-30°C ~ 85°C
XRCPB32M000F0L00R0	Murata Electronics	XRCPB	32 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB40M000F0L00R0	Murata Electronics	XRCPB	40 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB48M000F4M00R0	Murata Electronics	XRCPB	48 MHz	±45ppm	6pF	-30°C ~ 85°C
XRCPB24M000F0L00R0	Murata Electronics	XRCPB	24 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB24M000F3N00R0	Murata Electronics	XRCPB	24 MHz	±30ppm	6pF	-20°C ~ 85°C
XRCPB24M576F0Z00R0	Murata Electronics	XRCPB	24.576 MHz	±100ppm	6pF	-40°C ~ 105°C
XRCPB25M000F0L00R0	Murata Electronics	XRCPB	25 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB25M000F2P00R0	Murata Electronics	XRCPB	25 MHz	±20ppm	6pF	-30°C ~ 85°C
XRCPB26M000F0L00R0	Murata Electronics	XRCPB	26 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB26M000F0Z00R0	Murata Electronics	XRCPB	26 MHz	±100ppm	6pF	-40°C ~ 105°C
XRCPB26M000F3N00R0	Murata Electronics	XRCPB	26 MHz	±30ppm	6pF	-20°C ~ 85°C
XRCPB27M000F0L00R0	Murata Electronics	XRCPB	27 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB27M120F0L00R0	Murata Electronics	XRCPB	27.12 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB27M120F2P00R0	Murata Electronics	XRCPB	27.12 MHz	±20ppm	6pF	-30°C ~ 85°C
XRCPB30M000F0L00R0	Murata Electronics	XRCPB	30 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB30M000F0Z00R0	Murata Electronics	XRCPB	30 MHz	±100ppm	6pF	-40°C ~ 105°C
