XRCTD32M000N1P1AR0,1210晶振,陶瓷村田晶振

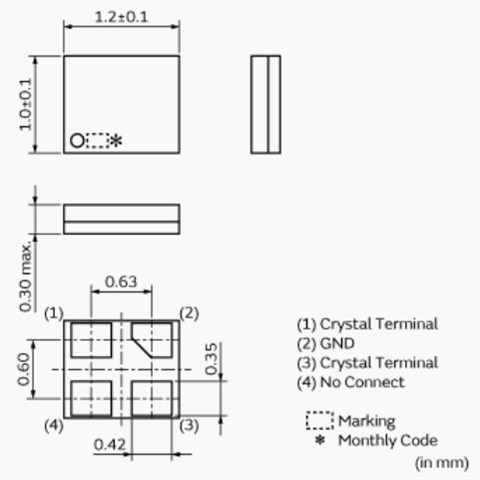

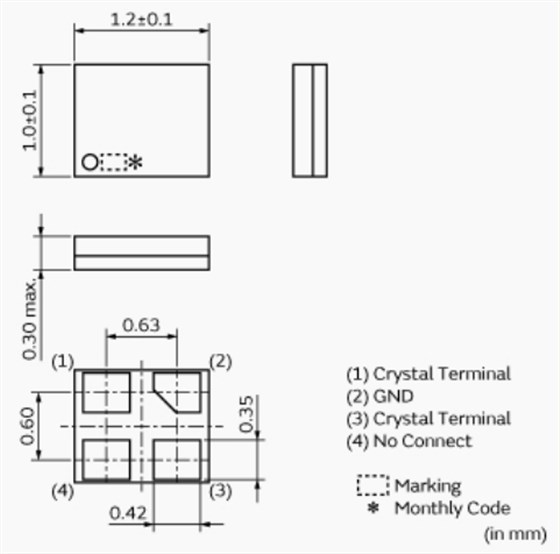

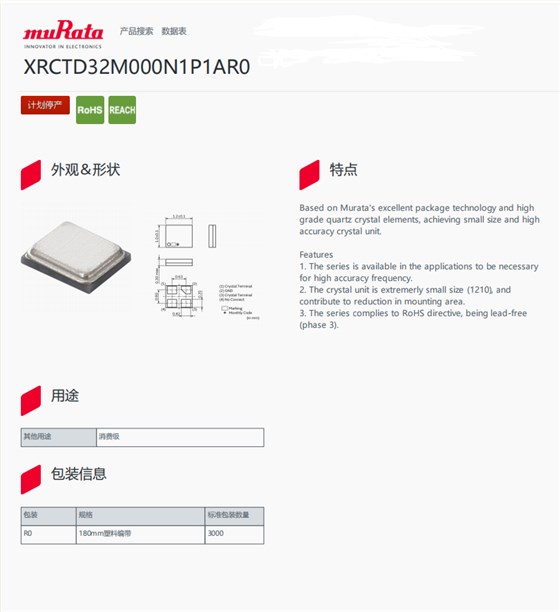

XRCTD32M000N1P1AR0,1210晶振,陶瓷村田晶振 ，编码：XRCTD32M000N1P1AR0，型号：XRCTD，工作温度：-30°C ~ 85°C，尺寸：1.2mm*1.0mm，频率：32 MHz，精度：±10ppm，负载电容：6pF，小型贴片晶振1210，进口晶振，陶瓷村田晶振，贴片晶体，于村田的优秀封装技术和高级石英晶体元件，实现小尺寸和高精度晶体单元，特征：该系列可用于必要的应用，用于高精度频率，.晶体单元尺寸极小（1210），并且有助于减少安装面积，该系列符合RoHS指令，不含铅。

XRCTD32M000N1P1AR0,1210晶振,陶瓷村田晶振，编码：XRCTD32M000N1P1AR0，型号：XRCTD，工作温度：-30°C ~ 85°C，尺寸：1.2mm*1.0mm，频率：32 MHz，精度：±10ppm，负载电容：6pF，小型贴片晶振1210，进口晶振，陶瓷村田晶振，贴片晶体，于村田的优秀封装技术和高级石英晶体元件，实现小尺寸和高精度晶体单元，特征：该系列可用于必要的应用，用于高精度频率，.晶体单元尺寸极小（1210），并且有助于减少安装面积，该系列符合RoHS指令，不含铅。

Mfr Part #	贴片晶体	Series	Frequency	Frequency Stability	Frequency Tolerance	Load Capacitance
XRCPB26M000F2P00R0	Murata Electronics	XRCPB	26 MHz	±20ppm	±20ppm	6pF
XRCTD32M000N1P1AR0	Murata Electronics	XRCTD	32 MHz	±20ppm	±10ppm	6pF
XRCMD32M000FXP53R0	Murata Electronics	XRCMD	32 MHz	±20ppm	±30ppm	6pF
XRCPB24M000F0Z00R0	Murata Electronics	XRCPB	24 MHz	±100ppm	±100ppm	6pF
XRCPB24M000F2P00R0	Murata Electronics	XRCPB	24 MHz	±20ppm	±20ppm	6pF
XRCPB24M576F0L00R0	Murata Electronics	XRCPB	24.576 MHz	±50ppm	±100ppm	6pF
XRCPB25M000F0Z00R0	Murata Electronics	XRCPB	25 MHz	±100ppm	±100ppm	6pF
XRCPB25M000F3M00R0	Murata Electronics	XRCPB	25 MHz	±40ppm	±30ppm	6pF
XRCPB27M000F2P00R0	Murata Electronics	XRCPB	27 MHz	±20ppm	±20ppm	6pF
XRCPB32M000F0L00R0	Murata Electronics	XRCPB	32 MHz	±50ppm	±100ppm	6pF
XRCPB40M000F0L00R0	Murata Electronics	XRCPB	40 MHz	±50ppm	±100ppm	6pF
XRCPB48M000F4M00R0	Murata Electronics	XRCPB	48 MHz	±40ppm	±45ppm	6pF
XRCPB24M000F0L00R0	Murata Electronics	XRCPB	24 MHz	±50ppm	±100ppm	6pF
XRCPB24M000F3N00R0	Murata Electronics	XRCPB	24 MHz	±30ppm	±30ppm	6pF
XRCPB24M576F0Z00R0	Murata Electronics	XRCPB	24.576 MHz	±100ppm	±100ppm	6pF
XRCPB25M000F0L00R0	Murata Electronics	XRCPB	25 MHz	±50ppm	±100ppm	6pF
XRCPB25M000F2P00R0	Murata Electronics	XRCPB	25 MHz	±20ppm	±20ppm	6pF
XRCPB26M000F0L00R0	Murata Electronics	XRCPB	26 MHz	±50ppm	±100ppm	6pF
XRCPB26M000F0Z00R0	Murata Electronics	XRCPB	26 MHz	±100ppm	±100ppm	6pF
XRCPB26M000F3N00R0	Murata Electronics	XRCPB	26 MHz	±30ppm	±30ppm	6pF
XRCPB27M000F0L00R0	Murata Electronics	XRCPB	27 MHz	±50ppm	±100ppm	6pF
XRCPB27M120F0L00R0	Murata Electronics	XRCPB	27.12 MHz	±50ppm	±100ppm	6pF
XRCPB27M120F2P00R0	Murata Electronics	XRCPB	27.12 MHz	±20ppm	±20ppm	6pF
XRCPB30M000F0L00R0	Murata Electronics	XRCPB	30 MHz	±50ppm	±100ppm	6pF
XRCPB30M000F0Z00R0	Murata Electronics	XRCPB	30 MHz	±100ppm	±100ppm	6pF
