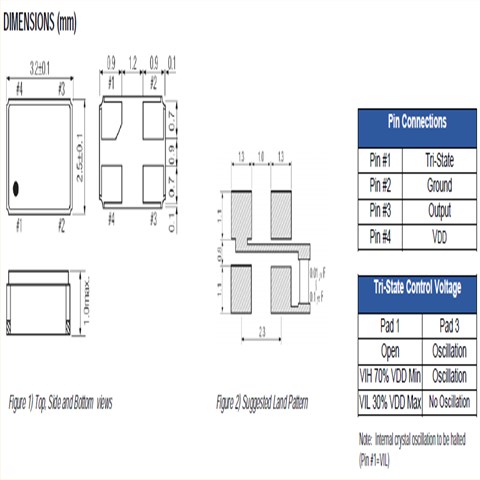

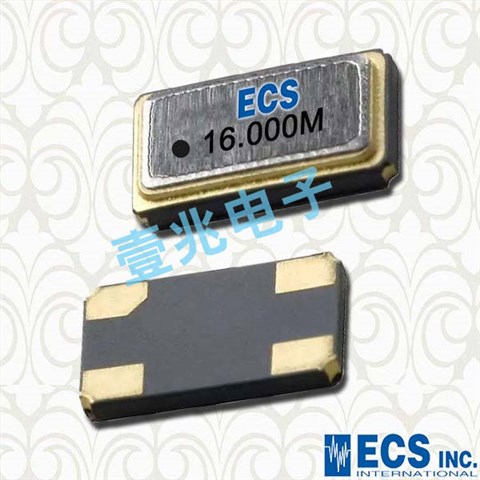

ECS-2333-330-BN-TR,ECS石英晶体振荡器,33MHz晶振，型号：ECS-2333系列晶振，编码为：ECS-2333-160-BN-TR，频率：33MHz,尺寸：3.2*2.5mm,工作温度为：﹣40°C ~ 85°C，ECS-2333 SMD时钟振荡器 ECS-2325（2.5V）和ECS-2333（3.3V）小型贴片石英晶体,外观尺寸具有薄型表面贴片型石英晶体振荡器,特别适用于有小型化要求的市场领域,比如智能手机,无线蓝牙,平板电脑等电子数码产品.晶振本身超小型,薄型,重量轻,晶体具有优良的耐环境特性,如耐热性,耐冲击性,在办公自动化,家电相关电器领域及Bluetooth,WirelessLAN等短距离无线通信领域可发挥优良的电气特性,满足无铅焊接的回流温度曲线要求。.

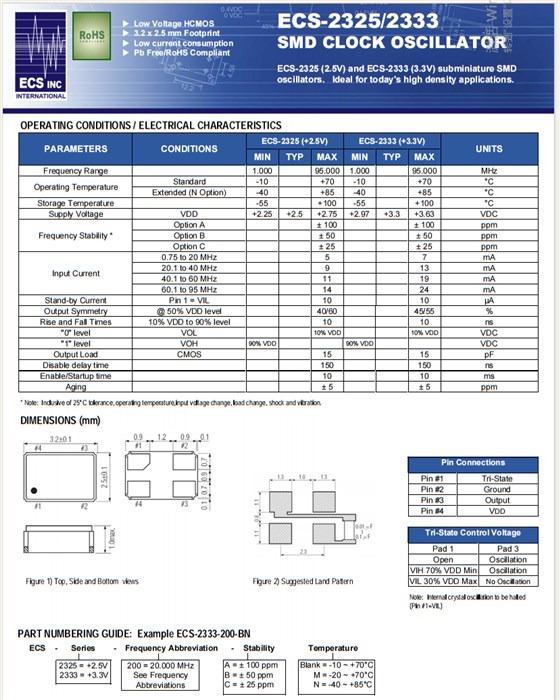

ECS-2333-330-BN-TR,ECS石英晶体振荡器,33MHz晶振，参数表
| PARAMETERS | CONDITIONS | ECS-2333 (+3.3V) | UNITS | |||||||||||
| MIN | TYP | MAX | ||||||||||||
| Frequency Range |
|
33 | MHz | |||||||||||
| Operating Temperature | Standard | -10 | +70 | °C | ||||||||||
| Extended (N Option) | -40 | +85 | °C | |||||||||||
| Storage Temperature | -55 | +100 | °C | |||||||||||
| Supply Voltage | VDD | +2.97 | +3.3 | +3.63 | VDC | |||||||||
| Frequency Stability * | Option A | ± 100 | ppm | |||||||||||
| Option B | ± 50 | ppm | ||||||||||||
| Option C | ± 25 | ppm | ||||||||||||
| Input Current | 0.75 to 20 MHz | 7 | mA | |||||||||||
| 20.1 to 40 MHz | 13 | mA | ||||||||||||
| 40.1 to 60 MHz | 19 | mA | ||||||||||||
| 60.1 to 95 MHz | 24 | mA | ||||||||||||
| Stand-by Current | Pin 1 = VIL | 10 | µA | |||||||||||
| Output Symmetry | @ 50% VDD level | 45/55 | % | |||||||||||
| Rise and Fall Times | 10% VDD to 90% level | 10 | ns | |||||||||||
| "0" level | VOL | 10% VDD | VDC | |||||||||||
| "1" level | VOH | 90% VDD | VDC | |||||||||||
| Output Load | CMOS | 15 | pF | |||||||||||
| Disable delay time | 150 | ns | ||||||||||||
| Enable/Startup time | 10 | ms | ||||||||||||
| Aging | ± 5 | ppm | ||||||||||||
| Manufacturer Part Number原厂代码 | ECS crystal晶振 | Series型号 | Frequency 频率 | Operating Temperature工作温度 |
| ECS-2333-270-BN-TR | ECS 晶振 | ECS-2333 | 27MHz | -40°C ~ 85°C |
| ECS-2333-270-BN-TR | ECS 晶振 | ECS-2333 | 27MHz | -40°C ~ 85°C |
| ECS-2333-270-BN-TR | ECS 晶振 | ECS-2333 | 27MHz | -40°C ~ 85°C |
| ECS-2333-240-BN-TR | ECS 晶振 | ECS-2333 | 24MHz | -40°C ~ 85°C |
| ECS-2333-240-BN-TR | ECS 晶振 | ECS-2333 | 24MHz | -40°C ~ 85°C |
| ECS-2333-240-BN-TR | ECS 晶振 | ECS-2333 | 24MHz | -40°C ~ 85°C |
| ECS-2333-100-BN-TR | ECS 晶振 | ECS-2333 | 10MHz | -40°C ~ 85°C |
| ECS-2333-100-BN-TR | ECS 晶振 | ECS-2333 | 10MHz | -40°C ~ 85°C |
| ECS-2333-100-BN-TR | ECS 晶振 | ECS-2333 | 10MHz | -40°C ~ 85°C |
| ECS-2333-160-BN-TR | ECS 晶振 | ECS-2333 | 16MHz | -40°C ~ 85°C |
| ECS-2333-160-BN-TR | ECS 晶振 | ECS-2333 | 16MHz | -40°C ~ 85°C |
| ECS-2333-160-BN-TR | ECS 晶振 | ECS-2333 | 16MHz | -40°C ~ 85°C |
| ECS-2333-330-BN-TR | ECS 晶振 | ECS-2333 | 33MHz | -40°C ~ 85°C |
| ECS-2333-330-BN-TR | ECS 晶振 | ECS-2333 | 33MHz | -40°C ~ 85°C |
| ECS-2333-330-BN-TR | ECS 晶振 | ECS-2333 | 33MHz | -40°C ~ 85°C |
| ECS-2333-200-BN-TR | ECS 晶振 | ECS-2333 | 20MHz | -40°C ~ 85°C |
| ECS-2333-200-BN-TR | ECS 晶振 | ECS-2333 | 20MHz | -40°C ~ 85°C |
| ECS-2333-200-BN-TR | ECS 晶振 | ECS-2333 | 20MHz | -40°C ~ 85°C |
| ECS-2333-333.3-BN-TR | ECS 晶振 | ECS-2333 | 33.333MHz | -40°C ~ 85°C |
| ECS-2333-333.3-BN-TR | ECS 晶振 | ECS-2333 | 33.333MHz | -40°C ~ 85°C |
