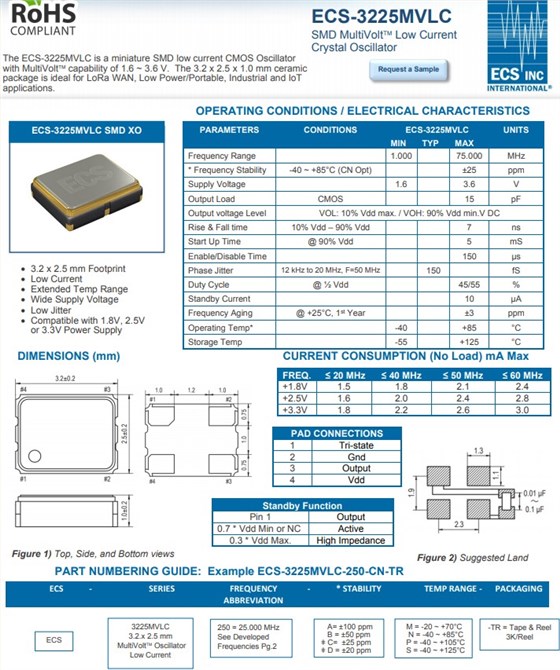

ECS的ECS-3225MVLC系列是HCMOS表面贴装晶体振荡器，采用陶瓷3.2x2.5x1.0mm行业标准封装，四脚贴片晶振，有源晶振，这些振荡器具有MultiVolt 功能，可在与+1.8V、+2.5V、+3.0V或+3.3V兼容的电源上运行。它们还提供最大1.5mA 的低电流消耗。（无负载）在1.8V 20MHz。ECS-3225MVLC具有1MHz至75MHz的频率范围和10µA的低待机电流。它们在-40℃至+85℃的标准温度范围内提供±25ppm的稳定性，并提供扩展的温度范围。
HCMOS表面贴装晶体振荡器ECS的ECS-3225MVLC非常适合物联网应用
| 原厂代码 | 品牌 | 贴片晶振 | 频率 | 工作温度 |
| ECS-3225S33-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECScrystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECScrystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECScrystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECScrystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECScrystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECScrystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECScrystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECScrystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECScrystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECScrystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECScrystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECScrystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECScrystal晶振 | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECScrystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-270-FN-TR | ECScrystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
HCMOS表面贴装晶体振荡器ECS-3225MVLC非常适合物联网应用
特征：
小体积晶振尺寸：3.2x2.5x1.0毫米石英晶体免费供样
频率范围：1MHz～75MHz
低电流待机：10 µA
稳定性：-40℃至+85℃时±25ppm，-40℃至+125℃可扩展温度范围
与 +1.8V、+2.5V、+3.0V或 +3.3V 电源兼容
低抖动：<150 fs（典型值）
符合 RoHS 和 REACH 标准
应用：洛拉广域网，低功耗/便携，工业的，物联网
