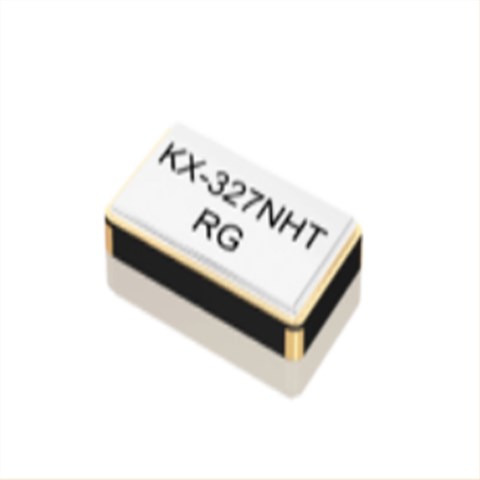

石英水晶振,12.87143 KX-327NHT晶振,格耶厂家晶振

石英水晶振,12.87143 KX-327NHT晶振,格耶厂家晶，公差:±20 ppm，工作温度：-40°C~+85°C，储存温度范围：-55°C~+125°C，尺寸：3.2mmx1.5mm，频率：32.768KHz，石英晶振，两脚贴片晶振，无源晶振，表贴式晶振，晶体谐振器，具有：耐高温，耐损耗，高精度，高质量等特点，应用于：车载导航，局域网，无线局域网，蓝牙模块晶振，医疗设备，ISM频带收音机，平板电脑，数码电子等应用。

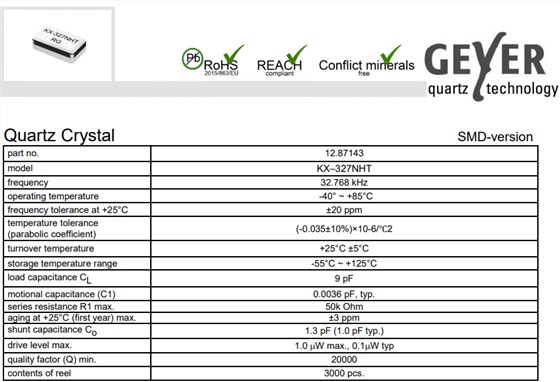

石英水晶振,12.87143 KX-327NHT晶振,格耶厂家晶，参数表

part no.	12.87143
modelSMD晶体振荡器	KX–327NHT
frequency	32.768 kHz
operating temperature	-40° ~ +85°C
frequency tolerance at +25°C	±20 ppm
temperature tolerance (parabolic coefficient)	(-0.035± 10%)×10-6/℃2
turnover temperature	+25°C ±5°C
storage temperature range	-55°C ~ +125°C
load capacitance CL	9 pF
motional capacitance (C1)	0.0036 pF, typ.
series resistance R1 max.	50k Ohm
aging at +25°C (first year) max.	±3 ppm
shunt capacitance Co	1.3 pF ( 1.0 pF typ.)
drive level max.	1.0山W max., 0.1山W typ
quality factor (Q) min.	20000
contents of reel	3000 pcs.

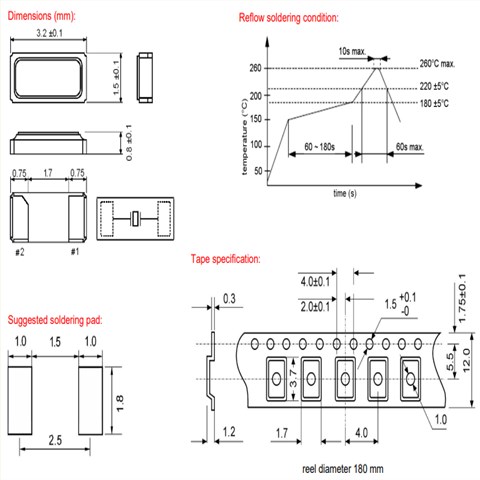

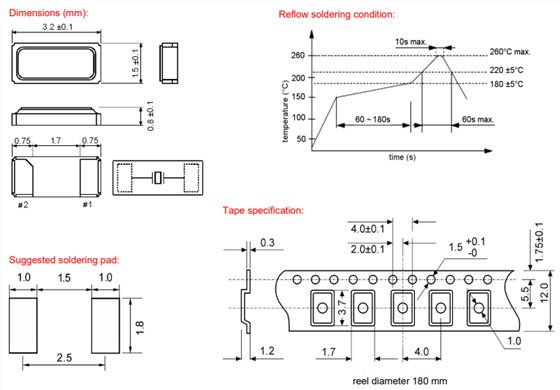

石英水晶振,12.87143 KX-327NHT晶振,格耶厂家晶，尺寸图

KX-327NHT

原厂编码	供应商	描述	型号	标准频率	频率容差	频率稳定性	工作温度范围
12.85536	Geyer 晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5T	40 MHz	±20ppm	±10ppm	-40°C ~ 85°C
12.84816	Geyer 晶振	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.88722	Geyer 晶振	Crystal 16.0Mhz SMD KX-7T 12pF,	KX-7T	16 MHz	±25ppm	±10ppm	-20°C ~ 70°C
12.84805	Geyer 晶振	Crystal 27.120MHz 8pF SMD	KX-4	27.12 MHz	±30ppm	±30ppm	-40°C ~ 85°C
12.86509	Geyer 晶振	Cystal 48.0Mhz 10pF SMD	KX-6	48 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.8902	Geyer 晶振	Crystal 32.0Mhz SMD KX-9A 16pF,	KX-9A	32 MHz	±10ppm	±30ppm	-20°C ~ 70°C
12.84813	Geyer 晶振	Crystal 27.120MHz 8pF SMD	KX-4	27.12 MHz	±15ppm	±10ppm	-40°C ~ 85°C
12.60233	Geyer 晶振	CRYSTAL 25.0MHZ 12PF SMD	KX-7T	25 MHz	±20ppm	±20ppm	-40°C ~ 85°C
12.85515	Geyer 晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5	27 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.86544	Geyer 晶振	Crystal 16.0Mhz 10pF SMD	KX-7E	24 MHz	±120ppm	±30ppm	-40°C ~ 105°C
12.85547	Geyer 晶振	CYSTAL 26.0MHZ 8PF SMD	KX-5T	26 MHz	±20ppm	±10ppm	-40°C ~ 85°C
12.8919	Geyer 晶振	Crystal 8.0Mhz SMD KX-9AT 16pF,	KX-9AT	8 MHz	±30ppm	±100ppm	-40°C ~ 85°C
12.85562	Geyer 晶振	CYSTAL 50.0MHZ 8PF SMD	KX-5T	50 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.60208	Geyer 晶振	CRYSTAL 26.0MHZ 8PF SMD	KX-7T	26 MHz	±10ppm	±20ppm	-40°C ~ 85°C
12.86531	Geyer 晶振	Cystal 16.0Mhz 10pF SMD	KX-6T	16 MHz	±100ppm	±30ppm	-40°C ~ 85°C
12.88664	Geyer 晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7	14.31818 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.89495	Geyer 晶振	Crystal 8.0Mhz SMD KX-9BH 8pF, 4	KX-9BH	8 MHz	±50ppm	±50ppm	-20°C ~ 70°C
12.89103	Geyer 晶振	Crystal 10.0Mhz SMD KX-9AE 16pF,	KX-9AE	10 MHz	±50ppm	±30ppm	-40°C ~ 105°C
12.887	Geyer 晶振	Crystal 30.0Mhz 12pF SMD	KX-7	30 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.89131	Geyer 晶振	Crystal 48.0Mhz SMD KX-9AT 16pF,	KX-9AT	48 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.86512	Geyer 晶振	Cystal 20.0Mhz 10pF SMD	KX-6	20 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.89126	Geyer 晶振	Crystal 13.560Mhz SMD KX-9AE 16p	KX-9A	13.56 MHz	±120ppm	±30ppm	-40°C ~ 105°C
12.8655	Geyer 晶振	Crystal 16.0Mhz 10pF SMD	KX-6E	16 MHz	±150ppm	±30ppm	-40°C ~ 105°C
12.86526	Geyer 晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±20ppm	±10ppm	-40°C ~ 85°C
12.6009	Geyer 晶振	CRYSTAL 24.0MHZ 12PF SMD	KX-7T	24 MHz	±20ppm	±20ppm	-40°C ~ 85°C
12.88701	Geyer 晶振	Crystal 40.0Mhz 12pF SMD	KX-7T	40 MHz	±100ppm	±30ppm	-40°C ~ 85°C
12.88493	Geyer 晶振	Crystal 33.33Mhz SMD KX-7T 12pF,	KX-7T	33.33333 MHz	±100ppm	±30ppm	-40°C ~ 85°C
12.85521	Geyer 晶振	CYSTAL 26.0MHZ 10PF SMD	KX-5T	26 MHz	±20ppm	±10ppm	-40°C ~ 85°C
12.89078	Geyer 晶振	Crystal 27.0Mhz SMD KX-9AT 16pF,	KX-9AT	27 MHz	±150ppm	±30ppm	-40°C ~ 85°C
12.86517	Geyer 晶振	Cystal 24.0Mhz 10pF SMD	KX-6	24 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.84812	Geyer 晶振	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.88508	Geyer 晶振	Crystal 24.0Mhz 12pF SMD	KX-7T	24 MHz	±50ppm	±20ppm	-40°C ~ 85°C
12.88711	Geyer 晶振	Crystal 25.0Mhz SMD KX-7T 12pF,	KX-7T	25 MHz	±30ppm	±30ppm	-40°C ~ 85°C
12.85519	Geyer 晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5T	20 MHz	±50ppm	±20ppm	-40°C ~ 85°C
12.89027	Geyer 晶振	Crystal 25.0Mhz SMD KX-9A 16pF,	KX-9A	25 MHz	±30ppm	±30ppm	-20°C ~ 70°C
12.85539	Geyer 晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5T	48 MHz	±20ppm	±10ppm	-40°C ~ 85°C
12.88721	Geyer 晶振	Crystal 16.0Mhz 12pF SMD	KX-7T	16 MHz	±30ppm	±30ppm	-20°C ~ 70°C
12.88667	Geyer 晶振	Crystal 25.0Mhz SMD KX-7 12pF, 4	KX-7	25 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.85517	Geyer 晶振	CYSTAL 54.0MHZ 8PF SMD	KX-5T	54 MHz	±100ppm	±30ppm	-40°C ~ 85°C
12.89017	Geyer 晶振	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.89082	Geyer 晶振	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.60075	Geyer 晶振	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm	±30ppm	-40°C ~ 125°C
12.89155	Geyer 晶振	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm	±30ppm	-40°C ~ 85°C
12.88522	Geyer 晶振	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.88752	Geyer 晶振	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.85569	Geyer 晶振	CYSTAL 27.120MHZ 8PF SMD	KX-5T	27.12 MHz	±15ppm	±10ppm	-40°C ~ 85°C
12.88565	Geyer 晶振	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.85538	Geyer 晶振	CYSTAL 24.5760MHZ 8PF SMD	KX-5T	24.576 MHz	±100ppm	±30ppm	-40°C ~ 85°C
12.86533	Geyer 晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±100ppm	±30ppm	-40°C ~ 85°C
12.89209	Geyer 晶振	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm	±30ppm	-40°C ~ 105°C
12.8652	Geyer 晶振	Cystal 27.0Mhz 10pF SMD	KX-6	27 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.86574	Geyer 晶振	Crystal 27.0Mhz 8pF SMD	KX-6F	27 MHz	±150ppm	±30ppm	-40°C ~ 125°C
12.85541	Geyer 晶振	CYSTAL 30.0MHZ 8PF SMD	KX-5	30 MHz	±30ppm	±30ppm	-20°C ~ 70°C
12.84818	Geyer 晶振	Crystal 24.0MHz 8pF SMD	KX-4	24 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.86527	Geyer 晶振	Cystal 20.0Mhz 10pF SMD	KX-6T	20 MHz	±15ppm	±10ppm	-40°C ~ 85°C
12.85534	Geyer 晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5T	27 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.86505	Geyer 晶振	Cystal 26.0Mhz 10pF SMD	KX-6	26 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.60024	Geyer 晶振	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm	±30ppm	-40°C ~ 105°C
12.84803	Geyer 晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±20ppm	±10ppm	-40°C ~ 85°C
12.85518	Geyer 晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5E	20 MHz	±50ppm	±30ppm	-40°C ~ 105°C
12.8873	Geyer 晶振	Crystal 26.0Mhz 12pF SMD	KX-7T	26 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.86556	Geyer 晶振	Crystal 40.0Mhz 8pF SMD	KX-6T	40 MHz	±20ppm	±10ppm	-40°C ~ 85°C
12.88643	Geyer 晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7T	14.31818 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.86511	Geyer 晶振	Crystal 18.4320Mhz 10pF SMD	KX-6	18.432 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.88523	Geyer 晶振	Crystal 40.0Mhz 12pF SMD	KX-7F	40 MHz	±50ppm	±30ppm	-40°C ~ 125°C
12.89288	Geyer 晶振	Crystal 24.5760Mhz SMD KX-9AT 20	KX-9AT	24.576 MHz	±30ppm	±20ppm	-40°C ~ 85°C
12.86536	Geyer 晶振	Crystal 14.318180Mhz 10pF SMD	KX-6	14.31818 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.89029	Geyer 晶振	Crystal 27.0Mhz SMD KX-9A 16pF,	KX-9A	27 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.88799	Geyer 晶振	Crystal 12.0Mhz 10pF SMD	KX-7	12 MHz	±30ppm	±30ppm	-20°C ~ 70°C
12.8481	Geyer 晶振	Crystal 48.0MHz 8pF SMD	KX-4	48 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.84814	Geyer 晶振	Crystal 32.0MHz 8pF SMD	KX-4	32 MHz	±15ppm	±10ppm	-40°C ~ 85°C
12.88756	Geyer 晶振	Crystal 10.0Mhz 12pF SMD	KX-7E	26 MHz	±50ppm	±10ppm	-40°C ~ 105°C
12.8556	Geyer 晶振	CYSTAL 16.0MHZ 8PF SMD	KX-5T	16 MHz	±30ppm	±30ppm	-40°C ~ 85°C
12.86561	Geyer 晶振	Crystal 40.0Mhz 10pF SMD	KX-6T	40 MHz	±20ppm	±10ppm	-40°C ~ 85°C
12.8877	Geyer 晶振	Crystal 30.0Mhz 12pF SMD	KX-7T	30 MHz	±10ppm	±10ppm	-25°C ~ 80°C
12.86564	Geyer 晶振	Crystal 14.318180Mhz 10pF SMD	KX-6T	14.31818 MHz	±100ppm	±30ppm	-40°C ~ 85°C
12.86592	Geyer 晶振	Crystal 25.0Mhz SMD KX-6T 12pF,	KX-6T	25 MHz	±20ppm	±10ppm	-40°C ~ 85°C
12.87159	Geyer 晶振	CRYSTAL 32.7680kHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	-40°C ~ 85°C
12.87163	Geyer 晶振	CRYSTAL 32.768KHZ 7PF SMD	KX-327RT	32.768 kHz	-0.036ppm	±20ppm	-40°C ~ 85°C
12.87151	Geyer 晶振	CRYSTAL 32.7680kHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±30ppm	-40°C ~ 85°C
12.8717	Geyer 晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327FT	32.768 kHz	-	±20ppm	-40°C ~ 85°C
12.87148	Geyer 晶振	CRYSTAL 32.7680KHZ 7PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	-40°C ~ 85°C
12.87106	Geyer 晶振	CRYSTAL 32.768KHZ 7PF SMD	KX-327XST	32.768 kHz	±20ppm	±20ppm	-40°C ~ 85°C
12.8716	Geyer 晶振	CYSTAL 32.7680KHZ 12.5PF SMD	KX-327RT	32.768 kHz	±20ppm	±20ppm	-40°C ~ 85°C
12.87143	Geyer 晶振	CRYSTAL 32.768KHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	-40°C ~ 85°C
12.84801	Geyer 晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.8718	Geyer 晶振	Crystal 32.7680kHz 9pF SMD	KX-327NHF	32.768 kHz	-0.03ppm	±20ppm	-40°C ~ 125°C
12.87147	Geyer 晶振	CRYSTAL 32.768KHz 7pF SMD	KX-327NHT	32.768 kHz	-	±10ppm	-40°C ~ 85°C
12.87081	Geyer 晶振	CRYSTAL 32.768KHZ 6PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	-40°C ~ 85°C
12.87149	Geyer 晶振	CRYSTAL 32.7680KHZ 9PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	-40°C ~ 85°C
12.87156	表贴式晶振	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	-40°C ~ 85°C
12.87154	Geyer 晶振	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	-40°C ~ 85°C
12.87174	Geyer 晶振	CRYSTAL 32.768KHz 7pF SMD	KX-327FT	32.768 kHz	-0.036ppm	±20ppm	-40°C ~ 85°C
12.87114	Geyer 晶振	Cystal 32.7680Khz 12.5pF SMD	KX-327ST	32.768 kHz	-0.034ppm, ±0.006ppm	±20ppm	-40°C ~ 85°C
12.8715	Geyer 晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	-40°C ~ 85°C
12.87181	Geyer 晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHF	32.768 kHz	-0.03ppm	±20ppm	-40°C ~ 125°C
12.60023	Geyer 晶振	Cystal 48.0Mhz 12pF SMD	KX-7E	48 MHz	±50ppm	±30ppm	-40°C ~ 105°C
12.85559	Geyer 晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5	40 MHz	±50ppm	±30ppm	-20°C ~ 70°C
