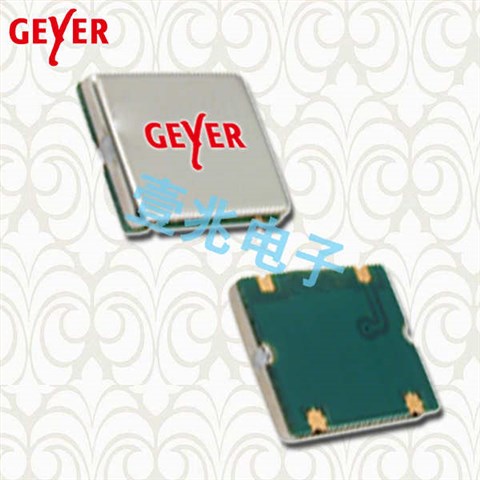

TCXO温补晶体振荡器,12.97001 KXO-85晶振,GEYER有源晶振

TCXO温补晶体振荡器,12.97001 KXO-85晶振,GEYER有源晶振，公差:±1.5 ppm，工作温度：-30°C~+75°C，储存温度范围：-40°C~+85°C，尺寸：11mmx9.6mm，频率：19.66080MHz，TCXO温补晶振，有源晶振，石英晶振，贴片振荡器，无铅环保晶振，具有：高精度，高品质，高质量等特点，应用于：可穿戴智能设备，蓝牙设备，医疗设备，汽车音响，时钟等。

GEYER晶振作为电池和频率的大体积贴片晶振产品生产经验丰富的国际运营专家，我们自然了解对客户至关重要的一切：从最初的咨询到生产和交付的一流质量。高素质的开发和服务团队以及德国的高端生产确保我们在任何时候都能完全满足这一要求。因此，我们公司通过了DIN ISO 9001：2008认证，这几乎是不言而喻的

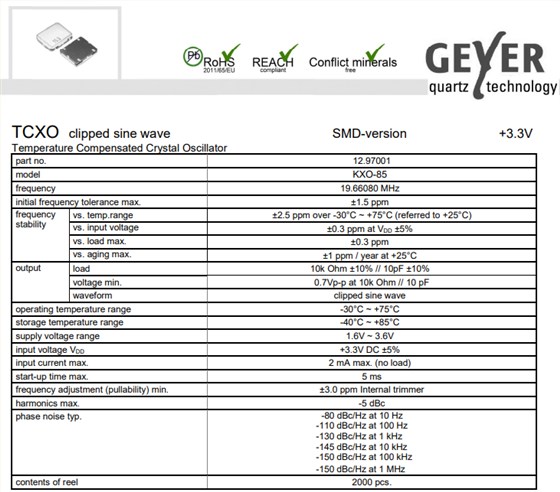

TCXO温补晶体振荡器,12.97001 KXO-85晶振,GEYER有源晶振，参数表

part no.石英晶振 12.97001

model KXO-85

frequency 19.66080 MHz

initial frequency tolerance max. ± 1.5 ppm

frequency

stability
vs. temp.range ±2.5 ppm over -30°C ~ +75°C (referred to +25°C)

vs. input voltage ±0.3 ppm at VDD±5%

vs. load max. ±0.3 ppm

vs. aging max. ± 1 ppm / year at +25°C

output load 10k Ohm ± 10% // 10pF ± 10%

voltage min. 0.7Vp-p at 10k Ohm // 10 pF

waveform clipped sine wave

operating temperature range -30°C ~ +75°C

storage temperature range -40°C ~ +85°C

supply voltage range 1.6V ~ 3.6V

input voltage VDD +3.3V DC ±5%

input current max. 2 mA max. (no load)

start-up time max. 5 ms

frequency adjustment (pullability) min. ±3.0 ppm Internal trimmer

harmonics max. -5 dBc

phase noise typ.
-80 dBc/Hz at 10 Hz

- 110 dBc/Hz at 100 Hz

- 130 dBc/Hz at 1 kHz

- 145 dBc/Hz at 10 kHz

- 150 dBc/Hz at 100 kHz

- 150 dBc/Hz at 1 MHz

contents of reel 2000 pcs.

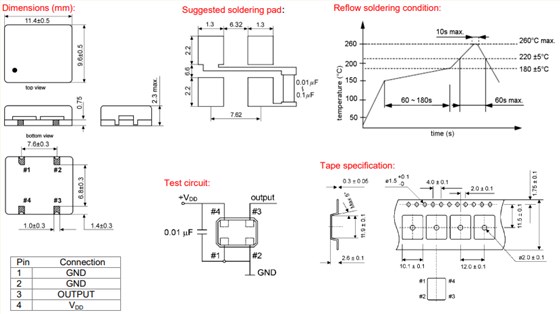

TCXO温补晶体振荡器,12.97001 KXO-85晶振,GEYER有源晶振，尺寸图

KXO-85

编码	晶振厂家	描述	型号	标准频率	频率容差	工作温度
12.95582	Geyer 晶振	XTAL OSC XO 14.7456MHZ SMD	KXO-V95	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95549	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V95T	32 MHz	±50ppm	-40°C ~ 85°C
12.95531	石英晶体振荡器	XTAL OSC XO 3.6864MHZ SMD	KXO-V95T	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90328	Geyer 晶振	XTAL OSC XO 16.0000MHZ CMOS SMD	KXO-V94T	16 MHz	±50ppm	-40°C ~ 85°C
12.90321	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95545	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V95T	20 MHz	±50ppm	-40°C ~ 85°C
12.95103	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V96T	32 MHz	±50ppm	-40°C ~ 85°C
12.9558	Geyer 晶振	XTAL OSC XO 3.579545MHZ SMD	KXO-V95	3.579545 MHz	±50ppm	-20°C ~ 70°C
12.95094	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V96T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95034	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V96T	20 MHz	±50ppm	-40°C ~ 85°C
12.95542	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V95T	12 MHz	±50ppm	-40°C ~ 85°C
12.94474	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V97T	27 MHz	±100ppm	-40°C ~ 85°C
12.90343	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V94T	12 MHz	±50ppm	-40°C ~ 85°C
12.90325	Geyer 晶振	XTAL OSC XO 3.6864MHZ HCMOS SMD	KXO-V94	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90311	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±100ppm	-40°C ~ 85°C
12.95128	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V96E	27 MHz	±50ppm	-40°C ~ 85°C
12.95102	Geyer 晶振	XTAL OSC XO 80.0000MHZ SMD	KXO-V96T	80 MHz	±50ppm	-40°C ~ 85°C
12.90333	Geyer 晶振	XTAL OSC XO 40.0000MHZ SMD	KXO-V94T	40 MHz	±50ppm	-40°C ~ 85°C
12.90337	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V94T	26 MHz	±50ppm	-40°C ~ 85°C
12.94273	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V97T	32 MHz	±100ppm	-40°C ~ 85°C
12.94365	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V97T	14.31818 MHz	±100ppm	-40°C ~ 85°C
12.95546	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V95T	26 MHz	±50ppm	-40°C ~ 85°C
12.92106	Geyer 晶振	XTAL OSC XO 65.0000MHZ SMD	KXO-V97T	65 MHz	±100ppm	-40°C ~ 85°C
12.95571	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V95T	32.768 kHz	±30ppm	-40°C ~ 85°C
12.90344	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V94T	4 MHz	±50ppm	-40°C ~ 85°C
12.95538	Geyer 晶振	XTAL OSC XO 27.1200MHZ SMD	KXO-V95	27.12 MHz	±50ppm	-20°C ~ 70°C
12.94364	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V97T	48 MHz	±100ppm	-40°C ~ 85°C
12.95568	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95F	48 MHz	±50ppm	-40°C ~ 85°C
12.90324	Geyer 晶振	XTAL OSC XO 27.0000MHZ HCMOS SMD	KXO-V94	27 MHz	±50ppm	-40°C ~ 85°C
12.94609	Geyer 晶振	XTAL OSC XO 1.0000MHZ SMD	KXO-V99	1 MHz	±50ppm	-40°C ~ 85°C
12.95101	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V96T	48 MHz	±50ppm	-40°C ~ 85°C
12.92146	Geyer 晶振	XTAL OSC XO 22.1184MHZ SMD	KXO-V97T	22.1184 MHz	±100ppm	-40°C ~ 85°C
12.90327	Geyer 晶振	XTAL OSC XO 48.0000MHZ HCMOS SMD	KXO-V94T	48 MHz	±50ppm	-40°C ~ 85°C
12.95091	Geyer 晶振	XTAL OSC XO 10.0000MHZ SMD	KXO-V96T	10 MHz	±50ppm	-40°C ~ 85°C
12.94449	Geyer 晶振	XTAL OSC XO 18.4320MHZ SMD	KXO-V97T	18.432 MHz	±100ppm	-40°C ~ 85°C
12.94456	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V97T	3.6864 MHz	±100ppm	-40°C ~ 85°C
12.95551	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95T	48 MHz	±50ppm	-40°C ~ 85°C
12.90322	Geyer 晶振	XTAL OSC XO 20.0000MHZ CMOS SMD	KXO-V94T	20 MHz	±50ppm	-40°C ~ 85°C
12.95524	Geyer 晶振	XTAL OSC XO 25.0000MHZ SMD	KXO-V95E	25 MHz	±100ppm	-40°C ~ 85°C
12.9034	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V94T	32.768 kHz	±20ppm	-40°C ~ 85°C
12.95543	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V95T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95104	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V96-18	32.768 kHz	±50ppm	-20°C ~ 70°C
12.94422	Geyer 晶振	XTAL OSC XO 11.0592MHZ SMD	KXO-V97T	11.0592 MHz	±100ppm	-40°C ~ 85°C
12.95548	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V95T	4 MHz	±50ppm	-40°C ~ 85°C
12.90307	Geyer 晶振	XTAL OSC XO 1.8432MHZ HCMOS SMD	KXO-V94	1.8432 MHz	±50ppm	-40°C ~ 85°C
