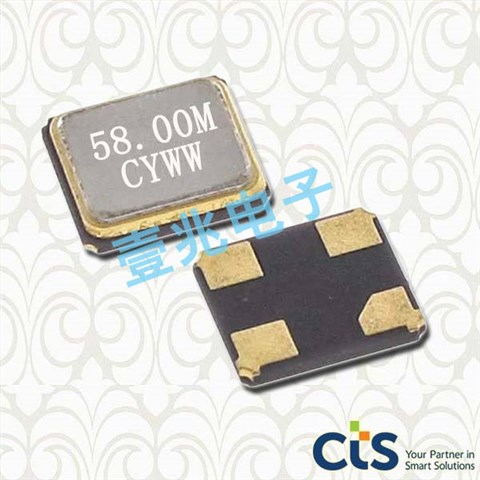

403C35D32M00000美国CTS进口晶振,3225石英贴片晶体

403C35D32M00000美国CTS进口晶振,3225石英贴片晶体，编码：403C35D32M00000，型号：403系列晶振，工作温度：-20°C ~ 70°C，尺寸：3.2*2.5mm，频率：32MHz，负载电容：18pF，精度：±30ppm，石英晶振，CTS晶振，标准3.2毫米x 2.5mm毫米缝焊组件基本晶体设计频率范围为10–60 MHz 频率容差，30ppm标准频率稳定性，30ppm标准工作温度为-40℃至+85℃ 温度和驱动电平下的稳定频率胶带和卷轴包装标准，EIA-481，403型是一种低成本的晶体谐振器，广泛应用于商业领域包括WLAN/WiMax/WiFi、A/V、蓝牙、ZigBee和USB接口、笔记本电脑、计算机外围设备和便携式设备。

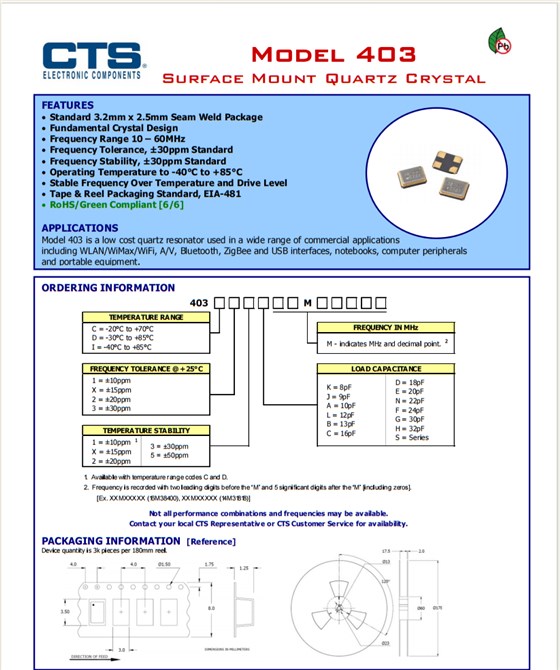

403C35D32M00000美国CTS进口晶振,3225石英贴片晶体，参数表

PARAMETER

VALUE

Frequency Range

10MHz to 60MHz

Operating Mode

Fundamental

Crystal Cut

AT-Cut

Frequency Tolerance @ +25°C

±30ppm, Standard

Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]

±30ppm, Standard

Operating Temperature Ranges

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Equivalent Series Resistance[Maximum]

10MHz - <14MHz

120 Ohms

14MHz - <16MHz

100 Ohms

16MHz - <20MHz

80 Ohms

20MHz - 60MHz

60 Ohms

Load Capacitance

See Ordering Information

Shunt Capacitance[C0]

3.0pF Typical, 5.0pF Maximum

Drive Level

10µW Typ., 200µW Max.

Aging @ +25°C

±3ppm/yr Typical

Insulation Resistance

500M Ohms @ DC 100V

Storage Temperature Range

-40°C to +100°C

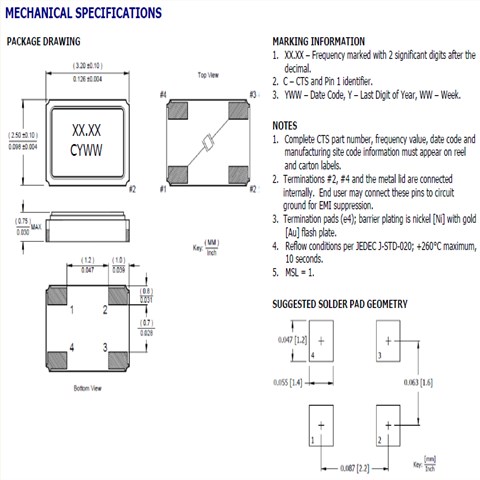

403C35D32M00000美国CTS进口晶振,3225石英贴片晶体，尺寸图

Manufacturer Part Number原厂编码	壹兆晶振厂家	Series型号	Frequency	Frequency Tolerance频率偏差	Load Capacitance负载电容	Operating Temperature工作温度
403C11A32M00000	CTS-Frequency Controls	403	32MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A32M00000	CTS-Frequency Controls	403	32MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A32M00000	CTS-Frequency Controls	403	32MHz	±10ppm	10pF	-20°C ~ 70°C
403C35D25M00000	CTS-Frequency Controls	403	25MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D25M00000	CTS-Frequency Controls	403	25MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D25M00000	CTS-Frequency Controls	403	25MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D12M00000	CTS-Frequency Controls	403	12MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D12M00000	CTS-Frequency Controls	403	12MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D12M00000	CTS-Frequency Controls	403	12MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D24M00000	CTS-Frequency Controls	403	24MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D24M00000	CTS-Frequency Controls	403	24MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D24M00000	CTS-Frequency Controls	403	24MHz	±30ppm	18pF	-20°C ~ 70°C
403C35E13M00000	CTS-Frequency Controls	403	13MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E13M00000	CTS-Frequency Controls	403	13MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E13M00000	CTS-Frequency Controls	403	13MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E27M00000	CTS-Frequency Controls	403	27MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E27M00000	CTS-Frequency Controls	403	27MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E27M00000	CTS-Frequency Controls	403	27MHz	±30ppm	20pF	-20°C ~ 70°C
403C11A16M00000	CTS-Frequency Controls	403	16MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M00000	CTS-Frequency Controls	403	16MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M00000	CTS-Frequency Controls	403	16MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A24M00000	CTS-Frequency Controls	403	24MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A24M00000	CTS-Frequency Controls	403	24MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A24M00000	CTS-Frequency Controls	403	24MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M80000	CTS-Frequency Controls	403	16.8MHz	±10ppm	10pF	-20°C ~ 70°C
