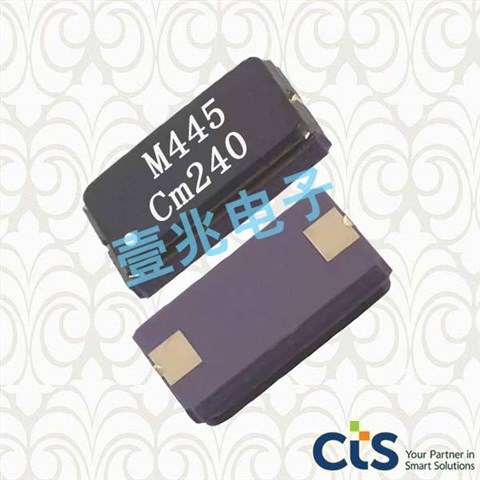

445C35A12M00000,CTS贴片晶体,5032晶振，编码：445C35A12M00000，型号：445系列晶振，工作温度：-20°C ~ 70°C，尺寸：2.5*2.0mm，频率：12MHz，负载电容：10pF，精度：±30ppm，贴片石英晶体，贴片晶振，晶体谐振器，标准5.0毫米x 3.2mm毫米玻璃密封封装
基本晶体设计
频率范围8-50兆赫
频率公差，20ppm标准【其他可用公差】
频率稳定性，30ppm标准【其他稳定性可用】
工作温度为-40℃至+85℃
胶带和卷轴包装标准，EIA-481，445型是一种低成本设备，广泛应用于商业领域，包括
笔记本电脑、计算机外设、视听设备、蓝牙和USB接口、PDA和汽车电子设备。

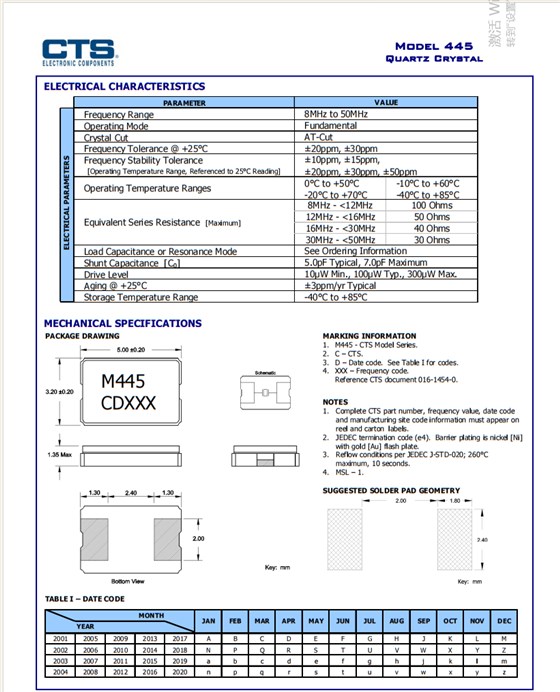

445C35A12M00000,CTS贴片晶体,5032晶振，参数表

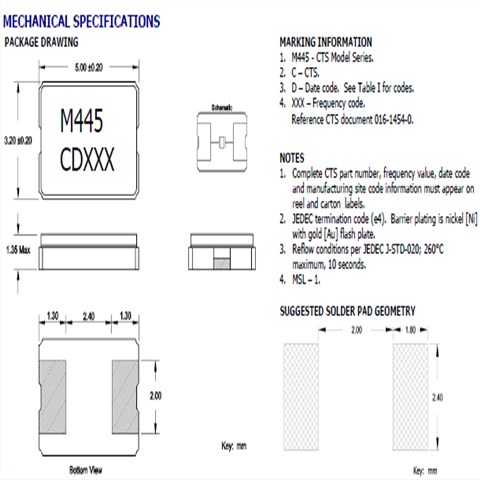

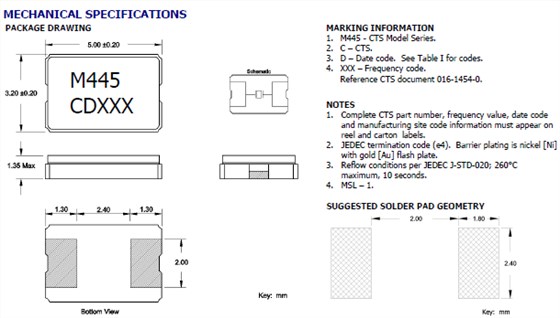

445C35A12M00000,CTS贴片晶体,5032晶振，尺寸图
PARAMETER
VALUE
Frequency Range
8MHz to 50MHz
Operating Mode
Fundamental
Crystal Cut
AT-Cut
Frequency Tolerance @ +25°C
±20ppm, ±30ppm
Frequency Stability Tolerance
[Operating Temperature Range, Referenced to 25°C Reading]
±10ppm, ±15ppm,
±20ppm, ±30ppm, ±50ppm
Operating Temperature Ranges
0°C to +50°C
-20°C to +70°C
-10°C to +60°C
-40°C to +85°C
Equivalent Series Resistance[Maximum]
8MHz - <12MHz
100 Ohms
12MHz - <16MHz
50 Ohms
16MHz - <30MHz
40 Ohms
30MHz - <50MHz
30 Ohms
Load Capacitance or Resonance Mode
See Ordering Information
Shunt Capacitance[C0]
5.0pF Typical, 7.0pF Maximum
Drive Level
10µW Min., 100µW Typ., 300µW Max.
Aging @ +25°C
±3ppm/yr Typical
Storage Temperature Range
-40°C to +85°C
| Manufacturer Part Number原厂编码 |
西迪斯Oscillator |
Series型号 | Frequency | Frequency Tolerance频率偏差 | Load Capacitance负载电容 | Operating Temperature工作温度 |
| 445C35A12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±30ppm | 10pF | -20°C ~ 70°C |
| 445C35A12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±30ppm | 10pF | -20°C ~ 70°C |
| 445C35A12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±30ppm | 10pF | -20°C ~ 70°C |
| 445C25D25M00000 | CTS-Frequency Controls | 445 | 25MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D25M00000 | CTS-Frequency Controls | 445 | 25MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D25M00000 | CTS-Frequency Controls | 445 | 25MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D24M00000 | CTS-Frequency Controls | 445 | 24MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D24M00000 | CTS-Frequency Controls | 445 | 24MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D24M00000 | CTS-Frequency Controls | 445 | 24MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D20M00000 | CTS-Frequency Controls | 445 | 20MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D20M00000 | CTS-Frequency Controls | 445 | 20MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D20M00000 | CTS-Frequency Controls | 445 | 20MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D27M00000 | CTS-Frequency Controls | 445 | 27MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D27M00000 | CTS-Frequency Controls | 445 | 27MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445C25D27M00000 | CTS-Frequency Controls | 445 | 27MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| 445I23D12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±20ppm | 18pF | -40°C ~ 85°C |
| 445I23D12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±20ppm | 18pF | -40°C ~ 85°C |
