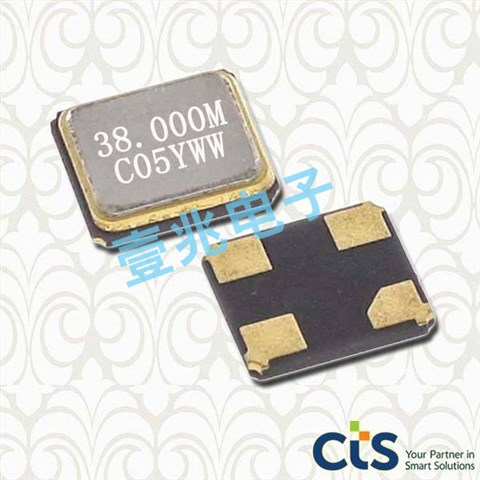

CTS贴片晶振,405C35B25M00000,5032石英晶振，编码：405C35B25M00000，型号：405系列晶振，工作温度：-20°C ~ 70°C，尺寸：5.0*3.2mm，频率：25MHz，负载电容：13pF，精度：±30ppm，CTS晶振，美国进口晶振，标准5.0毫米x 3.2mm毫米缝焊组件

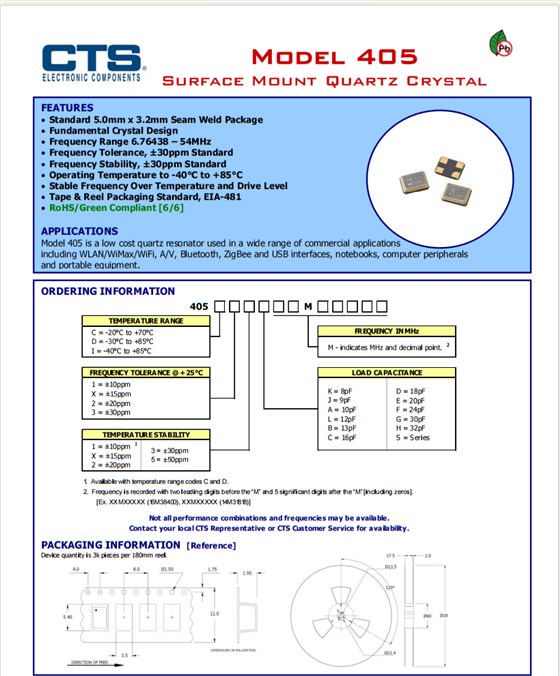

基本晶体设计
频率范围6.76438–54 MHz
频率容差，30ppm标准
频率稳定性，30ppm标准
工作温度为-40℃至+85℃
温度和驱动电平下的稳定频率
胶带和卷轴包装标准，EIA-481，405型是一种低成本的石英谐振器，广泛应用于商业领域
包括WLAN/WiMax/WiFi、A/V、蓝牙、ZigBee和USB接口、笔记本电脑、计算机外围设备
和便携式设备。
CTS贴片晶振,405C35B25M00000,5032石英晶振，参数表
| PARAMETER | VALUE | ||||||||||||
| Frequency Range | 6.76438MHz to 54MHz | ||||||||||||
| Operating Mode | Fundamental | ||||||||||||
| Crystal Cut | AT-Cut | ||||||||||||
| Frequency Tolerance @ +25°C | ±30ppm, Standard | ||||||||||||
|
Frequency Stability Tolerance [Operating Temperature Range, Referenced to +25°C Reading] |
±30ppm, Standard | ||||||||||||
| Operating Temperature Ranges | -20°C to +70°C | ||||||||||||
| -30°C to +85°C | -40°C to +85°C | ||||||||||||
| Equivalent Series Resistance [Maximum] | 6.76438MHz - <11MHz | 80 Ohms | |||||||||||
| 11MHz - <15MHz | 60 Ohms | ||||||||||||
| 15MHz - <35MHz | 50 Ohms | ||||||||||||
| 35MHz - 54MHz | 40 Ohms | ||||||||||||
| Load Capacitance | See Ordering Information | ||||||||||||
| Shunt Capacitance [C0] | 5.0pF Typical, 7.0pF Maximum | ||||||||||||
| Drive Level | 10µW Typ., 200µW Max. | ||||||||||||
| Aging @ +25°C | ±3ppm/yr Typical | ||||||||||||
| Insulation Resistance | 500M Ohms @ DC 100V | ||||||||||||
| Storage Temperature Range | -40°C to +100°C | ||||||||||||
| Manufacturer Part Number原厂编码 | 晶振厂家 | Series型号 | Frequency | Frequency Tolerance频率偏差 | Load Capacitance负载电容 | Operating Temperature 工作温度 |
| 405C35B16M00000 | CTS-Frequency Controls | 405 | 16MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B16M00000 | CTS-Frequency Controls | 405 | 16MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B16M00000 | CTS-Frequency Controls | 405 | 16MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405I35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| 405I35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| 405I35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| 405C35B25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405I35D25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| 405I35D25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| 405I35D25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| 405C35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| 405C35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| 405C35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| 405C35B12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B24M00000 | CTS-Frequency Controls | 405 | 24MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B24M00000 | CTS-Frequency Controls | 405 | 24MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B24M00000 | CTS-Frequency Controls | 405 | 24MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35D27M00000 | CTS-Frequency Controls | 405 | 27MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| 405C35D27M00000 | CTS-Frequency Controls | 405 | 27MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| 405C35D27M00000 | CTS-Frequency Controls | 405 | 27MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| 405C35B16M36800 | CTS-Frequency Controls | 405 | 16.368MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B16M36800 | CTS-Frequency Controls | 405 | 16.368MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B16M36800 | CTS-Frequency Controls | 405 | 16.368MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 405C35B19M20000 | CTS-Frequency Controls | 405 | 19.2MHz | ±30ppm | 13pF | -20°C ~ 70°C |
