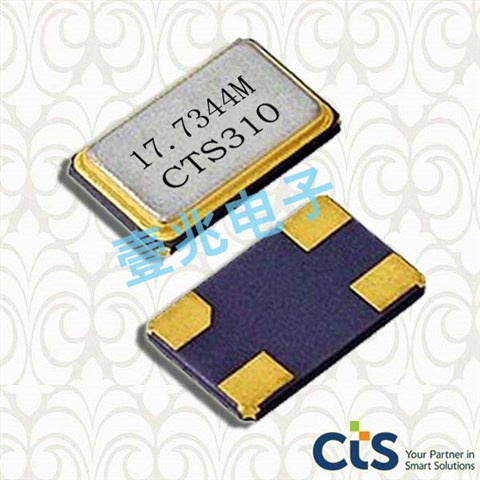

406C35B12M28800,6035陶瓷晶振,CTS贴片晶振

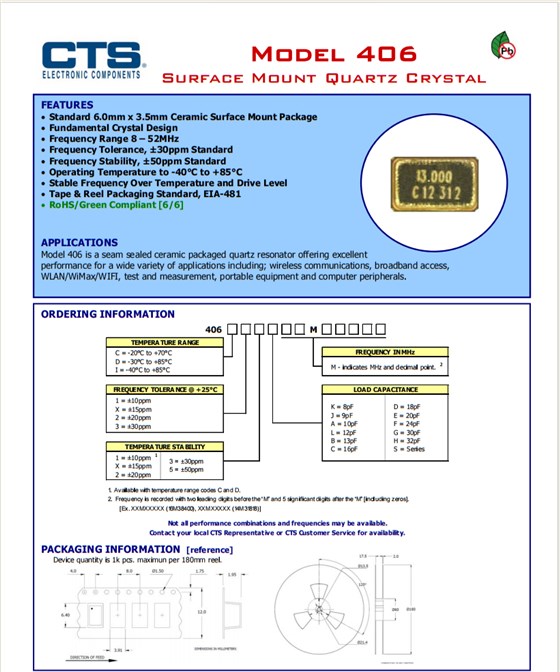

406C35B12M28800,6035陶瓷晶振,CTS贴片晶振，编码：406C35B12M28800，型号：406系列晶振，工作温度：-20°C ~ 70°C，尺寸：6.0*3.5mm，频率：12.288MHz，负载电容：13pF，精度：±30ppm，SMD陶瓷晶体，美国进口晶振，标准6.0毫米x 3.5mm毫米陶瓷表贴封装基本晶体设计频率范围为8-52兆赫频率容差，30ppm标准频率稳定性，50ppm标准工作温度为-40℃至+85℃ 温度和驱动电平下的稳定频率胶带和卷轴包装标准，EIA-481，406型是一种接缝密封陶瓷封装石英谐振器，具有出色的各种应用的性能，包括:无线通信，宽带接入， WLAN/WiMax/WIFI、测试和测量、便携式设备和计算机外设。

406C35B12M28800,6035陶瓷晶振,CTS贴片晶振，参数表

PARAMETER

VALUE

Frequency Range

8MHz to 52MHz

Operating Mode

Fundamental

Crystal Cut

AT-Cut

Frequency Tolerance @ +25°C

±30ppm, Standard

Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]

±30ppm, Standard

Operating Temperature Ranges

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Equivalent Series Resistance[Maximum]

8MHz - <10MHz

70 Ohms

10MHz - <20MHz

55 Ohms

20MHz - <35MHz

45 Ohms

35MHz - 54MHz

35 Ohms

Load Capacitance

See Ordering Information

Shunt Capacitance[C0]

5.0pF Typical, 7.0pF Maximum

Drive Level

10µW Typ., 200µW Max.

Aging @ +25°C

±3ppm/yr Typical

Insulation Resistance

500M Ohms @ DC 100V

Storage Temperature Range

-40°C to +100°C

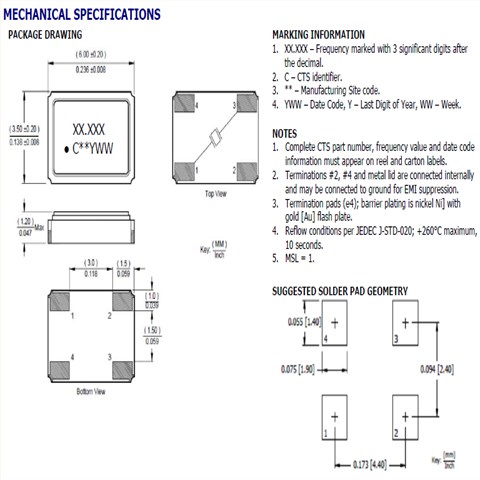

406C35B12M28800,6035陶瓷晶振,CTS贴片晶振，尺寸图

Manufacturer Part Number原厂编码	CTS贴片晶振	Series型号	Frequency	Frequency Tolerance频率偏差	Load Capacitance负载电容	Operating Temperature 工作温度
406C35B10M24500	CTS-Frequency Controls	406	10.245MHz	±30ppm	13pF	-20°C ~ 70°C
406C35B10M24500	CTS-Frequency Controls	406	10.245MHz	±30ppm	13pF	-20°C ~ 70°C
406C35B10M24500	CTS-Frequency Controls	406	10.245MHz	±30ppm	13pF	-20°C ~ 70°C
406I35D08M00000	CTS-Frequency Controls	406	8MHz	±30ppm	18pF	-40°C ~ 85°C
406I35D08M00000	CTS-Frequency Controls	406	8MHz	±30ppm	18pF	-40°C ~ 85°C
406I35D08M00000	CTS-Frequency Controls	406	8MHz	±30ppm	18pF	-40°C ~ 85°C
406C35D08M00000	CTS-Frequency Controls	406	8MHz	±30ppm	18pF	-20°C ~ 70°C
406C35D08M00000	CTS-Frequency Controls	406	8MHz	±30ppm	18pF	-20°C ~ 70°C
406C35D08M00000	CTS-Frequency Controls	406	8MHz	±30ppm	18pF	-20°C ~ 70°C
406C35B13M00000	CTS-Frequency Controls	406	13MHz	±30ppm	13pF	-20°C ~ 70°C
406C35B13M00000	CTS-Frequency Controls	406	13MHz	±30ppm	13pF	-20°C ~ 70°C
406C35B13M00000	CTS-Frequency Controls	406	13MHz	±30ppm	13pF	-20°C ~ 70°C
406C35D12M00000	CTS-Frequency Controls	406	12MHz	±30ppm	18pF	-20°C ~ 70°C
406C35D12M00000	CTS-Frequency Controls	406	12MHz	±30ppm	18pF	-20°C ~ 70°C
406C35D12M00000	CTS-Frequency Controls	406	12MHz	±30ppm	18pF	-20°C ~ 70°C
406C35B14M00000	CTS-Frequency Controls	406	14MHz	±30ppm	13pF	-20°C ~ 70°C
406C35B14M00000	CTS-Frequency Controls	406	14MHz	±30ppm	13pF	-20°C ~ 70°C
406C35B14M00000	CTS-Frequency Controls	406	14MHz	±30ppm	13pF	-20°C ~ 70°C
406C35B24M57600	CTS-Frequency Controls	406	24.576MHz	±30ppm	13pF	-20°C ~ 70°C
406C35B24M57600	CTS-Frequency Controls	406	24.576MHz	±30ppm	13pF	-20°C ~ 70°C
406C35B24M57600	CTS-Frequency Controls	406	24.576MHz	±30ppm	13pF	-20°C ~ 70°C
406I35D10M00000	CTS-Frequency Controls	406	10MHz	±30ppm	18pF	-40°C ~ 85°C
406I35D10M00000	CTS-Frequency Controls	406	10MHz	±30ppm	18pF	-40°C ~ 85°C
406I35D10M00000	CTS-Frequency Controls	406	10MHz	±30ppm	18pF	-40°C ~ 85°C
406I35D12M00000	CTS-Frequency Controls	406	12MHz	±30ppm	18pF	-40°C ~ 85°C
406I35D12M00000	CTS-Frequency Controls	406	12MHz	±30ppm	18pF	-40°C ~ 85°C
406I35D12M00000	CTS-Frequency Controls	406	12MHz	±30ppm	18pF	-40°C ~ 85°C
406C35D25M00000	CTS-Frequency Controls	406	25MHz	±30ppm	18pF	-20°C ~ 70°C
406C35D25M00000	CTS-Frequency Controls	406	25MHz	±30ppm	18pF	-20°C ~ 70°C
