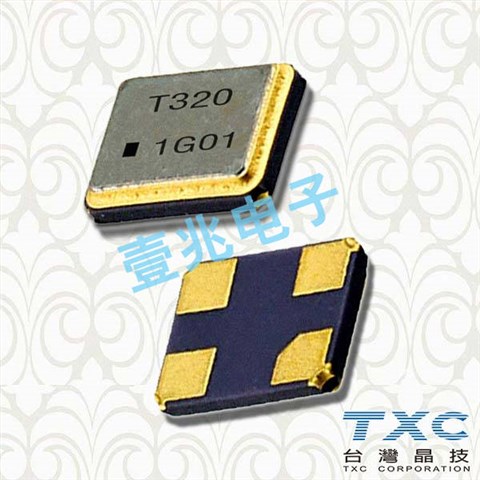

3225进口石英晶振,7M-10.000MAHE-T,TXC石英晶体谐振器

产品简介

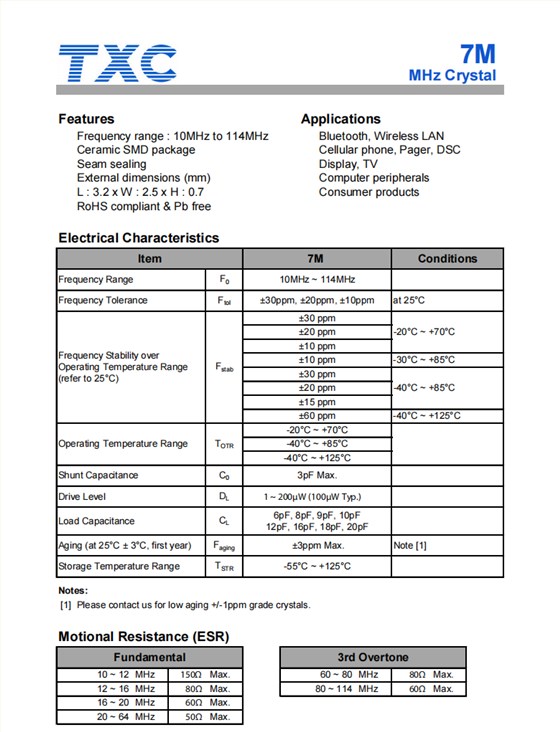

3225进口石英晶振,7M-10.000MAHE-T,TXC石英晶体谐振器，编码：7M-10.000MAHE-T，型号：7M，工作温度：-40°C ~ 85°C，尺寸：3.2*2.5mm，频率：10MHz，精度：±30ppm，负载电容：12pF，无源晶振，石英晶体晶振，3225晶振，SMD晶体，贴片石英晶体，小体积晶振，TXC石英晶振，频率范围:10兆赫至114兆赫，陶瓷SMD封装，接缝密封外部尺寸（毫米）长:3.2 x宽:2.5 x高:0.7 符合RoHS标准且无铅，适用于蓝牙，无线局域网手机、寻呼机、DSC 显示器，电视计算机外围设备消费品。

产品详情

3225进口石英晶振,7M-10.000MAHE-T,TXC石英晶体谐振器，参数表

编码	7M-10.000MAHE-T
品牌	TXC
型号	7M
频率	10MHz
精度	±30ppm
负载电容	12pF
工作温度	-40°C ~ 85°C
尺寸	3.2*2.5mm

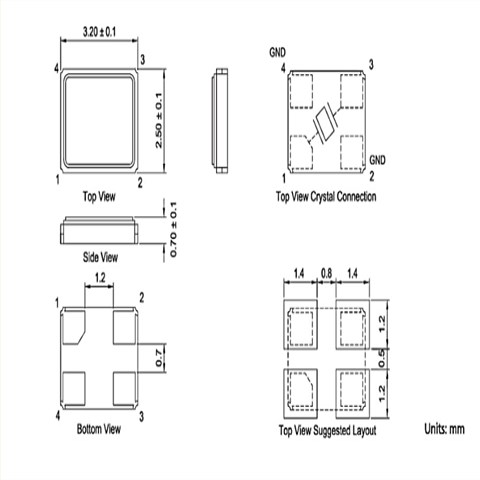

3225进口石英晶振,7M-10.000MAHE-T,TXC石英晶体谐振器，尺寸图

Mfr Part #	石英晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
7M-10.000MAHE-T	TXC CORPORATION	7M	10MHz	±30ppm	12pF	-40°C ~ 85°C
7M-12.000MAAJ-T	TXC CORPORATION	7M	12MHz	±30ppm	18pF	-20°C ~ 70°C
7M-24.000MAAJ-T	TXC CORPORATION	7M	24MHz	±30ppm	18pF	-20°C ~ 70°C
7M-25.000MAAJ-T	TXC CORPORATION	7M	25MHz	±30ppm	18pF	-20°C ~ 70°C
7M-27.000MAAJ-T	TXC CORPORATION	7M	27MHz	±30ppm	18pF	-20°C ~ 70°C
7M-48.000MAAJ-T	TXC CORPORATION	7M	48MHz	±30ppm	18pF	-20°C ~ 70°C
7M-25.000MEEQ-T	TXC CORPORATION	7M	25MHz	±10ppm	10pF	-20°C ~ 70°C
7M-27.120MEEQ-T	TXC CORPORATION	7M	27.12MHz	±10ppm	10pF	-20°C ~ 70°C
7M-27.000MEEQ-T	TXC CORPORATION	7M	27MHz	±10ppm	10pF	-20°C ~ 70°C
7M-24.000MEEQ-T	TXC CORPORATION	7M	24MHz	±10ppm	10pF	-20°C ~ 70°C
7M-12.000MEEQ-T	TXC CORPORATION	7M	12MHz	±10ppm	10pF	-20°C ~ 70°C
7M-16.384MEEQ-T	TXC CORPORATION	7M	16.384MHz	±10ppm	10pF	-20°C ~ 70°C
7M-16.000MAAE-T	TXC CORPORATION	7M	16MHz	±30ppm	12pF	-20°C ~ 70°C
7M-50.000MAHV-T	TXC CORPORATION	7M	50MHz	±30ppm	8pF	-40°C ~ 85°C
7M-10.000MAHV-T	TXC CORPORATION	7M	10MHz	±30ppm	8pF	-40°C ~ 85°C
7M-25.000MAHV-T	TXC CORPORATION	7M	25MHz	±30ppm	8pF	-40°C ~ 85°C
7M-27.120MAAJ-T	TXC CORPORATION	7M	27.12MHz	±30ppm	18pF	-20°C ~ 70°C
7M-10.000MAAJ-T	TXC CORPORATION	7M	10MHz	±30ppm	18pF	-20°C ~ 70°C
7M-27.120MAHE-T	TXC CORPORATION	7M	27.12MHz	±30ppm	12pF	-40°C ~ 85°C
7M-16.000MAHE-T	TXC CORPORATION	7M	16MHz	±30ppm	12pF	-40°C ~ 85°C
7M-12.000MAHE-T	TXC CORPORATION	7M	12MHz	±30ppm	12pF	-40°C ~ 85°C
7M-16.000MEEQ-T	TXC CORPORATION	7M	16MHz	±10ppm	10pF	-20°C ~ 70°C
7M-32.000MEEQ-T	TXC CORPORATION	7M	32MHz	±10ppm	10pF	-20°C ~ 70°C
7M-30.000MEEQ-T	TXC CORPORATION	7M	30MHz	±10ppm	10pF	-20°C ~ 70°C
7M-40.000MEEQ-T	TXC CORPORATION	7M	40MHz	±10ppm	10pF	-20°C ~ 70°C
7M54072001	TXC CORPORATION	7M	54MHz	±20ppm	8pF	-40°C ~ 85°C
7M48072001	TXC CORPORATION	7M	48MHz	±20ppm	8pF	-40°C ~ 85°C
7M-48.000MEEQ-T	TXC CORPORATION	7M	48MHz	±10ppm	10pF	-20°C ~ 70°C
7M50072001	TXC CORPORATION	7M	50MHz	±7ppm	9pF	-40°C ~ 105°C
7M-30.000MAAE-T	TXC CORPORATION	7M	30MHz	±30ppm	12pF	-20°C ~ 70°C
7M-24.000MAAE-T	TXC CORPORATION	7M	24MHz	±30ppm	12pF	-20°C ~ 70°C
7M-26.000MAAE-T	TXC CORPORATION	7M	26MHz	±30ppm	12pF	-20°C ~ 70°C
7M-32.000MAAE-T	TXC CORPORATION	7M	32MHz	±30ppm	12pF	-20°C ~ 70°C
7M-12.000MAAE-T	TXC CORPORATION	7M	12MHz	±30ppm	12pF	-20°C ~ 70°C
