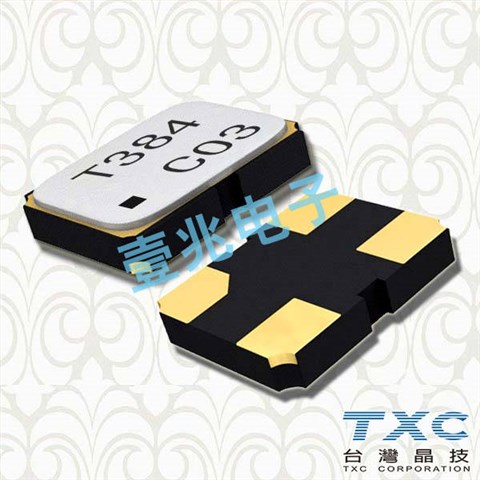

8Y25000026,2016石英晶振,25MHz晶振
8Y25000026,2016石英晶振,25MHz晶振
|
晶振料号 |
8Y25000026 |
|
品牌 |
TXC |
|
型号 |
8Y |
|
频率 |
25MHz |
|
精度 |
±20~±30ppm |
|
负载 |
20pF |
|
产地 |
|
|
工作温度 |
- 20℃~+70℃ |
|

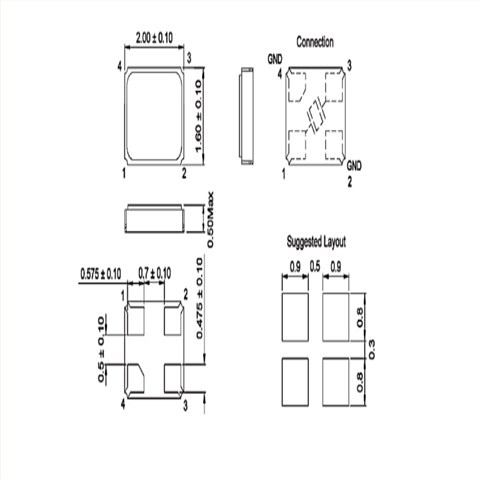

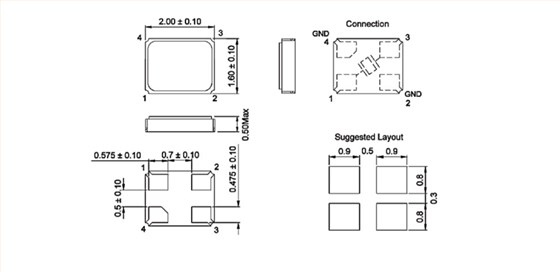

尺寸 |
2016 |
8Y25000026,2016石英晶振,25MHz晶振
|
NDK晶振原厂编码 |
厂家 |
晶振参数 |
频率偏差 |
温度 |
封装 |
尺寸 |
|
NX2016SA-26M-STD-CZS-2 |
NDK |
CRYSTAL 26.0000MHZ 8PF SMD |
±15ppm |
-40°C ~ 85°C |
4 |
2016 |
|
NX2016SA-25.000M-STD-CZS-1 |
NDK |
CRYSTAL 25.0000MHZ 8PF SMD |
±15ppm |
-10°C ~ 75°C |
4 |
2016 |
|
NX2016SA-26M-STD-CZS-1 |
NDK |
CRYSTAL 26.0000MHZ 8PF SMD |
±15ppm |
-10°C ~ 75°C |
4 |
2016 |
|
NX2016SA-26MHZ-EXS00A-CS06025 |
NDK |
CRYSTAL 26.0000MHZ 8PF SMD |
±15ppm |
-20°C ~ 70°C |
4 |
2016 |
|
NX2016AB-26MHZ SB1 |
NDK |
CRYSTAL 26.0000MHZ 7PF SMD |
±10ppm |
-30°C ~ 75°C |
4 |
2016 |
|
NX2016SA-24.9231M-CHP-CZS-9 |
NDK |
CRYSTAL 24.9231MHZ 8PF SMD |
±15ppm |
-40°C ~ 110°C |
4 |
2016 |
|
NX2016AB-26MHZ ST1 |
NDK |
CRYSTAL 26.0000MHZ 8PF SMD |
±20ppm |
-30°C ~ 75°C |
4 |
2016 |
|
NX2016AB-32MHZ ST2 |
NDK |
CRYSTAL 32.0000MHZ 8PF SMD |
±20ppm |
-30°C ~ 75°C |
4 |
2016 |
|
NX2016AB-36MHZ ST3 |
NDK |
CRYSTAL 36.0000MHZ 8PF SMD |
±20ppm |
-30°C ~ 75°C |
4 |
2016 |
|
NX2016AB-38.4MHZ ST4 |
NDK |
CRYSTAL 38.4000MHZ 8PF SMD |
±20ppm |
-30°C ~ 75°C |
4 |
2016 |
|
NX2016AB-26MHZ SB2 |
NDK |
CRYSTAL 26.0000MHZ 7PF SMD |
±15ppm |
-20°C ~ 70°C |
4 |
2016 |
|
NX2016AB-38.4MHZ SW1 |
NDK |
CRYSTAL 38.4000MHZ 7PF SMD |
±10ppm |
-20°C ~ 70°C |
4 |
2016 |
|
NX2016AB-38.4MHZ SWW |
NDK |
CRYSTAL 38.4000MHZ 7PF SMD |
±20ppm |
-30°C ~ 75°C |
4 |
2016 |
|
NX2016AB-40MHZ SW2 |
NDK |
CRYSTAL 40.0000MHZ 7PF SMD |
±10ppm |
-20°C ~ 70°C |
4 |
2016 |
|
NX2016AB-40MHZ SW2W |
NDK |
CRYSTAL 40.0000MHZ 7PF SMD |
±20ppm |
-30°C ~ 75°C |
4 |
2016 |
|
NX2016SA-40M-STD-CZS-3 |
NDK |
CRYSTAL 40.0000MHZ 8PF SMD |
±10ppm |
-40°C ~ 125°C |
4 |
2016 |
|
NX2016SA-50M-STD-CZS-3 |
NDK |
CRYSTAL 50.0000MHZ 8PF SMD |
±10ppm |
-40°C ~ 125°C |
4 |
2016 |
|
NX2016SA-60M-STD-CZS-3 |
NDK |
CRYSTAL 60.0000MHZ 8PF SMD |
±10ppm |
-40°C ~ 125°C |
4 |
2016 |
|
NX2016SA-80M-STD-CZS-3 |
NDK |
CRYSTAL 80.0000MHZ 8PF SMD |
±10ppm |
-40°C ~ 125°C |
4 |
2016 |
|
NX2016SA-50M-CHP-CZS-38 |
NDK |
CRYSTAL 50.0000MHZ 8PF SMD |
±10ppm |
-40°C ~ 125°C |
4 |
2016 |
|
CRYSTAL 26MHZ 8PF SMD |
- |
- |
4 |
2016 |
