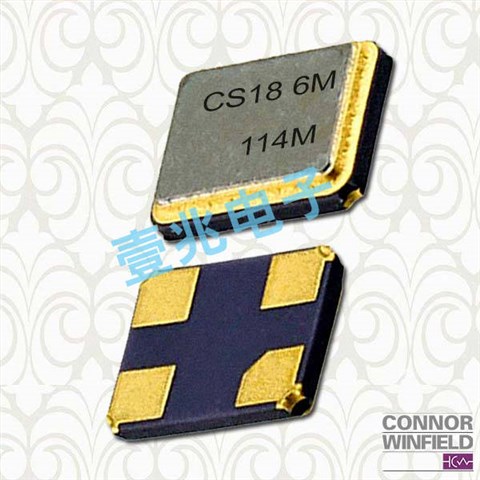

CS-044-054.0M,3225进口石英晶振,美国进口ConnorWinfield晶振

产品简介

CS-044-054.0M,3225进口石英晶振,美国进口ConnorWinfield晶振，编码：CS-044-054.0M，型号：CS-044系列晶振，工作温度：-40°C ~ 85°C，尺寸：3.2*2.5mm，频率：54MHz，负载电容：8pF，精度：±15ppm，SMD晶体，ConnorWinfield石英晶振 ，康纳·温菲尔德型号CS-044是 54兆赫基本模式，AT切割 3.2x2.5mm毫米表面贴装晶体，CS-044被设计成用作中的参考晶体合成器应用，频率:54.0兆赫频率校准:+/-15 ppm 频率稳定性:+/-25 ppm 温度范围:-40至85摄氏度表面贴装封装带卷包装符合RoHS标准/无铅。

产品详情

CS-044-054.0M,3225进口石英晶振,美国进口ConnorWinfield晶振，参数表

原厂编码	CS-044-054.0M
品牌	ConnorWinfield晶振
型号	CS-044
频率	54MHz
频率偏差	±15ppm
负载电容	8pF
工作温度	-40°C ~ 85°C

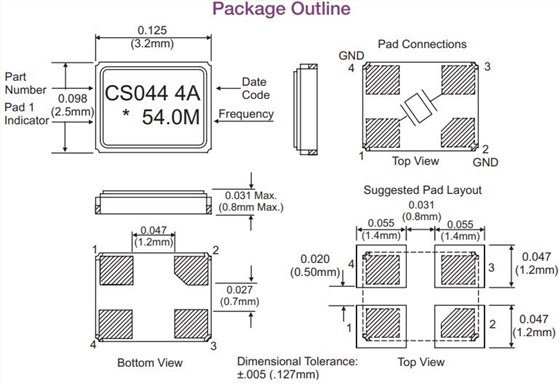

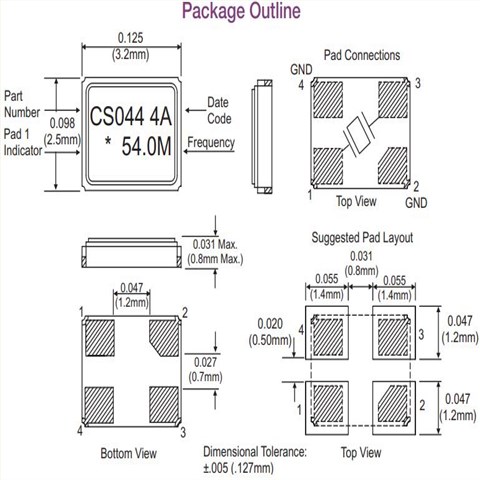

CS-044-054.0M,3225进口石英晶振,美国进口ConnorWinfield晶振器，尺寸图

CS-044.3225

康纳温菲尔德原厂编码	深圳进口晶振代理商	Series型号	Frequency	Frequency Stability频率稳定度	Frequency Tolerance频率偏差	Load Capacitance负载电容	Operating Temperature工作温度
XL-1C-010.0M	Connor-Winfield晶振	XL-1C	10MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-018.0M	Connor-Winfield晶振	XL-1C	18MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-008.0M	Connor-Winfield晶振	XL-1C	8MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield晶振	XL-1C	12MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield晶振	XL-1C	20MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-024.0M	Connor-Winfield晶振	XL-1C	24MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-025.0M	Connor-Winfield晶振	XL-1C	25MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-026.0M	Connor-Winfield晶振	XL-1C	26MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-027.0M	Connor-Winfield晶振	XL-1C	27MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-028.0M	Connor-Winfield晶振	XL-1C	28MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield晶振	XL-1C	16MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XL-1C-032.0M	Connor-Winfield晶振	XL-1C	32MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield晶振	XM-1	12MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XM-1-014.0M	Connor-Winfield晶振	XM-1	14MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XM-1-018.0M	Connor-Winfield晶振	XM-1	18MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield晶振	XM-1	16MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XM-1-024.0M	Connor-Winfield晶振	XM-1	24MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XM-1-024.0M	Connor-Winfield晶振	XM-1	25MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XM-1-026.0M	Connor-Winfield晶振	XM-1	26MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XM-1-027.0M	Connor-Winfield晶振	XM-1	27MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield晶振	XM-1	10MHz	±50ppm	±50ppm	16pF	-10°C ~ 60°C
