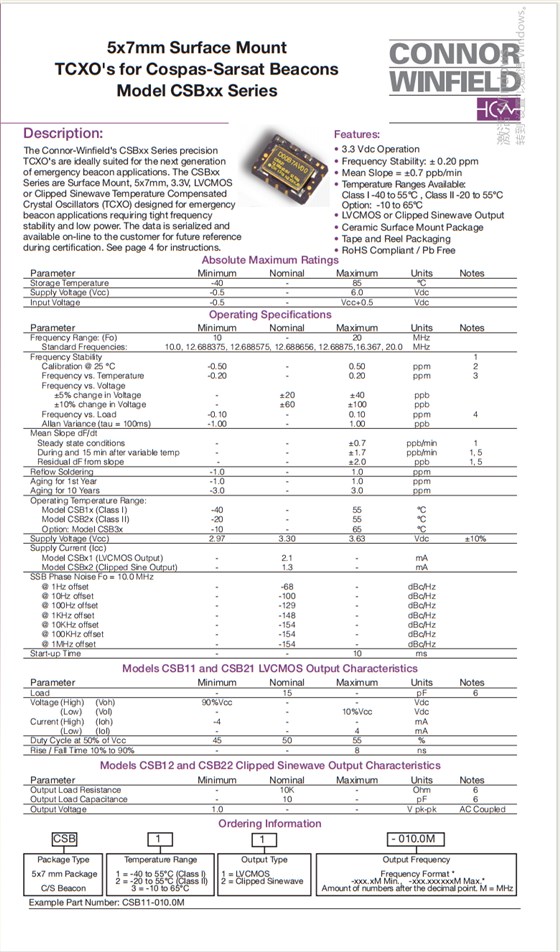

CSB21-012.688575M,7050差分石英晶体,TCXO晶振，编码：CSB21-012.688575M，型号：CSB系列晶振，工作温度：-20°C ~ 55°C，尺寸：7.0*5.0mm，频率：12.688575MHz，电压：3.3V，精度：±200ppb，电流：2.1mA，温度补偿晶振，有源晶振SPXO，差分晶振，康纳-温菲尔德的CSBxx系列精度
TCXO氏症非常适合下一代
紧急信标应用。中国证券交易所
系列为表面贴装、5x7mm、3.3V、LVCMOS
或削波正弦波温度补偿
为应急设计的晶体振荡器（TCXO）
要求严格频率的信标应用
稳定性和低功耗。数据被序列化并
可在线提供给客户以供将来参考
认证期间，请参见第4页的说明，3.3 Vdc操作
频率稳定性:0.20 ppm
平均斜率= 0.7 ppb/min
可用温度范围:
一级-40至55摄氏度，二级-20至55摄氏度
选项:-10至65摄氏度
LVCMOS或削波正弦波输出
陶瓷表贴封装
带卷包装
符合RoHS标准/无铅。
CSB21-012.688575M,7050差分石英晶体,TCXO晶振，参数表
| 编码 | CSB21-012.688575M |
| 品牌 | Connor-Winfield |
| 型号 | CSB |
| 频率 | 12.688575MHz |
| 输出方式 | LVCMOS |
| 电压 | 3.3V |
| 精度 | ±200ppb |
| 工作温度 | -20°C ~ 55°C |
| 电流 | 2.1mA |
| Manufacturer Part Number原厂代码 | 壹兆晶振厂家 | Series型号 | Type 类型 | Frequency 频率 | Output 输出 | Voltage - Supply电压 | Frequency Stability频率稳定度 | Operating Temperature 工作温度 |
| D32G-016.368M | Connor-Winfield | D32G | TCXO | 16.368MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D32G-016.368M | Connor-Winfield | D32G | TCXO | 16.368MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D32G-016.368M | Connor-Winfield | D32G | TCXO | 16.368MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D32G-026.0M | Connor-Winfield | D32G | TCXO | 26MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D32G-026.0M | Connor-Winfield | D32G | TCXO | 26MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D32G-026.0M | Connor-Winfield | D32G | TCXO | 26MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D32G-019.2M | Connor-Winfield | D32G | TCXO | 19.2MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D32G-019.2M | Connor-Winfield | D32G | TCXO | 19.2MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D32G-019.2M | Connor-Winfield | D32G | TCXO | 19.2MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D75A-010.0M | Connor-Winfield | D75A | TCXO | 10MHz | LVCMOS | 3.3V | ±280ppb | 0°C ~ 70°C |
| D75A-010.0M | Connor-Winfield | D75A | TCXO | 10MHz | LVCMOS | 3.3V | ±280ppb | 0°C ~ 70°C |
| D75A-010.0M | Connor-Winfield | D75A | TCXO | 10MHz | LVCMOS | 3.3V | ±280ppb | 0°C ~ 70°C |
| D75A-019.2M | Connor-Winfield | D75A | TCXO | 19.2MHz | LVCMOS | 3.3V | ±280ppb | 0°C ~ 70°C |
| D75A-019.2M | Connor-Winfield | D75A | TCXO | 19.2MHz | LVCMOS | 3.3V | ±280ppb | 0°C ~ 70°C |
| D75A-019.2M | Connor-Winfield | D75A | TCXO | 19.2MHz | LVCMOS | 3.3V | ±280ppb | 0°C ~ 70°C |
| D53G-020.0M | Connor-Winfield | D53G | TCXO | 20MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D53G-020.0M | Connor-Winfield | D53G | TCXO | 20MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D53G-020.0M | Connor-Winfield | D53G | TCXO | 20MHz | Clipped Sine Wave | 3.3V | ±500ppb | -30°C ~ 85°C |
| D75A-012.8M | Connor-Winfield | D75A | TCXO | 12.8MHz | LVCMOS | 3.3V | ±280ppb | 0°C ~ 70°C |
| D75A-012.8M | Connor-Winfield | D75A | TCXO | 12.8MHz | LVCMOS | 3.3V | ±280ppb | 0°C ~ 70°C |
| D75A-012.8M | Connor-Winfield | D75A | TCXO | 12.8MHz | LVCMOS | 3.3V | ±280ppb | 0°C ~ 70°C |
