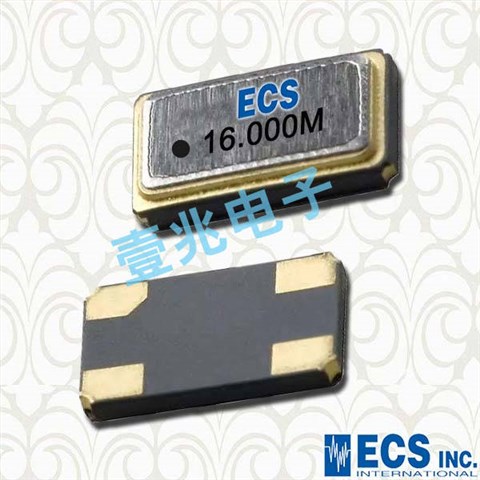

ECS-2333-080-BN-TR,3225石英晶振,8MHz贴片晶振，型号：ECS-2333系列晶振，编码为：ECS-2333-080-BN-TR，频率：8MHz,尺寸：3.2*2.5mm,工作温度为：﹣40°C ~ 85°C，3225mm体积贴片晶振适用于汽车电子领域的表面贴片型石英晶振,本产品已被确定的高信赖性最适合用于汽车电子部件,晶体在极端严酷的环境条件下也能发挥稳定的起振特性,晶振本身具有耐热,耐振,耐冲击等优良的耐环境特性,满足无铅焊接的高温回流温度曲线要求,符合AEC-Q200标准.

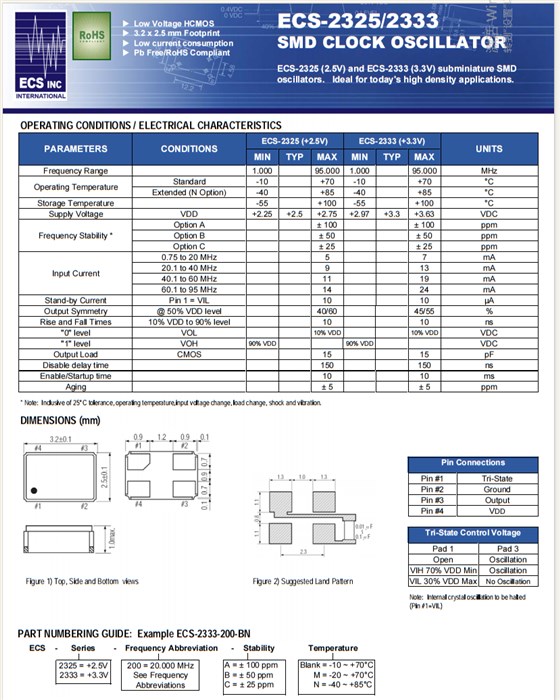

| PARAMETERS | CONDITIONS | ECS-2333 (+3.3V) | UNITS | |||||||||||
| MIN | TYP | MAX | ||||||||||||
| Frequency Range |
|
8 | MHz | |||||||||||
| Operating Temperature | Standard | -10 | +70 | °C | ||||||||||
| Extended (N Option) | -40 | +85 | °C | |||||||||||
| Storage Temperature | -55 | +100 | °C | |||||||||||
| Supply Voltage | VDD | +2.97 | +3.3 | +3.63 | VDC | |||||||||
| Frequency Stability * | Option A | ± 100 | ppm | |||||||||||
| Option B | ± 50 | ppm | ||||||||||||
| Option C | ± 25 | ppm | ||||||||||||
| Input Current | 0.75 to 20 MHz | 7 | mA | |||||||||||
| 20.1 to 40 MHz | 13 | mA | ||||||||||||
| 40.1 to 60 MHz | 19 | mA | ||||||||||||
| 60.1 to 95 MHz | 24 | mA | ||||||||||||
| Stand-by Current | Pin 1 = VIL | 10 | µA | |||||||||||
| Output Symmetry | @ 50% VDD level | 45/55 | % | |||||||||||
| Rise and Fall Times | 10% VDD to 90% level | 10 | ns | |||||||||||
| "0" level | VOL | 10% VDD | VDC | |||||||||||
| "1" level | VOH | 90% VDD | VDC | |||||||||||
| Output Load | CMOS | 15 | pF | |||||||||||
| Disable delay time | 150 | ns | ||||||||||||
| Enable/Startup time | 10 | ms | ||||||||||||
| Aging | ± 5 | ppm | ||||||||||||

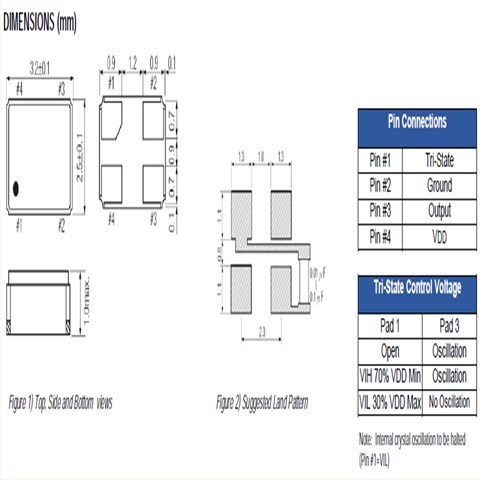

ECS石英晶体,ECS-2520S18-160-FN-TR,2520振荡器，尺寸图
| Manufacturer Part Number原厂代码 | 石英晶振 | Series型号 | Frequency 频率 | Operating Temperature 工作温度 |
| ECS-2333-270-BN-TR | ECS晶振 | ECS-2333 | 27MHz | -40°C ~ 85°C |
| ECS-2333-270-BN-TR | ECS晶振 | ECS-2333 | 27MHz | -40°C ~ 85°C |
| ECS-2333-270-BN-TR | ECS晶振 | ECS-2333 | 27MHz | -40°C ~ 85°C |
| ECS-2333-240-BN-TR | ECS晶振 | ECS-2333 | 24MHz | -40°C ~ 85°C |
| ECS-2333-240-BN-TR | ECS晶振 | ECS-2333 | 24MHz | -40°C ~ 85°C |
| ECS-2333-240-BN-TR | ECS晶振 | ECS-2333 | 24MHz | -40°C ~ 85°C |
| ECS-2333-100-BN-TR | ECS晶振 | ECS-2333 | 10MHz | -40°C ~ 85°C |
| ECS-2333-100-BN-TR | ECS晶振 | ECS-2333 | 10MHz | -40°C ~ 85°C |
| ECS-2333-100-BN-TR | ECS晶振 | ECS-2333 | 10MHz | -40°C ~ 85°C |
| ECS-2333-160-BN-TR | ECS晶振 | ECS-2333 | 16MHz | -40°C ~ 85°C |
| ECS-2333-160-BN-TR | ECS晶振 | ECS-2333 | 16MHz | -40°C ~ 85°C |
| ECS-2333-160-BN-TR | ECS晶振 | ECS-2333 | 16MHz | -40°C ~ 85°C |
| ECS-2333-330-BN-TR | ECS晶振 | ECS-2333 | 33MHz | -40°C ~ 85°C |
| ECS-2333-330-BN-TR | ECS晶振 | ECS-2333 | 33MHz | -40°C ~ 85°C |
| ECS-2333-330-BN-TR | ECS晶振 | ECS-2333 | 33MHz | -40°C ~ 85°C |
| ECS-2333-200-BN-TR | ECS晶振 | ECS-2333 | 20MHz | -40°C ~ 85°C |
| ECS-2333-200-BN-TR | ECS晶振 | ECS-2333 | 20MHz | -40°C ~ 85°C |
| ECS-2333-200-BN-TR | ECS晶振 | ECS-2333 | 20MHz | -40°C ~ 85°C |
| ECS-2333-333.3-BN-TR | ECS晶振 | ECS-2333 | 33.333MHz | -40°C ~ 85°C |
| ECS-2333-333.3-BN-TR | ECS晶振 | ECS-2333 | 33.333MHz | -40°C ~ 85°C |
