2520贴片有源晶振,ECS-2520Q-30-480-BP-TR，型号：ECS-2520Q系列晶振，编码为：ECS-2520Q-30-480-BP-TR，频率：48MHz,尺寸：2.5*2.0mm,工作温度为：﹣40°C ~ 105°C，2520mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接(产品无铅对应),为无铅产品.
| PARAMETERS | CONDITIONS | ECS-2520Q | UNITS | ||||||||||||||||||
| MIN | TYP | MAX | |||||||||||||||||||
| Frequency Range |
|
48 | MHz | ||||||||||||||||||
| * Frequency Stability | -40 ~ +125°C (BS Opt) | ±50 | ppm | ||||||||||||||||||
| -40 ~ +105°C (DP Opt) | ±30 | ppm | |||||||||||||||||||
| Power Supply | Vdd ±5% | +1.8, +2.5, +3.0, +3.3 | V DC | ||||||||||||||||||
| Output | HCMOS | 15 | pF | ||||||||||||||||||
| Output voltage Level | VOL:10%Vddmax./VOH:90%Vddmin.V DC | ||||||||||||||||||||
| Rise & Fall time | 10%Vdd –90%Vdd | 10 | ns | ||||||||||||||||||
| Duty Cycle | @ ½ Vdd | 45/55 | % | ||||||||||||||||||
| Operating Temp* | -40 | +125 | °C | ||||||||||||||||||
| Storage Temp | -55 | +125 | °C | ||||||||||||||||||

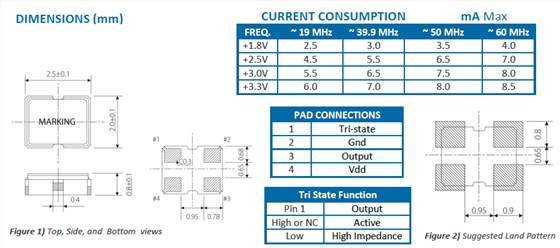

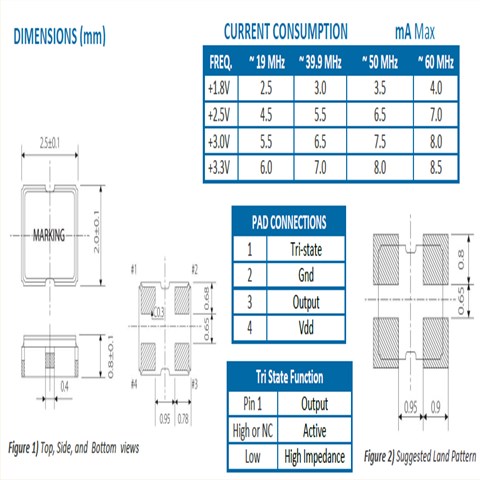

2520贴片有源晶振,ECS-2520Q-30-480-BP-TR，尺寸图
| Manufacturer Part Number原厂代码 | 有源ECS贴片晶振 | Series型号 | Frequency 频率 | Operating Temperature工作温度 |
| ECS-2520S25-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS 晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS 晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS 晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS 晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS 晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS 晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS 晶振 | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS 晶振 | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS 晶振 | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS 晶振 | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS 晶振 | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS 晶振 | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS 晶振 | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS 晶振 | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS 晶振 | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS 晶振 | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS 晶振 | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS 晶振 | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS 晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS 晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS 晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-400-FN-TR | ECS 晶振 | ECS-2520S | 40MHz | -40°C ~ 85°C |
