ECS-36-20-5PVX,CSM-7SSX,美国进口晶振,SMD晶振,石英晶体谐振器，贴片晶振，无源晶振，型号：CSM-7SSX系列晶振，编码为：ECS-36-20-5PVX，频率：3.6864MHz,尺寸：11.4*4.7mm,负载电容：20pF,工作温度为：-10°C ~ 70°C，贴片无源晶振，石英晶体晶振，美国进口晶振，无源晶振，CSM-7SSX 薄型SMD晶体 CSM-7SSX是低成本SMD的绝佳选择 水晶。CSM-7 ssx（5pxv）的外壳高度为2.6毫米 最大值在电阻焊接金属封装中，被广泛应用于智能家具家电，医疗设备，智能儿童游戏机，平板电脑，时钟钟表，无线晶振，车载设备等用途。
| 编码 |
ECS-36-20-5PVX |
| 品牌 | ECS 晶振 |
| 型号 | CSM-7SSX |
| 频率 |
3.6864MHz |
| 负载电容 |
20Pf |
| 工作温度 |
-10°C ~ 70°C |
| 尺寸 | 11.4*4.7mm |

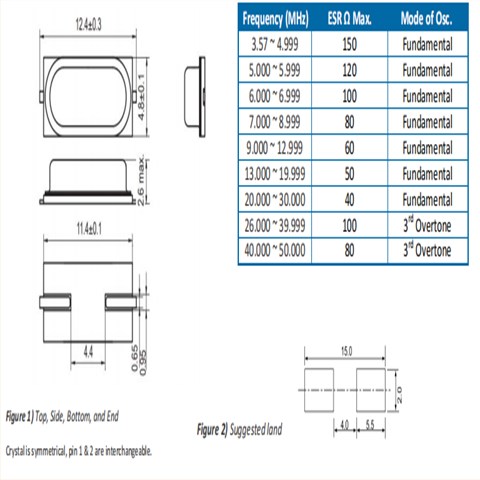

ECS-36-20-5PVX,CSM-7SSX,美国进口晶振,SMD晶振，尺寸图
| Manufacturer Part Number原厂编码 | 石英晶振 | Series型号 | Frequency | Operating Temperature工作温度 |
| ECS-270-20-5PVX | ECS 晶振 | CSM-7SSX | 27MHz | -10°C ~ 70°C |
| ECS-270-20-5PVX | ECS 晶振 | CSM-7SSX | 27MHz | -10°C ~ 70°C |
| ECS-270-20-5PVX | ECS 晶振 | CSM-7SSX | 27MHz | -10°C ~ 70°C |
| ECS-110.5-20-5PVX | ECS 晶振 | CSM-7SSX | 11.0592MHz | -10°C ~ 70°C |
| ECS-110.5-20-5PVX | ECS 晶振 | CSM-7SSX | 11.0592MHz | -10°C ~ 70°C |
| ECS-110.5-20-5PVX | ECS 晶振 | CSM-7SSX | 11.0592MHz | -10°C ~ 70°C |
| ECS-143-20-5PVX | ECS 晶振 | CSM-7SSX | 14.31818MHz | -10°C ~ 70°C |
| ECS-143-20-5PVX | ECS 晶振 | CSM-7SSX | 14.31818MHz | -10°C ~ 70°C |
| ECS-143-20-5PVX | ECS 晶振 | CSM-7SSX | 14.31818MHz | -10°C ~ 70°C |
| ECS-40-20-5PVX | ECS 晶振 | CSM-7SSX | 4MHz | -10°C ~ 70°C |
| ECS-40-20-5PVX | ECS 晶振 | CSM-7SSX | 4MHz | -10°C ~ 70°C |
| ECS-40-20-5PVX | ECS 晶振 | CSM-7SSX | 4MHz | -10°C ~ 70°C |
| ECS-80-20-5PVX | ECS 晶振 | CSM-7SSX | 8MHz | -10°C ~ 70°C |
| ECS-80-20-5PVX | ECS 晶振 | CSM-7SSX | 8MHz | -10°C ~ 70°C |
| ECS-80-20-5PVX | ECS 晶振 | CSM-7SSX | 8MHz | -10°C ~ 70°C |
| ECS-35-18-5PVX | ECS 晶振 | CSM-7SSX | 3.579545MHz | -10°C ~ 70°C |
| ECS-35-18-5PVX | ECS 晶振 | CSM-7SSX | 3.579545MHz | -10°C ~ 70°C |
| ECS-35-18-5PVX | ECS 晶振 | CSM-7SSX | 3.579545MHz | -10°C ~ 70°C |
| ECS-250-20-5PVX | ECS 晶振 | CSM-7SSX | 25MHz | -10°C ~ 70°C |
| ECS-250-20-5PVX | ECS 晶振 | CSM-7SSX | 25MHz | -10°C ~ 70°C |
| ECS-250-20-5PVX | ECS 晶振 | CSM-7SSX | 25MHz | -10°C ~ 70°C |
| ECS-120-32-5PVX | ECS 晶振 | CSM-7SSX | 12MHz | -10°C ~ 70°C |
| ECS-120-32-5PVX | ECS 晶振 | CSM-7SSX | 12MHz | -10°C ~ 70°C |
| ECS-120-32-5PVX | ECS 晶振 | CSM-7SSX | 12MHz | -10°C ~ 70°C |
| ECS-184-20-5PVX | ECS 晶振 | CSM-7SSX | 18.432MHz | -10°C ~ 70°C |
| ECS-184-20-5PVX | ECS 晶振 | CSM-7SSX | 18.432MHz | -10°C ~ 70°C |
