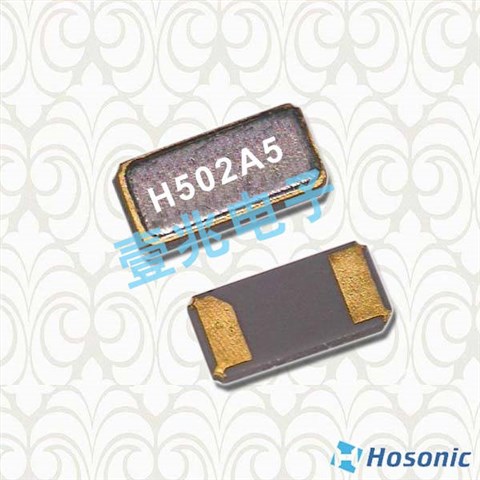

ETST00327000JE,3215晶体,HOSNIC石英晶振

产品简介

ETST00327000JE,3215晶体,HOSNIC石英晶振，编码：ETST00327000JE，型号：ETST系列晶振，工作温度：-40°C ~ 85°C，精度：±30ppm，尺寸：3.2*1.5mm，频率：32.768 kHz，电容：12.5pF，台湾进口晶振，石英晶体谐振器，石英晶体晶振，SMD晶体，石英晶振，贴片石英晶体，微型包装低电阻 32.768千赫频率紧密度容限尺寸选项，SMD型石英晶体在尺寸、性能和经济性方面因此它被用作中的无线电话，通信设备、测量、微处理器，时钟钟表等应用。

产品详情

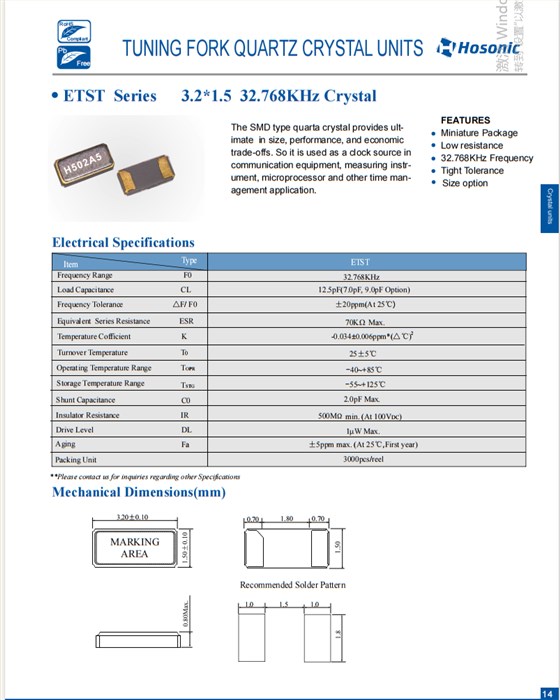

ETST00327000JE,3215晶体,HOSNIC石英晶振，参数表

编码	ETST00327000JE
品牌	HOSNIC晶振
型号	ETST
频率	32.768 kHz
精度	±30ppm
电容	12.5pF
工作温度	-40°C ~ 85°C

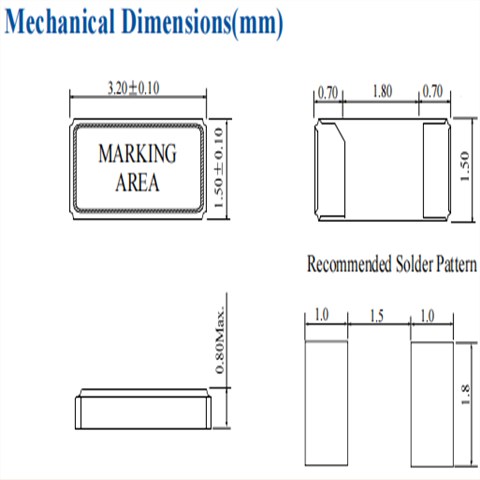

ETST00327000JE,3215晶体,HOSNIC石英晶振，尺寸图

Mfr Part #	台湾红星晶振	Series	Frequency	Frequency Tolerance	Load Capacitance
E3SB25E00003FE	Hosonic Electronic Co., Ltd	E3SB	25 MHz	±15ppm	18pF
E3SB24E004000E	Hosonic Electronic Co., Ltd	E3SB	24 MHz	±10ppm	18pF
E3SB32E001500E	Hosonic Electronic Co., Ltd	E3SB	32 MHz	±10ppm	12pF
E3SB37E0X0004E	Hosonic Electronic Co., Ltd	E3SB	37.4 MHz	±10ppm	16pF
E3SB25E001803E	Hosonic Electronic Co., Ltd	E3SB	25 MHz	±20ppm	12pF
E3SB16E0X000WE	Hosonic Electronic Co., Ltd	E3SB	16.384 MHz	±10ppm	10pF
E3SB27E0X000VE	Hosonic Electronic Co., Ltd	E3SB	27.12 MHz	±10ppm	10pF
E3SB27E00000DE	Hosonic Electronic Co., Ltd	E3SB	27 MHz	±10ppm	10pF
E3SB50E00000AE	Hosonic Electronic Co., Ltd	E3SB	50 MHz	±10ppm	18pF
E3SB26E000011E	Hosonic Electronic Co., Ltd	E3SB	26 MHz	±10ppm	12pF
E3SB8E0000003E	Hosonic Electronic Co., Ltd	E3SB	8 MHz	±30ppm	10pF
E3SB24E00000QE	Hosonic Electronic Co., Ltd	E3SB	24 MHz	±10ppm	10pF
E3SB40E00010JE	Hosonic Electronic Co., Ltd	E3SB	40 MHz	±5ppm	12pF
E3SB12E000022E	Hosonic Electronic Co., Ltd	E3SB	12 MHz	±30ppm	18pF
E3SB16E000028E	Hosonic Electronic Co., Ltd	E3SB	16 MHz	±10ppm	10pF
E3SB40E00090DE	Hosonic Electronic Co., Ltd	E3SB	40 MHz	±10ppm	12pF
E3SB38E0X0006E	Hosonic Electronic Co., Ltd	E3SB	38.4 MHz	±10ppm	10pF
E3SB40E00010KECBB8	Hosonic Electronic Co., Ltd	E3SB	40 MHz	±7ppm	6pF
E3SB39E000006E	Hosonic Electronic Co., Ltd	E3SB	39 MHz	±8ppm	10pF
E3SB38E0X1806E	Hosonic Electronic Co., Ltd	E3SB	38.4 MHz	±20ppm	10pF
E3SB48E000801ECBB8	Hosonic Electronic Co., Ltd	E3SB	48 MHz	±10ppm	12pF
E3SB12E00004EE	Hosonic Electronic Co., Ltd	E3SB	12 MHz	±8ppm	12pF
ETSB37E0X0014E	Hosonic Electronic Co., Ltd	ETSB	37.4 MHz	±10ppm	16pF
ETSB38E0X0005E	Hosonic Electronic Co., Ltd	ETSB	38.4 MHz	±10ppm	10pF
ETSB24E000003E	Hosonic Electronic Co., Ltd	ETSB	24 MHz	±10ppm	8pF
