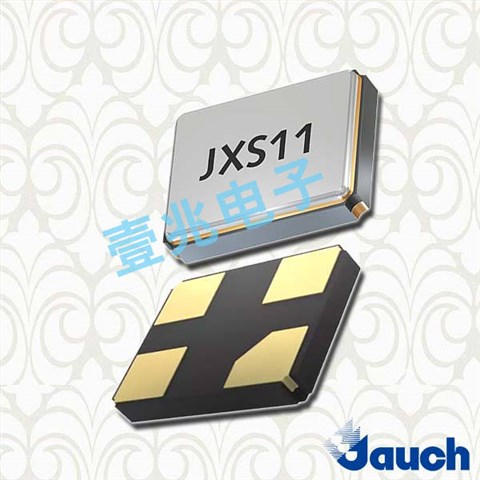

Q 40.0-JXS11-8-10/10-FU-LF,1612贴片晶体,Jauch晶体谐振器

Q 40.0-JXS11-8-10/10-FU-LF,1612贴片晶体,Jauch晶体谐振器，编码：Q 40.0-JXS11-8-10/10-FU-LF，型号：JXS11 ，工作温度：-20°C ~ 70°C，尺寸：1.6*1.2mm，频率：40MHz，精度：±10ppm，负载电容：8pF，美国进口晶振，晶体谐振器，贴片无源晶体，石英晶体，SMD晶体，石英晶体晶振，小体积晶振，1612 晶振是目前 MHZ 系列中体积最小的一款贴片晶振,外观就是一粒米大小,1612 贴片晶振系列产品不仅体积小型,该系列产品满足了市场上对小型化产品的要求.1612 石英贴片晶振采用编带封装,焊接方式使用现代 SMT 贴片高速焊接,提高生产效率,节省人工。适用于智能家居家电，时钟钟表，智能手机，无线电话，网络设备等用途。

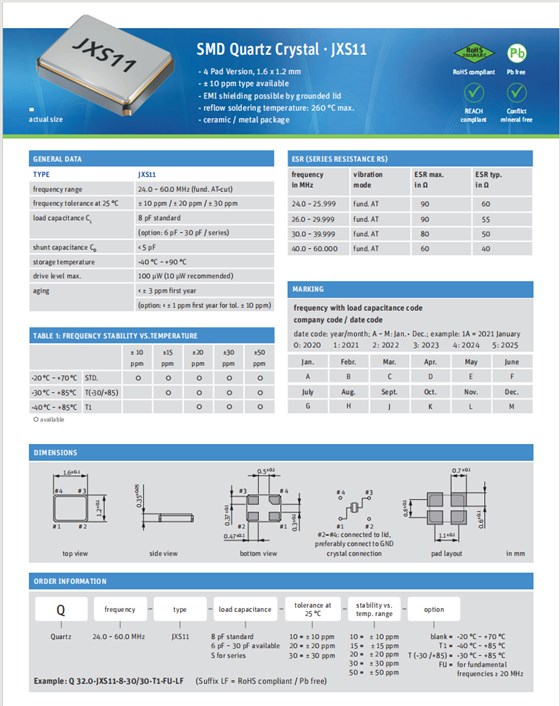

Q 40.0-JXS11-8-10/10-FU-LF,1612贴片晶体,Jauch晶体谐振器，参数表

编码	Q 40.0-JXS11-8-10/10-FU-LF
品牌	Jauch
型号	JXS11
频率	40MHz
精度	±10ppm
负载电容	8pF
工作温度	-20°C ~ 70°C
尺寸	1.6*1.2mm

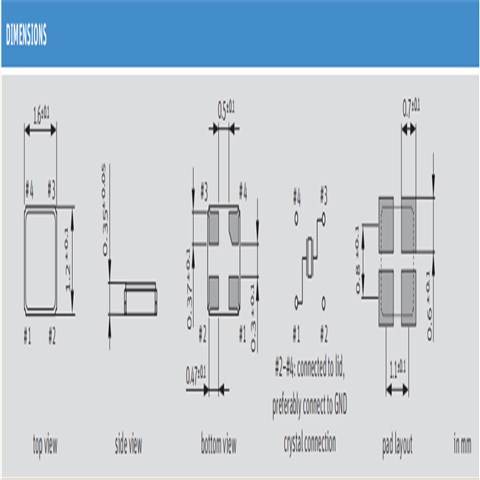

Q 40.0-JXS11-8-10/10-FU-LF,1612贴片晶体,Jauch晶体谐振器，尺寸图

Manufacturer Part Number	晶体谐振器	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
Q 40.0-JXS11-8-10/10-FU-LF	Jauch Quartz	JXS11	40 MHz	±10ppm	8pF	-20°C ~ 70°C
Q 26.0-JXS11-12-10/10-FU-LF	Jauch Quartz	JXS11	26 MHz	±10ppm	12pF	-20°C ~ 70°C
Q 32.0-JXS11-8-10/10-FU-LF	Jauch Quartz	JXS11	32 MHz	±10ppm	8pF	-20°C ~ 70°C
Q 50.0-JXS11-8-10/10-FU-LF	Jauch Quartz	JXS11	50 MHz	±10ppm	8pF	-20°C ~ 70°C
Q 32.0-JXS11-10-10/10-FU-LF	Jauch Quartz	JXS11	32 MHz	±10ppm	10pF	-20°C ~ 70°C
Q 27.120-JXS11-8-10/10-FU-LF	Jauch Quartz	JXS11	27.12 MHz	±10ppm	8pF	-20°C ~ 70°C
Q 50.0-JXS11-12-10/20-T1-FU-LF	Jauch Quartz	JXS11	50 MHz	±10ppm	12pF	-40°C ~ 85°C
Q 27.120-JXS11-8-10/20-T1-FU-LF	Jauch Quartz	JXS11	27.12 MHz	±10ppm	8pF	-40°C ~ 85°C
Q 32.0-JXS11-10-10/20-T1-FU-LF	Jauch Quartz	JXS11	32 MHz	±10ppm	10pF	-40°C ~ 85°C
Q 40.0-JXS11-12-10/10-FU-LF	Jauch Quartz	JXS11	40 MHz	±10ppm	12pF	-20°C ~ 70°C
Q 40.0-JXS11-10-10/10-FU-LF	Jauch Quartz	JXS11	40 MHz	±10ppm	10pF	-20°C ~ 70°C
Q 25.0-JXS11-12-10/10-FU-LF	Jauch Quartz	JXS11	25 MHz	±10ppm	12pF	-20°C ~ 70°C
Q 25.0-JXS11-12-10/20-T1-FU-LF	Jauch Quartz	JXS11	25 MHz	±10ppm	12pF	-40°C ~ 85°C
Q 50.0-JXS11-8-10/20-T1-FU-LF	Jauch Quartz	JXS11	50 MHz	±10ppm	8pF	-40°C ~ 85°C
Q 50.0-JXS11-10-10/20-T1-FU-LF	Jauch Quartz	JXS11	50 MHz	±10ppm	10pF	-40°C ~ 85°C
Q 26.0-JXS11-12-10/20-T1-FU-LF	Jauch Quartz	JXS11	26 MHz	±10ppm	12pF	-40°C ~ 85°C
Q 38.40-JXS11-12-10/10-FU-LF	Jauch Quartz	JXS11	38.4 MHz	±10ppm	12pF	-20°C ~ 70°C
Q 25.0-JXS11-8-10/10-FU-LF	Jauch Quartz	JXS11	25 MHz	±10ppm	8pF	-20°C ~ 70°C
Q 27.120-JXS11-12-10/10-FU-LF	Jauch Quartz	JXS11	27.12 MHz	±10ppm	12pF	-20°C ~ 70°C
Q 24.0-JXS11-10-10/10-FU-LF	Jauch Quartz	JXS11	24 MHz	±10ppm	10pF	-20°C ~ 70°C
Q 38.40-JXS11-10-10/20-T1-FU-LF	Jauch Quartz	JXS11	38.4 MHz	±10ppm	10pF	-40°C ~ 85°C
Q 38.40-JXS11-8-10/10-FU-LF	Jauch Quartz	JXS11	38.4 MHz	±10ppm	8pF	-20°C ~ 70°C
Q 50.0-JXS11-10-10/10-FU-LF	Jauch Quartz	JXS11	50 MHz	±10ppm	10pF	-20°C ~ 70°C
Q 40.0-JXS11-8-10/20-T1-FU-LF	Jauch Quartz	JXS11	40 MHz	±10ppm	8pF	-40°C ~ 85°C
Q 27.120-JXS11-10-10/10-FU-LF	Jauch Quartz	JXS11	27.12 MHz	±10ppm	10pF	-20°C ~ 70°C
Q 27.0-JXS11-12-10/10-FU-LF	Jauch Quartz	JXS11	27 MHz	±10ppm	12pF	-20°C ~ 70°C
Q 26.0-JXS11-10-10/10-FU-LF	Jauch Quartz	JXS11	26 MHz	±10ppm	10pF	-20°C ~ 70°C
Q 38.40-JXS11-10-10/10-FU-LF	Jauch Quartz	JXS11	38.4 MHz	±10ppm	10pF	-20°C ~ 70°C
Q 27.0-JXS11-10-10/10-FU-LF	Jauch Quartz	JXS11	27 MHz	±10ppm	10pF	-20°C ~ 70°C
Q 30.0-JXS11-12-10/10-FU-LF	Jauch Quartz	JXS11	30 MHz	±10ppm	12pF	-20°C ~ 70°C
