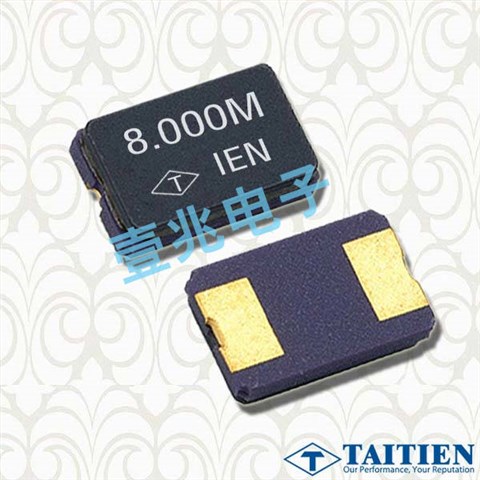

5032晶振,XSCEECNANF-8.000000,TAITIEN进口石英晶振

5032晶振,XSCEECNANF-8.000000,TAITIEN进口石英晶振，编码：XSCEECNANF-8.000000，型号：XS系列晶振，工作温度：-20°C ~70 °C，精度：±30ppm，尺寸：5.0*3.2mm，频率：8MHz，电容：10pF，贴片石英晶体，无源晶振，TAITIEN石英晶振，SMD晶体，典型的5.0*3.2*1.3mm全陶瓷SMD封装，12mm宽的胶带和卷轴包装，用于自动组装，广泛应用于汽车，笔记本电脑，电脑外设，硬盘，MP3播放器，视听播放器。

原厂编码	石英晶振	型号	频率	频率容差	负载电容	工作温度
XSCEECNANF-8.000000	Taitien	XS	8 MHz	±30ppm	10pF	-20°C ~ 70°C
XSCEGCNANF-10.000000	Taitien	XS	10 MHz	±30ppm	10pF	-20°C ~ 70°C
XSCGGCNANF-24.576000	Taitien	XS	24.576 MHz	±50ppm	10pF	-20°C ~ 70°C
XSDEECNANF-25.000000	Taitien	XS	25 MHz	±30ppm	12pF	-20°C ~ 70°C
XSDEELNANF-12.000000	Taitien	XS	12 MHz	±30ppm	12pF	-40°C ~ 85°C
XSDEELNANF-13.560000	Taitien	XS	13.56 MHz	±30ppm	12pF	-40°C ~ 85°C
XSDEELNANF-25.000000	Taitien	XS	25 MHz	±30ppm	12pF	-40°C ~ 85°C
XSDEGCNANF-16.000000	Taitien	XS	16 MHz	±30ppm	12pF	-20°C ~ 70°C
XSFGGLNANF-20.000000	Taitien	XS	20 MHz	±50ppm	16pF	-40°C ~ 85°C
XSGEECNANF-16.000000	Taitien	XS	16 MHz	±30ppm	18pF	-20°C ~ 70°C
XSGEELNANF-25.000000	Taitien	XS	25 MHz	±30ppm	18pF	-40°C ~ 85°C
XSGEGLNANF-13.000000	Taitien	XS	13 MHz	±30ppm	18pF	-40°C ~ 85°C
XSHEECNANF-25.000000	Taitien	XS	25 MHz	±30ppm	20pF	-20°C ~ 70°C
XSHEELNANF-25.000000	Taitien	XS	25 MHz	±30ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-11.059200	Taitien	XS	11.0592 MHz	±50ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-12.000000	Taitien	XS	12 MHz	±50ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-16.000000	Taitien	XS	16 MHz	±50ppm	20pF	-40°C ~ 85°C
XSHGGLNANF-24.000000	Taitien	XS	24 MHz	±50ppm	20pF	-40°C ~ 85°C
XSDEELAANF-12.000000	Taitien	XS	12 MHz	±30ppm	12pF	-40°C ~ 85°C
XSDEELAANF-13.560000	Taitien	XS	13.56 MHz	±30ppm	12pF	-40°C ~ 85°C
XSGEECAANF-16.000000	Taitien	XS	16 MHz	±30ppm	18pF	-20°C ~ 70°C
XSGEELAANF-25.000000	Taitien	XS	25 MHz	±30ppm	18pF	-40°C ~ 85°C
XSHEECAANF-25.000000	Taitien	XS	25 MHz	±30ppm	20pF	-20°C ~ 70°C
XSHEELAANF-25.000000	Taitien	XS	25 MHz	±30ppm	20pF	-40°C ~ 85°C
XSGCCLNANF-25.000000	Taitien	XS	25 MHz	±20ppm	18pF	-40°C ~ 85°C
XSGCECNANF-8.000000	Taitien	XS	8 MHz	±20ppm	18pF	-20°C ~ 70°C
