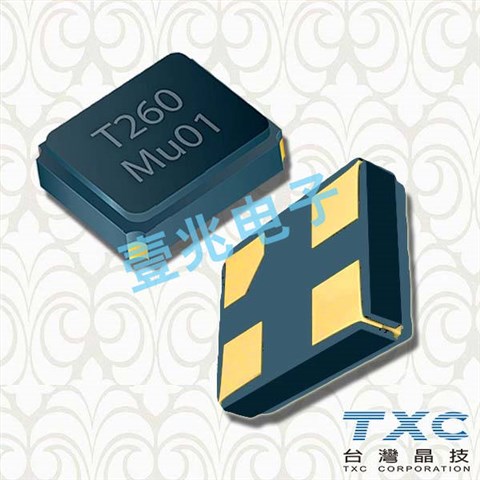

7V-22.5792MAHV-T,3225贴片石英晶体,TXC进口晶振

7V-22.5792MAHV-T,3225贴片石英晶体,TXC进口晶振，编码：7V-22.5792MAHV-T，型号：7V，工作温度：-40°C ~ 85°C，尺寸：3.2*2.5mm，频率：22.5792MHz，精度：±30ppm，负载电容：8pF，进口石英晶振，贴片石英晶体，石英晶体晶振，石英晶振，SMD晶体，表贴式晶振，贴片晶振，频率范围:8MHZ至54MHZ，玻璃密封，陶瓷SMD封装外部尺寸(毫米) 长:3.2 x宽:2.5 x高:0.8 ，通过无铅认证含有Pb，被RoHS指令豁免，差评被广泛应用于电脑、电视、游戏、数码相机，笔记本，硬盘计算机外围设备，家用电子产品消费品。

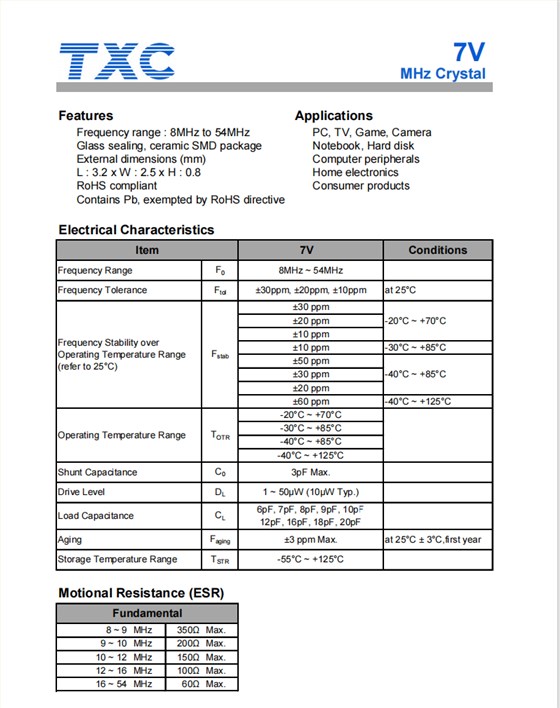

7V-22.5792MAHV-T,3225贴片石英晶体,TXC进口晶振，参数表

编码	7V-22.5792MAHV-T
品牌	TXC
型号	7V
频率	22.5792MHz
精度	±30ppm
负载电容	8pF
工作温度	-40°C ~ 85°C
尺寸	3.2*2.5mm

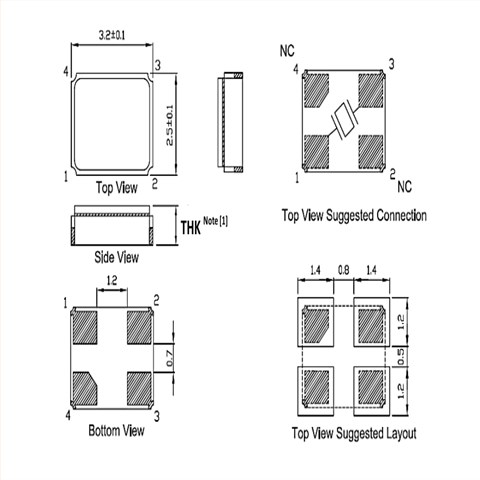

7V-22.5792MAHV-T,3225贴片石英晶体,TXC进口晶振，尺寸图

Mfr Part #	SMD晶体	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
7V-24.000MAAV-T	TXC CORPORATION	7V	24MHz	±30ppm	8pF	-20°C ~ 70°C
7V-8.000MDDQ-T	TXC CORPORATION	7V	8MHz	±20ppm	10pF	-20°C ~ 70°C
7V-12.000MAHE-T	TXC CORPORATION	7V	12MHz	±30ppm	12pF	-40°C ~ 85°C
7V-26.000MAAE-T	TXC CORPORATION	7V	26MHz	±30ppm	12pF	-20°C ~ 70°C
7V-10.000MDHV-T	TXC CORPORATION	7V	10MHz	±20ppm	8pF	-40°C ~ 85°C
7V-25.000MDDE-T	TXC CORPORATION	7V	25MHz	±20ppm	12pF	-20°C ~ 70°C
7V-25.000MAHJ-T	TXC CORPORATION	7V	25MHz	±30ppm	18pF	-40°C ~ 85°C
7V-22.5792MAHV-T	TXC CORPORATION	7V	22.5792MHz	±30ppm	8pF	-40°C ~ 85°C
7V-25.000MAAV-T	TXC CORPORATION	7V	25MHz	±30ppm	8pF	-20°C ~ 70°C
7V-16.000MAAE-T	TXC CORPORATION	7V	16MHz	±30ppm	12pF	-20°C ~ 70°C
7V-24.000MAAE-T	TXC CORPORATION	7V	24MHz	±30ppm	12pF	-20°C ~ 70°C
7V-12.000MAAE-T	TXC CORPORATION	7V	12MHz	±30ppm	12pF	-20°C ~ 70°C
7V-16.000MAHE-T	TXC CORPORATION	7V	16MHz	±30ppm	12pF	-40°C ~ 85°C
7V-14.7456MAHE-T	TXC CORPORATION	7V	14.7456MHz	±30ppm	12pF	-40°C ~ 85°C
7V-25.000MAHE-T	TXC CORPORATION	7V	25MHz	±30ppm	12pF	-40°C ~ 85°C
7V-10.000MAAV-T	TXC CORPORATION	7V	10MHz	±30ppm	8pF	-20°C ~ 70°C
7V-28.63636MAHJ-T	TXC CORPORATION	7V	28.63636MHz	±30ppm	18pF	-40°C ~ 85°C
7V-25.000MDDQ-T	TXC CORPORATION	7V	25MHz	±20ppm	10pF	-20°C ~ 70°C
7V-16.000MDDE-T	TXC CORPORATION	7V	16MHz	±20ppm	12pF	-20°C ~ 70°C
7V-12.000MDDQ-T	TXC CORPORATION	7V	12MHz	±20ppm	10pF	-20°C ~ 70°C
7V-12.000MDDJ-T	TXC CORPORATION	7V	12MHz	±20ppm	18pF	-20°C ~ 70°C
7V-30.000MDHV-T	TXC CORPORATION	7V	30MHz	±20ppm	8pF	-40°C ~ 85°C
7V-12.000MDDE-T	TXC CORPORATION	7V	12MHz	±20ppm	12pF	-20°C ~ 70°C
7V-25.000MDIQ-T	TXC CORPORATION	7V	25MHz	±20ppm	10pF	-20°C ~ 70°C
7V-24.000MDIQ-T	TXC CORPORATION	7V	24MHz	±20ppm	10pF	-20°C ~ 70°C
7V-10.000MAKV-T	TXC CORPORATION	7V	10MHz	±30ppm	8pF	-40°C ~ 125°C
7V-25.000MEEV-T	TXC CORPORATION	7V	25MHz	±30ppm	8pF	-20°C ~ 70°C
7V-10.000MAHJ-T	TXC CORPORATION	7V	10MHz	±30ppm	18pF	-40°C ~ 85°C
7V-16.384MAHV-T	TXC CORPORATION	7V	16.384MHz	±30ppm	8pF	-40°C ~ 85°C
7V-11.0592MAAE-T	TXC CORPORATION	7V	11.0592MHz	±30ppm	12pF	-20°C ~ 70°C
7V-27.120MAAE-T	TXC CORPORATION	7V	27.12MHz	±30ppm	12pF	-20°C ~ 70°C
7V-27.120MAAV-T	TXC CORPORATION	7V	27.12MHz	±30ppm	8pF	-20°C ~ 70°C
7V-16.000MAAV-T	TXC CORPORATION	7V	16MHz	±30ppm	8pF	-20°C ~ 70°C
7V-14.7456MAAE-T	TXC CORPORATION	7V	14.7456MHz	±30ppm	12pF	-20°C ~ 70°C
7V-24.576MAAE-T	TXC CORPORATION	7V	24.576MHz	±30ppm	12pF	-20°C ~ 70°C
7V-32.000MAAE-T	TXC CORPORATION	7V	32MHz	±30ppm	12pF	-20°C ~ 70°C
