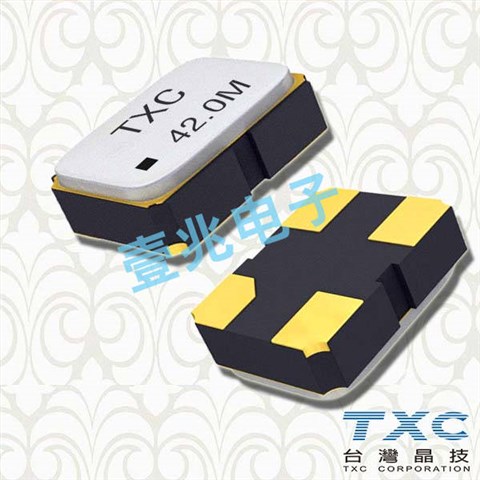

8W-12.288MBD-T,小体积2520贴片晶振,TXC石英晶体振荡器

8W-12.288MBD-T,小体积2520贴片晶振,TXC石英晶体振荡器，编码：8W-12.288MBD-T，型号：8W，工作温度：-40°C ~ 85°，尺寸：2.5mm*2.0mm，频率：12.288 MHz，精度：±25ppm，电压：3.3V，电流：15mA，进口晶振2520，石英晶体振荡器，SMD晶体，OSC石英晶振，时钟晶体振荡器，台晶晶振，超小型SMD接缝密封时钟晶体振荡器单元，适用于WLAN、蓝牙、DSC、DSL和其他IT产品，三态功能可用，符合RoHS标准/无铅。

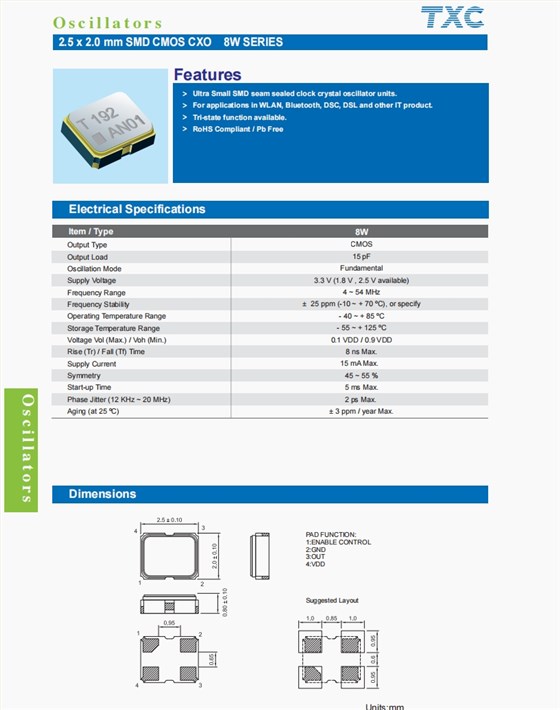

8W-12.288MBD-T,小体积2520贴片晶振,TXC石英晶体振荡器，参数表

编码	8W-12.288MBD-T
品牌	TXC
型号	8W
频率	12.288 MHz
精度	±25ppm
电压	3.3V
电流	15mA
工作温度	-40°C ~ 85°
尺寸	2.5mm*2.0mm

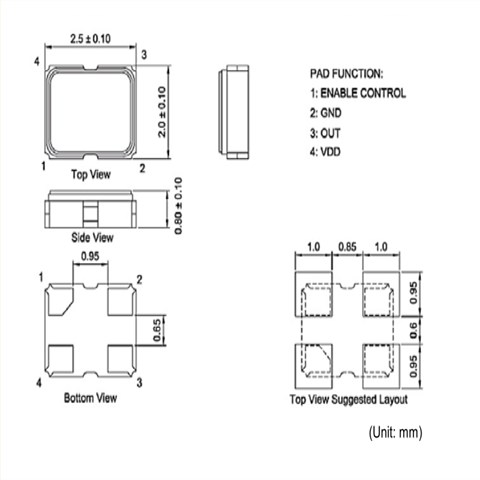

8W-12.288MBD-T,小体积2520贴片晶振,TXC石英晶体振荡器，尺寸图

Mfr Part #	进口晶振2520	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability
8W48070002	TXC CORPORATION	8W	XO (Standard)	48.0048 MHz	CMOS	3.3V	±20ppm
8W-24.000MBE-T	TXC CORPORATION	8W	XO (Standard)	24 MHz	CMOS	3.3V	±50ppm
8W-26.000MBE-T	TXC CORPORATION	8W	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm
8W-13.000MBE-T	TXC CORPORATION	8W	XO (Standard)	13 MHz	CMOS	3.3V	±50ppm
8W-20.000MBE-T	TXC CORPORATION	8W	XO (Standard)	20 MHz	CMOS	3.3V	±50ppm
8W48070009	TXC CORPORATION	8W	XO (Standard)	48 MHz	CMOS	1.62V ~ 3.63V	±25ppm
8W54070004	TXC CORPORATION	8W	XO (Standard)	54 MHz	CMOS	3.3V	±25ppm
8W49170004	TXC CORPORATION	8W	XO (Standard)	49.152 MHz	CMOS	3.3V	±25ppm
8W48070007	TXC CORPORATION	8W	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm
8W54070002	TXC CORPORATION	8W	XO (Standard)	54 MHz	CMOS	3.3V	±50ppm
8W62570006	TXC CORPORATION	8W	XO (Standard)	62.5 MHz	CMOS	3.3V	±50ppm
8W-12.000MBD-T	TXC CORPORATION	8W	XO (Standard)	12 MHz	CMOS	3.3V	±25ppm
8W-12.288MBD-T	TXC CORPORATION	8W	XO (Standard)	12.288 MHz	CMOS	3.3V	±25ppm
8W-19.200MBD-T	TXC CORPORATION	8W	XO (Standard)	19.2 MHz	CMOS	3.3V	±25ppm
8W-24.576MBD-T	TXC CORPORATION	8W	XO (Standard)	24.576 MHz	CMOS	3.3V	±25ppm
8W-25.000MBD-T	TXC CORPORATION	8W	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm
8W-32.000MBD-T	TXC CORPORATION	8W	XO (Standard)	32 MHz	CMOS	3.3V	±25ppm
8W-40.000MBD-T	TXC CORPORATION	8W	XO (Standard)	40 MHz	CMOS	3.3V	±25ppm
8W-13.000MBD-T	TXC CORPORATION	8W	XO (Standard)	13 MHz	CMOS	3.3V	±25ppm
8W-16.000MBD-T	TXC CORPORATION	8W	XO (Standard)	16 MHz	CMOS	3.3V	±25ppm
8W-27.000MBD-T	TXC CORPORATION	8W	XO (Standard)	27 MHz	CMOS	3.3V	±25ppm
8W-48.000MBD-T	TXC CORPORATION	8W	XO (Standard)	48 MHz	CMOS	3.3V	±25ppm
8W-50.000MBD-T	TXC CORPORATION	8W	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
8W-60.000MBD-T	TXC CORPORATION	8W	XO (Standard)	60 MHz	CMOS	3.3V	±25ppm
8W-36.000MBA-T	TXC CORPORATION	8W	XO (Standard)	36 MHz	CMOS	3.3V	±25ppm
8W-12.000MBA-T	TXC CORPORATION	8W	XO (Standard)	12 MHz	CMOS	3.3V	±25ppm
8W-49.152MDA-T	TXC CORPORATION	8W	XO (Standard)	49.152 MHz	CMOS	1.8V	±25ppm
8W-60.000MBA-T	TXC CORPORATION	8W	XO (Standard)	60 MHz	CMOS	3.3V	±25ppm
8W-38.400MDA-T	TXC CORPORATION	8W	XO (Standard)	38.4 MHz	CMOS	1.8V	±25ppm
8W-25.000MDA-T	TXC CORPORATION	8W	XO (Standard)	25 MHz	CMOS	1.8V	±25ppm
8W-24.576MDA-T	TXC CORPORATION	8W	XO (Standard)	24.576 MHz	CMOS	1.8V	±25ppm
8W-32.000MBA-T	TXC CORPORATION	8W	XO (Standard)	32 MHz	CMOS	3.3V	±25ppm
8W-12.000MDA-T	TXC CORPORATION	8W	XO (Standard)	12 MHz	CMOS	1.8V	±25ppm
8W-22.5792MDA-T	TXC CORPORATION	8W	XO (Standard)	22.5792 MHz	CMOS	1.8V	±25ppm
8W-22.5792MBA-T	TXC CORPORATION	8W	XO (Standard)	22.5792 MHz	CMOS	3.3V	±25ppm
8W-32.000MDA-T	TXC CORPORATION	8W	XO (Standard)	32 MHz	CMOS	1.8V	±25ppm
