CFPX-180无源晶振,LFXTAL055299REEL石英晶体谐振器

CFPX-180无源晶振,LFXTAL055299REEL石英晶体谐振器，编码：LFXTAL055299REEL，型号：CFPX-180，工作温度：-40℃ ~ 85°C，尺寸：3.2mm*2.5mm，频率：25 MHz，精度：±20ppm，负载电容：18pF，石英晶体谐振器，进口晶振，无源贴片晶体，贴片石英晶体，3225进口晶振，贴片晶体，超小型表面贴片型SMD晶振,最适合使用在汽车电子领域中,也是特别要求高可靠性的引擎控制用CPU的时钟部分.低频晶振可从7.98MHz起对应,小型,超薄型具备强防焊裂性,石英晶体在极端严酷的环境条件下也能发挥稳定的起振特性,产品本身具有耐热,耐振,耐撞击等优良的耐环境特性,满足无铅焊接以及高温回流温度曲线要求,符合AEC-Q200标准.

CFPX-180无源晶振,LFXTAL055299REEL石英晶体谐振器，参数表

编码	LFXTAL055299REEL
品牌	IQD
型号	CFPX-180
频率	25 MHz
精度	±20ppm
负载电容	18pF
工作温度	-40℃ ~ 85°C
尺寸	3.2mm*2.5mm

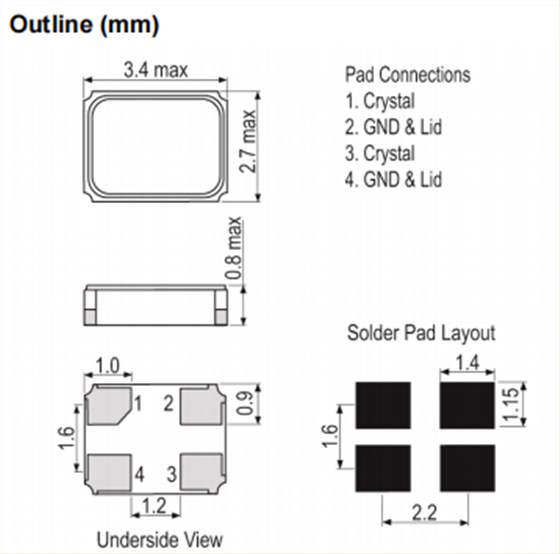

CFPX-180无源晶振,LFXTAL055299REEL石英晶体谐振器，尺寸图

Mfr Part #	IQD晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL055299REEL	IQD Frequency Products	CFPX-180	25 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL053099REEL	IQD Frequency Products	CFPX-180	27.12 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL035264REEL	IQD Frequency Products	CFPX-180	16 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL069944REEL	IQD Frequency Products	CFPX-180	12 MHz	±20ppm	15pF	-40°C ~ 85°C
LFXTAL035268REEL	IQD Frequency Products	CFPX-180	25 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL082071RL3K	IQD Frequency Products	CFPX-180	16 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL082069RL3K	IQD Frequency Products	CFPX-180	12 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL058637RL3K	IQD Frequency Products	CFPX-180	25 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL055474REEL	IQD Frequency Products	CFPX-180	25 MHz	±50ppm	16pF	-40°C ~ 85°C
LFXTAL059648REEL	IQD Frequency Products	CFPX-180	40 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL072604REEL	IQD Frequency Products	CFPX-180	25 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL069882REEL	IQD Frequency Products	CFPX-180	12 MHz	±30ppm	10pF	-40°C ~ 125°C
LFXTAL070065REEL	IQD Frequency Products	CFPX-180	24 MHz	±10ppm	9pF	-40°C ~ 85°C
LFXTAL055293REEL	IQD Frequency Products	CFPX-180	14.7456 MHz	±50ppm	18pF	-40°C ~ 85°C
LFXTAL009650REEL	IQD Frequency Products	CFPX-180	16 MHz	±10ppm	16pF	-40°C ~ 85°C
LFXTAL055295REEL	IQD Frequency Products	CFPX-180	12 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL082076REEL	IQD Frequency Products	CFPX-180	32 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL057997REEL	IQD Frequency Products	CFPX-180	16 MHz	±10ppm	10pF	-40°C ~ 85°C
LFXTAL056346REEL	IQD Frequency Products	CFPX-180	12 MHz	±30ppm	18pF	-40°C ~ 85°C
LFXTAL083138RL3K	IQD Frequency Products	CFPX-180	8 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL058149RL3K	IQD Frequency Products	CFPX-180	24 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL083409RL3K	IQD Frequency Products	CFPX-180	26 MHz	±10ppm	12pF	-40°C ~ 105°C
LFXTAL078781RL3K	IQD Frequency Products	CFPX-180	16 MHz	±30ppm	12pF	-40°C ~ 125°C
LFXTAL083407RL3K	IQD Frequency Products	CFPX-180	24 MHz	±20ppm	12pF	-40°C ~ 105°C
LFXTAL085880	IQD Frequency Products	CFPX-180	25 MHz	±20ppm	8pF	-40°C ~ 125°C
LFXTAL085874	IQD Frequency Products	CFPX-180	20 MHz	±20ppm	12pF	-40°C ~ 125°C
LFXTAL085878	IQD Frequency Products	CFPX-180	24 MHz	±20ppm	12pF	-40°C ~ 125°C
LFXTAL085860	IQD Frequency Products	CFPX-180	12 MHz	±20ppm	12pF	-40°C ~ 125°C
LFXTAL085887	IQD Frequency Products	CFPX-180	32 MHz	±10ppm	8pF	-40°C ~ 125°C
LFXTAL085881	IQD Frequency Products	CFPX-180	25 MHz	±20ppm	12pF	-40°C ~ 125°C
LFXTAL085871	IQD Frequency Products	CFPX-180	16 MHz	±20ppm	8pF	-40°C ~ 125°C
LFXTAL059611RL3K	IQD Frequency Products	CFPX-180	13.56 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL054208RL3K	IQD Frequency Products	CFPX-180	12 MHz	±10ppm	10pF	-20°C ~ 70°C
