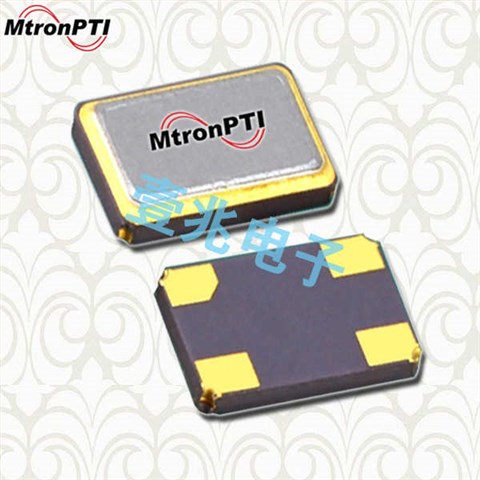

M12531DD 25.000000晶振,MtronPTI石英晶体，编码：M12531DD 25.000000，型号：M1253系列晶振，工作温度：-10℃ ~ +70℃，尺寸：2.5*3.2mm，频率：25MHz，负载电容：18 pF，精度：±10 ppm，进口晶振，无源晶振，晶体谐振器，进口贴片晶振，SMD晶体，超微型尺寸
磁带和卷轴
无引脚陶瓷封装——接缝密封，手持电子设备
PDA、全球定位系统、MP3
便携式仪器
PCMCIA卡
蓝牙。

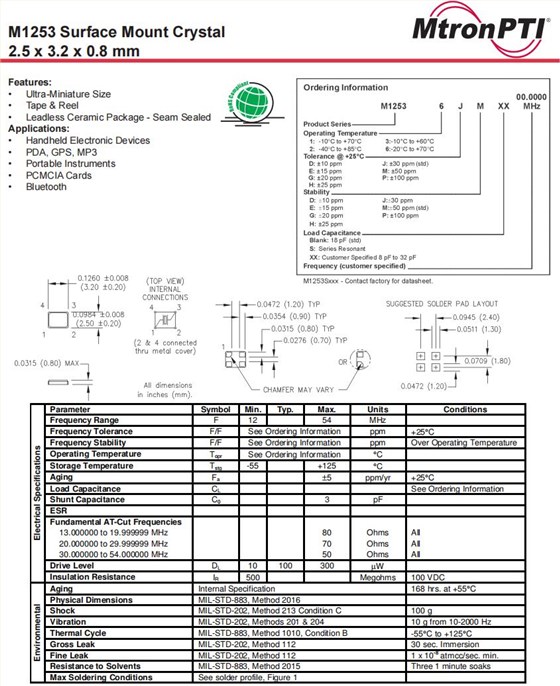

M12531DD 25.000000晶振,MtronPTI石英晶体，参数表
| 编码 | M12531DD 25.000000 |
| 品牌 | MtronPTI晶振 |
| 型号 | M1253 |
| 频率 | 25MHz |
| 精度 | ±10 ppm |
| 负载电容 | 18 pF |
| 工作温度 | -10℃ ~ +70℃ |
| Part number | 晶体谐振器 | Frequency Stability | Frequency (MHz) | Frequency Tolerance | Aging | Package | Temperature Range | Load Capacitance |
| M12531DD 25.000000 | M1253 Series | ±10 ppm | 25 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -10℃ to +70℃ | 18 pF |
| M12531DD20 25.000000 | M1253 Series | ±10 ppm | 25 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -10℃ to +70℃ | 20 pF |
| M12531JJ12 50.000000 | M1253 Series | ±30 ppm | 50 | ±30 ppm | ±5 ppm | 2.5 x 3.2 mm | -10℃ to +70℃ | 12 pF |
| M12531JM12 12.000000 | M1253 Series | ±50 ppm | 12 | ±30 ppm | ±5 ppm | 2.5 x 3.2 mm | -10℃ to +70℃ | 12 pF |
| M12531JM12 25.000000 | M1253 Series | ±50 ppm | 25 | ±30 ppm | ±5 ppm | 2.5 x 3.2 mm | -10℃ to +70℃ | 12 pF |
| M12531JM20 24.000000 | M1253 Series | ±50 ppm | 24 | ±30 ppm | ±5 ppm | 2.5 x 3.2 mm | -10℃ to +70℃ | 20 pF |
| M12531MM16 30.000000 | M1253 Series | ±50 ppm | 30 | ±50 ppm | ±5 ppm | 2.5 x 3.2 mm | -10℃ to +70℃ | 16 pF |
| M12532DE09 24.000000 | M1253 Series | ±15 ppm | 24 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 9 pF |
| M12532DG 24.000000 | M1253 Series | ±20 ppm | 24 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 18 pF |
| M12532DG08 25.000000 | M1253 Series | ±20 ppm | 25 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 8 pF |
| M12532DG12 19.200000 | M1253 Series | ±20 ppm | 19.2 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 12 pF |
| M12532DG13 24.000000 | M1253 Series | ±20 ppm | 24 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 13 pF |
| M12532DG15 20.000000 | M1253 Series | ±20 ppm | 20 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 15 pF |
| M12532DG16 14.318180 | M1253 Series | ±20 ppm | 14.3182 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 16 pF |
| M12532DG16 24.000000 | M1253 Series | ±20 ppm | 24 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 16 pF |
| M12532DG16 25.000000 | M1253 Series | ±20 ppm | 15.36 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 16 pF |
| M12532DG16 50.000000 | M1253 Series | ±20 ppm | 50 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 16 pF |
| M12532DG22 30.000000 | M1253 Series | ±20 ppm | 30 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 22 pF |
| M12532GG 25.000000 | M1253 Series | ±20 ppm | 25 | ±20 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 18 pF |
| M12532GG 50.000000 | M1253 Series | ±20 ppm | 50 | ±20 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 18 pF |
| M12532GJ 24.000000 | M1253 Series | ±30 ppm | 24 | ±20 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 18 pF |
| M12532GJ 25.000000 | M1253 Series | ±30 ppm | 25 | ±20 ppm | ±5 ppm | 2.5 x 3.2 mm | -40℃ to +85℃ | 18 pF |
