Q 20.0-JXS22-10-10/10-FU-WA-LF谐振器,Jauch石英晶体

产品简介

Q 20.0-JXS22-10-10/10-FU-WA-LF谐振器,Jauch石英晶体，编码：Q 20.0-JXS22-10-10/10-FU-WA-LF，型号：JXS22-WA ，工作温度：-20°C ~ 70°C，尺寸：2.5*2.0mm，频率：20MHz，精度：±10ppm，负载电容：10pF，JJauch晶振，石英晶体晶振，2520小体积晶振，贴片石英晶体，数码电子晶振，对于无线应用，2.5 x 2.0毫米 -无线应用的完美参考晶体 -使用蓝牙、ZigBee、NFC等进行物联网 -高频率稳定性和低ESR 金属盖子可屏蔽电磁干扰，产品适用于无线网络，数码电子，智能手机，蓝牙，手机导航，医疗设备，时钟钟表，笔记本电脑。

产品详情

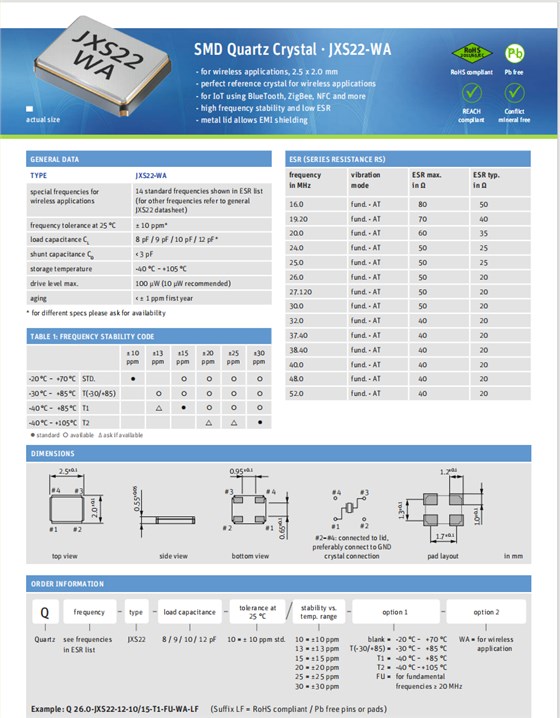

Q 20.0-JXS22-10-10/10-FU-WA-LF谐振器,Jauch石英晶体，参数表

编码	Q 20.0-JXS22-10-10/10-FU-WA-LF
品牌	Jauch
型号	JXS22-WA
频率	20MHz
精度	±10pm
负载电容	10pF
工作温度	-20°C ~ 70°C
尺寸	2.5*2.0mm

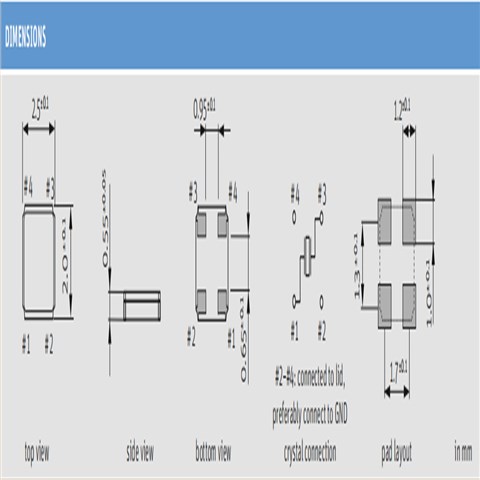

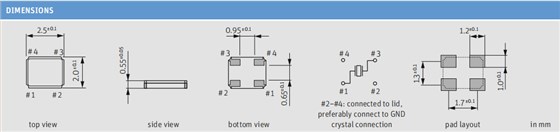

Q 20.0-JXS22-10-10/10-FU-WA-LF谐振器,Jauch石英晶体，尺寸图

Manufacturer Part Number	贴片晶体	Series	Frequency	Frequency Tolerance	Load Capacitance
Q 19.2-JXS22-10-10/10-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	10pF
Q 19.2-JXS22-12-10/10-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	12pF
Q 19.2-JXS22-8-10/10-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	8pF
Q 19.2-JXS22-9-10/10-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	9pF
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	10pF
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	12pF
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	8pF
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	9pF
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	10pF
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	12pF
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	8pF
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	9pF
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	10pF
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	12pF
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	8pF
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	9pF
Q 27.12-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	10pF
Q 27.12-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	12pF
Q 27.12-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	8pF
Q 27.12-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	9pF
Q 16.0-JXS22-10-10/10-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	10pF
Q 16.0-JXS22-12-10/10-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	12pF
Q 16.0-JXS22-8-10/10-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	8pF
Q 16.0-JXS22-9-10/10-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	9pF
Q 19.2-JXS22-10-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	10pF
Q 19.2-JXS22-12-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	12pF
Q 19.2-JXS22-8-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	8pF
Q 19.2-JXS22-9-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	9pF
Q 20.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	10pF
Q 20.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	12pF
