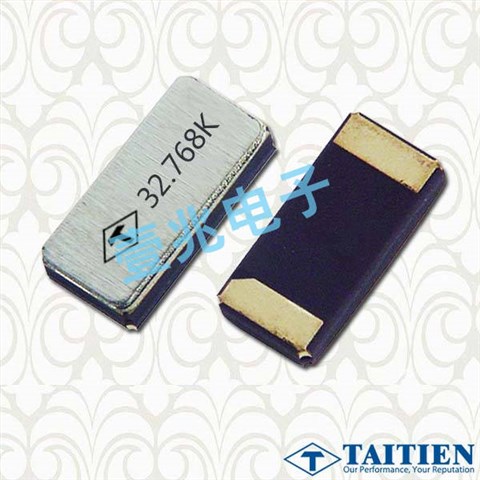

XDMCZLNDDD-0.032768,3215晶振,TAITIEN Crystal

产品简介

XDMCZLNDDD-0.032768,3215晶振,TAITIEN Crystal，编码：XDMCZLNDDD-0.032768，型号：XD系列晶振，工作温度：-40°C ~ 85°C，精度：±20ppm，尺寸：3.2*1.5mm，频率：32.768 kHz，电容：12.5pF，无源晶振，贴片石英晶体，SMD晶体，32.768K音叉晶体单元是使用最广泛的频率控制产品。台电的音叉型晶体功耗低，非常适合便携式应用程序。他们不同的包装尺寸为顾客提供了更多时间管理的选择，台电的音叉型晶体具有成本效益实时时钟产品，被广泛应用于智能家具家电，无线电话，智能手机，平板电脑，蓝牙，GPS上。

产品详情

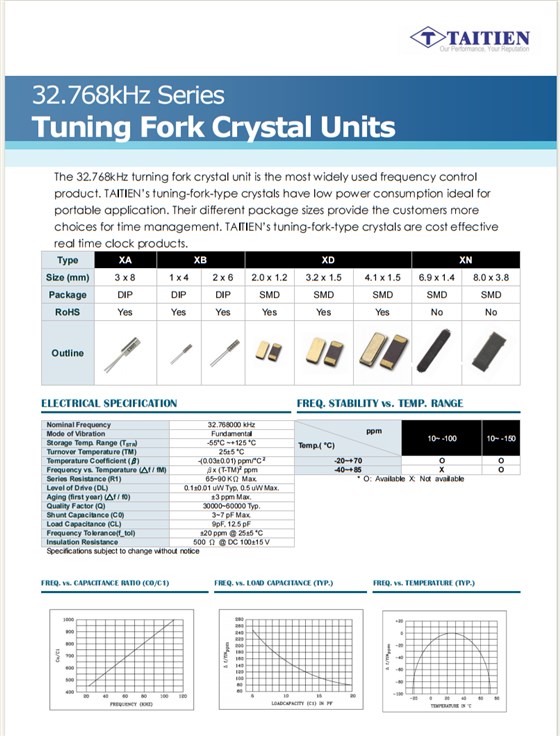

XDMCZLNDDD-0.032768,3215晶振,TAITIEN Crystal，参数表

编码	XDMCZLNDDD-0.032768
品牌	TAITIEN晶振
型号	XD
频率	32.768 kHz
精度	±20ppm
电容	12.5pF
工作温度	-40°C ~ 85°C

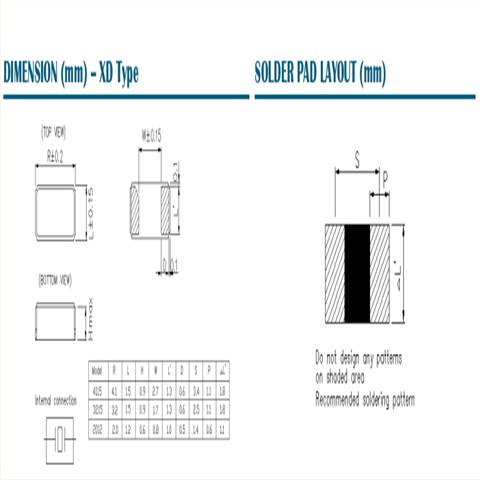

XDMCZLNDDD-0.032768,3215晶振,TAITIEN Crystal，尺寸图

原厂编码	SMD晶体	型号	频率	频率容差	负载电容	工作温度
XDMCZLNDDD-0.032768	Taitien	XD	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
XDMCZLNDMD-0.032768	Taitien	XD	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
XDLCZLNDMD-0.032768	Taitien	XD	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C
XDOCZLNDMD-0.032768	Taitien	XD	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
XDOCZLNDDD-0.032768	Taitien	XD	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
XDBCZLNDMD-0.032768	Taitien	XD	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C
XVCCECNANF-25.000000	Taitien	XV	25 MHz	±20ppm	10pF	-20°C ~ 70°C
XVEBBCNANF-40.000000	Taitien	XV	40 MHz	±10ppm	15pF	-20°C ~ 70°C
XVBCCLNANF-20.000000	Taitien	XV	20 MHz	±20ppm	9pF	-40°C ~ 85°C
XVCCCLNANF-25.000000	Taitien	XV	25 MHz	±20ppm	10pF	-40°C ~ 85°C
XVDGGHNANF-20.000000	Taitien	XV	20 MHz	±50ppm	12pF	-40°C ~ 125°C
XVHCELNANF-25.000000	Taitien	XV	25 MHz	±30ppm	20pF	-40°C ~ 85°C
XVCEELNANF-10.000000	Taitien	XV	10 MHz	±30ppm	10pF	-40°C ~ 85°C
XVDEECNANF-12.000000	Taitien	XV	12 MHz	±30ppm	12pF	-20°C ~ 70°C
XVDEECNANF-16.000000	Taitien	XV	16 MHz	±30ppm	12pF	-20°C ~ 70°C
XVDGGCNANF-27.000000	Taitien	XV	27 MHz	±50ppm	12pF	-20°C ~ 70°C
XVDGGHNANF-28.000000	Taitien	XV	28 MHz	±50ppm	12pF	-40°C ~ 125°C
XVDGHHNANF-27.000000	Taitien	XV	27 MHz	±50ppm	12pF	-40°C ~ 125°C
XVECCLNANF-13.000000	Taitien	XV	13 MHz	±20ppm	15pF	-40°C ~ 85°C
XVFEGCNANF-16.000000	Taitien	XV	16 MHz	±30ppm	16pF	-20°C ~ 70°C
XVHCCLNANF-16.000000	Taitien	XV	16 MHz	±20ppm	20pF	-40°C ~ 85°C
XVHCELNANF-14.318180	Taitien	XV	14.31818 MHz	±30ppm	20pF	-40°C ~ 85°C
XVHCELNANF-24.000000	Taitien	XV	24 MHz	±30ppm	20pF	-40°C ~ 85°C
XVHCELNANF-8.000000	Taitien	XV	8 MHz	±30ppm	20pF	-40°C ~ 85°C
XVHDDCNANF-25.000000	Taitien	XV	25 MHz	±25ppm	20pF	-20°C ~ 70°C
XVHEELNANF-24.000000	Taitien	XV	24 MHz	±30ppm	20pF	-40°C ~ 85°C
XVHEELNANF-27.000000	Taitien	XV	27 MHz	±30ppm	20pF	-40°C ~ 85°C
XVHEELNANF-8.000000	Taitien	XV	8 MHz	±30ppm	20pF	-40°C ~ 85°C
XVFBCLNANF-12.000000	Taitien	XV	12 MHz	±10ppm	16pF	-40°C ~ 85°C
