石英晶体谐振器,12.8902 KX-9A晶振,GEYER晶振

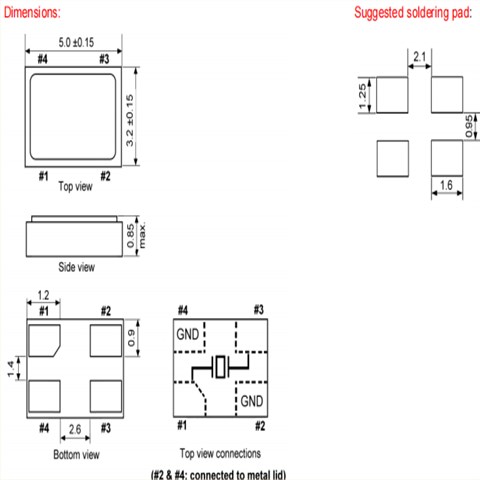

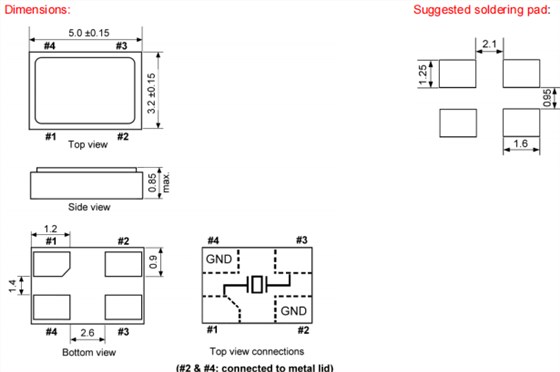

石英晶体谐振器，12.8902 KX-9A晶振，GEYER晶振，精度：±30ppm,尺寸：5.0x3.25mm,温度：50°C,频率：32MHz，石英晶振，电子晶振，医疗设备晶振，无源晶振，贴片晶振，持有超小型，稳定性等特点，通常应用于：智能安防设备晶振，蓝牙设备晶振，智能穿戴晶振，
晶振高精密点胶技术：石英晶振晶片胶点的位置、大小：位置准确度以及胶点大小一致性，通过图像识别及高精密度数字定位系统的运用、使压电晶体晶片的点胶的精度在±0.02mm之内。将被上银电极的晶片装在弹簧支架上，点上导电胶，并高温固化，通过弹簧即可引出电信号。

石英晶体谐振器，12.8902 KX-9A晶振，GEYER晶振，

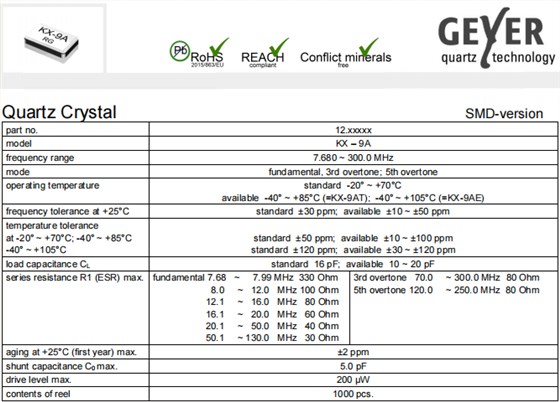

part no. 12.8902

model KX – 9A

frequency range 32MHZ

mode fundamental, 3rd overtone; 5th overtone

operating temperature
standard-20° ~ +70°C

available-40° ~ +85°C (=KX-9AT);-40° ~ +105°C (=KX-9AE)

frequency tolerance at +25°C standard±30 ppm;available±10 ~ ±50 ppm

temperature tolerance

at -20° ~ +70°C; -40° ~ +85°C

-40° ~ +105°C

standard±50 ppm;available±10 ~ ±100 ppm

standard±120 ppm;available±30 ~ ±120 ppm

load capacitance CL standard16 pF;available10 ~ 20 pF

series resistance R1 (ESR) max. fundamental7.68~7.99 MHz330 Ohm
8.0~12.0MHz 100 Ohm
12.1~16.0MHz80 Ohm
16.1~20.0MHz60 Ohm
20.1~50.0MHz40 Ohm
50.1~ 130.0MHz30 Ohm 3rd overtone70.0~ 300.0 MHz80 Ohm
5th overtone 120.0~ 250.0 MHz80 Ohm

aging at +25°C (first year) max. ±2 ppm

shunt capacitance C0max. 5.0 pF

drive level max. 200 µW

contents of reel 1000 pcs.

石英晶体谐振器，12.8902 KX-9A晶振，GEYER晶振，

石英晶体谐振器，12.8902 KX-9A晶振，GEYER晶振，

原厂编码供应商描述型号标准频率频率容差频率稳定性工作温度范围

12.8902 Geyer 晶振 Crystal 32.0Mhz SMD KX-9A 16pF, KX-9A 32 MHz ±10ppm ±30ppm -20°C ~ 70°C

12.8919 Geyer 晶振 Crystal 8.0Mhz SMD KX-9AT 16pF, KX-9AT 8 MHz ±30ppm ±100ppm -40°C ~ 85°C

12.89495 Geyer 晶振 Crystal 8.0Mhz SMD KX-9BH 8pF, 4 KX-9BH 8 MHz ±50ppm ±50ppm -20°C ~ 70°C

12.89103 Geyer 晶振 Crystal 10.0Mhz SMD KX-9AE 16pF, KX-9AE 10 MHz ±50ppm ±30ppm -40°C ~ 105°C

12.89131 Geyer 晶振 Crystal 48.0Mhz SMD KX-9AT 16pF, KX-9AT 48 MHz ±50ppm ±30ppm -40°C ~ 85°C

12.89126 石英晶振 Crystal 13.560Mhz SMD KX-9AE 16p KX-9A 13.56 MHz ±120ppm ±30ppm -40°C ~ 105°C

12.89078 Geyer 晶振 Crystal 27.0Mhz SMD KX-9AT 16pF, KX-9AT 27 MHz ±150ppm ±30ppm -40°C ~ 85°C

12.89027 Geyer 晶振 Crystal 25.0Mhz SMD KX-9A 16pF, KX-9A 25 MHz ±30ppm ±30ppm -20°C ~ 70°C

12.89017 Geyer 晶振 Crystal 13.560Mhz SMD KX-9A 16pF KX-9A 13.56 MHz ±50ppm ±30ppm -20°C ~ 70°C

12.89082 Geyer 晶振 Crystal 26.0Mhz SMD KX-9AT 16pF, KX-9AT 26 MHz ±50ppm ±30ppm -40°C ~ 85°C

12.89155 Geyer 晶振 Crystal 32.0Mhz SMD KX-9AT 16pF, KX-9AT 32 MHz ±30ppm ±30ppm -40°C ~ 85°C

12.89209 Geyer 晶振 Crystal 16.0Mhz SMD KX-9AE 20pF, KX-9AE 16 MHz ±50ppm ±30ppm -40°C ~ 105°C

12.89288 Geyer 晶振 Crystal 24.5760Mhz SMD KX-9AT 20 KX-9AT 24.576 MHz ±30ppm ±20ppm -40°C ~ 85°C

12.89029 Geyer 晶振 Crystal 27.0Mhz SMD KX-9A 16pF, KX-9A 27 MHz ±50ppm ±30ppm -20°C ~ 70°C

深圳市壹兆电子科技有限公司
联系人：龚成
电话：0755--27876236
QQ：769468702
手机：13590198504
邮箱:zhaoxiandz@163.com
网站:http://www.oscillatorcrystal.com

深圳壹兆电子科技有限公司

首页 GEYER晶振

石英晶体谐振器，12.8902 KX-9A晶振，GEYER晶振

产品简介

产品详情

关于“5032晶振,蓝牙设备晶振,”的相关产品

热点推荐

网友热评

part no.	12.8902
model	KX – 9A
frequency range	32MHZ
mode	fundamental, 3rd overtone; 5th overtone
operating temperature	standard-20° ~ +70°C available-40° ~ +85°C (=KX-9AT);-40° ~ +105°C (=KX-9AE)
frequency tolerance at +25°C	standard±30 ppm;available±10 ~ ±50 ppm
temperature tolerance at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C	standard±50 ppm;available±10 ~ ±100 ppm standard±120 ppm;available±30 ~ ±120 ppm
load capacitance CL	standard16 pF;available10 ~ 20 pF
series resistance R1 (ESR) max.	fundamental7.68~7.99 MHz330 Ohm 8.0~12.0MHz 100 Ohm 12.1~16.0MHz80 Ohm 16.1~20.0MHz60 Ohm 20.1~50.0MHz40 Ohm 50.1~ 130.0MHz30 Ohm	3rd overtone70.0~ 300.0 MHz80 Ohm 5th overtone 120.0~ 250.0 MHz80 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0max.	5.0 pF
drive level max.	200 µW
contents of reel	1000 pcs.

原厂编码	供应商	描述	型号	标准频率	频率容差	频率稳定性	工作温度范围
12.8902	Geyer 晶振	Crystal 32.0Mhz SMD KX-9A 16pF,	KX-9A	32 MHz	±10ppm	±30ppm	-20°C ~ 70°C
12.8919	Geyer 晶振	Crystal 8.0Mhz SMD KX-9AT 16pF,	KX-9AT	8 MHz	±30ppm	±100ppm	-40°C ~ 85°C
12.89495	Geyer 晶振	Crystal 8.0Mhz SMD KX-9BH 8pF, 4	KX-9BH	8 MHz	±50ppm	±50ppm	-20°C ~ 70°C
12.89103	Geyer 晶振	Crystal 10.0Mhz SMD KX-9AE 16pF,	KX-9AE	10 MHz	±50ppm	±30ppm	-40°C ~ 105°C
12.89131	Geyer 晶振	Crystal 48.0Mhz SMD KX-9AT 16pF,	KX-9AT	48 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.89126	石英晶振	Crystal 13.560Mhz SMD KX-9AE 16p	KX-9A	13.56 MHz	±120ppm	±30ppm	-40°C ~ 105°C
12.89078	Geyer 晶振	Crystal 27.0Mhz SMD KX-9AT 16pF,	KX-9AT	27 MHz	±150ppm	±30ppm	-40°C ~ 85°C
12.89027	Geyer 晶振	Crystal 25.0Mhz SMD KX-9A 16pF,	KX-9A	25 MHz	±30ppm	±30ppm	-20°C ~ 70°C
12.89017	Geyer 晶振	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm	±30ppm	-20°C ~ 70°C
12.89082	Geyer 晶振	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm	±30ppm	-40°C ~ 85°C
12.89155	Geyer 晶振	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm	±30ppm	-40°C ~ 85°C
12.89209	Geyer 晶振	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm	±30ppm	-40°C ~ 105°C
12.89288	Geyer 晶振	Crystal 24.5760Mhz SMD KX-9AT 20	KX-9AT	24.576 MHz	±30ppm	±20ppm	-40°C ~ 85°C
12.89029	Geyer 晶振	Crystal 27.0Mhz SMD KX-9A 16pF,	KX-9A	27 MHz	±50ppm	±30ppm	-20°C ~ 70°C
