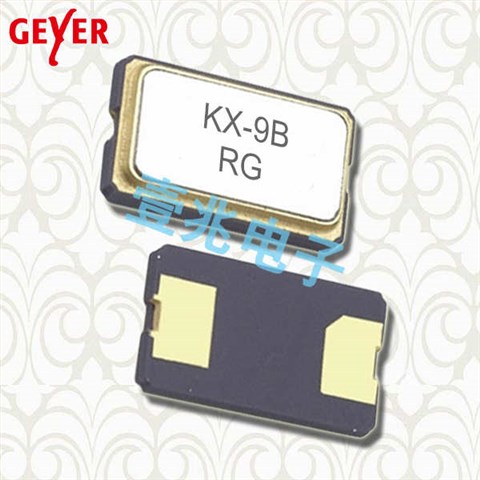

石英水晶振,12.89314 KX-9B晶振,格耶电子厂家

石英水晶振,12.89314 KX-9B晶振,格耶电子厂家，公差:±30 ppm，工作温度：-20°C~+70°C，尺寸：5.0mmx3.2mm，频率：30.0MHz，负载电容：18pF，进口石英晶振，5032晶振，贴片晶振，有源晶振，无铅环保晶振，具有：超小型，耐磨性，低电压，低损耗等特点，应用于：一般民用机器设备，智能手机，平板电脑，智能设备，小型便捷式设备等。

GEYER晶振，作为全球企业可持续的社会的实现，集团一体推进地球环境保全活动。推进了环境考虑的产品和服务的陶瓷面石英晶体谐振器产品和服务。为了提供社会，努力维护地球环境。遵守环境相关的法令、条例、限制、协定及其他要求事项，环境负荷的降低和污染的防止努力。

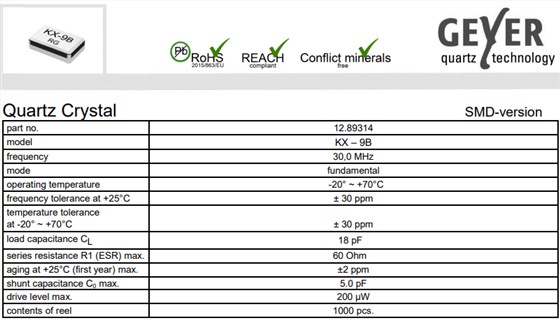

石英水晶振,12.89314 KX-9B晶振,格耶电子厂家，参数表

part no.表贴式晶振	12.89314
model	KX – 9B
frequency	30,0 MHz
mode	fundamental
operating temperature	-20° ~ +70°C
frequency tolerance at +25°C	± 30 ppm
temperature tolerance at -20° ~ +70°C	± 30 ppm
load capacitance CL	18 pF
series resistance R1 (ESR) max.	60 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0max.	5.0 pF
drive level max.	200 µW
contents of reel	1000 pcs.

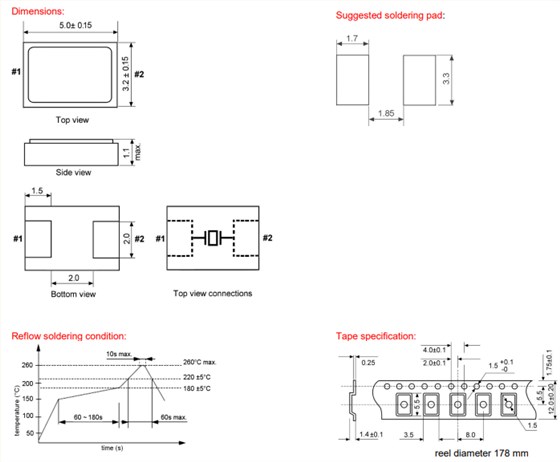

石英水晶振,12.89314 KX-9B晶振,格耶电子厂家，尺寸图

KX-9B

编码	晶振厂家	描述	型号	标准频率	频率容差	工作温度
12.95582	Geyer 晶振	XTAL OSC XO 14.7456MHZ SMD	KXO-V95	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95549	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V95T	32 MHz	±50ppm	-40°C ~ 85°C
12.95531	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V95T	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90328	Geyer 晶振	XTAL OSC XO 16.0000MHZ CMOS SMD	KXO-V94T	16 MHz	±50ppm	-40°C ~ 85°C
12.90321	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95545	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V95T	20 MHz	±50ppm	-40°C ~ 85°C
12.95103	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V96T	32 MHz	±50ppm	-40°C ~ 85°C
12.9558	Geyer 晶振	XTAL OSC XO 3.579545MHZ SMD	KXO-V95	3.579545 MHz	±50ppm	-20°C ~ 70°C
12.95094	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V96T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95034	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V96T	20 MHz	±50ppm	-40°C ~ 85°C
12.95542	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V95T	12 MHz	±50ppm	-40°C ~ 85°C
12.94474	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V97T	27 MHz	±100ppm	-40°C ~ 85°C
12.90343	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V94T	12 MHz	±50ppm	-40°C ~ 85°C
12.90325	Geyer 晶振	XTAL OSC XO 3.6864MHZ HCMOS SMD	KXO-V94	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90311	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±100ppm	-40°C ~ 85°C
12.95128	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V96E	27 MHz	±50ppm	-40°C ~ 85°C
12.95102	Geyer 晶振	XTAL OSC XO 80.0000MHZ SMD	KXO-V96T	80 MHz	±50ppm	-40°C ~ 85°C
12.90333	Geyer 晶振	XTAL OSC XO 40.0000MHZ SMD	KXO-V94T	40 MHz	±50ppm	-40°C ~ 85°C
12.90337	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V94T	26 MHz	±50ppm	-40°C ~ 85°C
12.94273	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V97T	32 MHz	±100ppm	-40°C ~ 85°C
12.94365	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V97T	14.31818 MHz	±100ppm	-40°C ~ 85°C
12.95546	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V95T	26 MHz	±50ppm	-40°C ~ 85°C
12.92106	Geyer 晶振	XTAL OSC XO 65.0000MHZ SMD	KXO-V97T	65 MHz	±100ppm	-40°C ~ 85°C
12.95571	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V95T	32.768 kHz	±30ppm	-40°C ~ 85°C
12.90344	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V94T	4 MHz	±50ppm	-40°C ~ 85°C
12.95538	Geyer 晶振	XTAL OSC XO 27.1200MHZ SMD	KXO-V95	27.12 MHz	±50ppm	-20°C ~ 70°C
12.94364	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V97T	48 MHz	±100ppm	-40°C ~ 85°C
12.95568	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95F	48 MHz	±50ppm	-40°C ~ 85°C
12.90324	Geyer 晶振	XTAL OSC XO 27.0000MHZ HCMOS SMD	KXO-V94	27 MHz	±50ppm	-40°C ~ 85°C
12.94609	Geyer 晶振	XTAL OSC XO 1.0000MHZ SMD	KXO-V99	1 MHz	±50ppm	-40°C ~ 85°C
12.95101	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V96T	48 MHz	±50ppm	-40°C ~ 85°C
12.92146	Geyer 晶振	XTAL OSC XO 22.1184MHZ SMD	KXO-V97T	22.1184 MHz	±100ppm	-40°C ~ 85°C
12.90327	Geyer 晶振	XTAL OSC XO 48.0000MHZ HCMOS SMD	KXO-V94T	48 MHz	±50ppm	-40°C ~ 85°C
12.95091	Geyer 晶振	XTAL OSC XO 10.0000MHZ SMD	KXO-V96T	10 MHz	±50ppm	-40°C ~ 85°C
12.94449	Geyer 晶振	XTAL OSC XO 18.4320MHZ SMD	KXO-V97T	18.432 MHz	±100ppm	-40°C ~ 85°C
12.94456	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V97T	3.6864 MHz	±100ppm	-40°C ~ 85°C
12.95551	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95T	48 MHz	±50ppm	-40°C ~ 85°C
12.90322	Geyer 晶振	XTAL OSC XO 20.0000MHZ CMOS SMD	KXO-V94T	20 MHz	±50ppm	-40°C ~ 85°C
12.95524	Geyer 晶振	XTAL OSC XO 25.0000MHZ SMD	KXO-V95E	25 MHz	±100ppm	-40°C ~ 85°C
12.9034	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V94T	32.768 kHz	±20ppm	-40°C ~ 85°C
12.95543	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V95T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95104	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V96-18	32.768 kHz	±50ppm	-20°C ~ 70°C
12.94422	Geyer 晶振	XTAL OSC XO 11.0592MHZ SMD	KXO-V97T	11.0592 MHz	±100ppm	-40°C ~ 85°C
12.95548	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V95T	4 MHz	±50ppm	-40°C ~ 85°C
12.90307	Geyer 晶振	XTAL OSC XO 1.8432MHZ HCMOS SMD	KXO-V94	1.8432 MHz	±50ppm	-40°C ~ 85°C
