进口石英晶振,12.97200 KXO-83晶振,GEYER晶振,，公差:±1.5 ppm，工作温度：-20°C~+70°C，储存温度范围：-40°C~+85°C，尺寸：5.0mmx3.2mm，频率：14.74560MHz，进口5032晶振，石英进口晶振，贴片晶振，具有：超薄型，超小型的特点，应用于；蓝牙设备晶振，安防设备晶振，安保设备晶振。

质量是GEYER晶振成功案例的基础。作为提供陶瓷面晶振产品领域的国际活跃专家，我们深知全面客户服务的意义和以客户需求为中心的物流设计。通过集中我们在亚洲工厂的主要生产，德国的高端生产以及专业和高性能的开发和服务团队，我们是可靠的合作伙伴。另外，根据DIN ISO 9001：2008，GEYER ELECTRONIC当然也获得了认证。GEYER晶振,贴片晶振,KX-C晶振

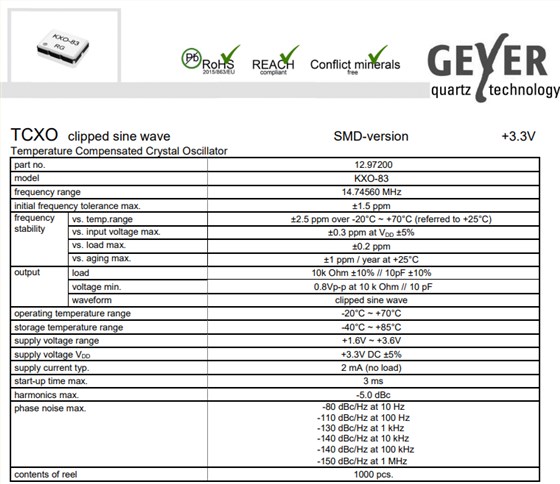

进口石英晶振,12.97200 KXO-83晶振,GEYER晶振,，参数表

part no.		12.97200
modelGEYER晶振		KXO-83
frequency range		14.74560 MHz
initial frequency tolerance max.		± 1.5 ppm
frequency stability	vs. temp.range	±2.5 ppm over -20°C ~ +70°C (referred to +25°C)
	vs. input voltage max.	±0.3 ppm at VDD±5%
	vs. load max.	±0.2 ppm
	vs. aging max.	± 1 ppm / year at +25°C
output	load	10k Ohm ± 10% // 10pF ± 10%
	voltage min.	0.8Vp-p at 10 k Ohm // 10 pF
	waveform	clipped sine wave
operating temperature range		-20°C ~ +70°C
storage temperature range		-40°C ~ +85°C
supply voltage range		+1.6V ~ +3.6V
supply voltage VDD		+3.3V DC ±5%
supply current typ.		2 mA (no load)
start-up time max.		3 ms
harmonics max.		-5.0 dBc
phase noise max.		-80 dBc/Hz at 10 Hz - 110 dBc/Hz at 100 Hz - 130 dBc/Hz at 1 kHz - 140 dBc/Hz at 10 kHz - 140 dBc/Hz at 100 kHz - 150 dBc/Hz at 1 MHz

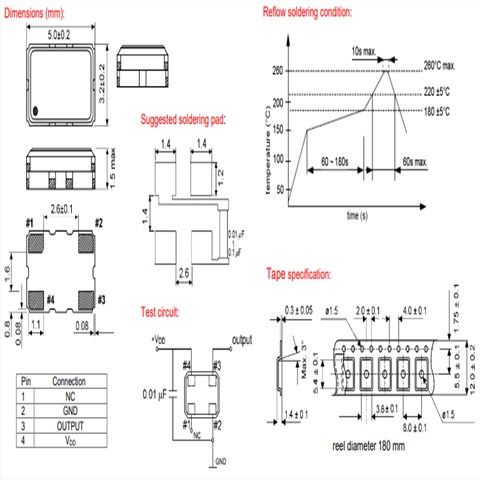

进口石英晶振,12.97200 KXO-83晶振,GEYER晶振,，尺寸图

KXO-83-1

KXO-83

编码	晶振厂家	描述	型号	标准频率	频率容差	工作温度
12.95582	Geyer 晶振	XTAL OSC XO 14.7456MHZ SMD	KXO-V95	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95549	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V95T	32 MHz	±50ppm	-40°C ~ 85°C
12.95531	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V95T	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90328	Geyer 晶振	XTAL OSC XO 16.0000MHZ CMOS SMD	KXO-V94T	16 MHz	±50ppm	-40°C ~ 85°C
12.90321	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95545	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V95T	20 MHz	±50ppm	-40°C ~ 85°C
12.95103	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V96T	32 MHz	±50ppm	-40°C ~ 85°C
12.9558	Geyer 晶振	XTAL OSC XO 3.579545MHZ SMD	KXO-V95	3.579545 MHz	±50ppm	-20°C ~ 70°C
12.95094	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V96T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95034	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V96T	20 MHz	±50ppm	-40°C ~ 85°C
12.95542	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V95T	12 MHz	±50ppm	-40°C ~ 85°C
12.94474	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V97T	27 MHz	±100ppm	-40°C ~ 85°C
12.90343	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V94T	12 MHz	±50ppm	-40°C ~ 85°C
12.90325	Geyer 晶振	XTAL OSC XO 3.6864MHZ HCMOS SMD	KXO-V94	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90311	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±100ppm	-40°C ~ 85°C
12.95128	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V96E	27 MHz	±50ppm	-40°C ~ 85°C
12.95102	Geyer 晶振	XTAL OSC XO 80.0000MHZ SMD	KXO-V96T	80 MHz	±50ppm	-40°C ~ 85°C
12.90333	Geyer 晶振	XTAL OSC XO 40.0000MHZ SMD	KXO-V94T	40 MHz	±50ppm	-40°C ~ 85°C
12.90337	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V94T	26 MHz	±50ppm	-40°C ~ 85°C
12.94273	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V97T	32 MHz	±100ppm	-40°C ~ 85°C
12.94365	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V97T	14.31818 MHz	±100ppm	-40°C ~ 85°C
12.95546	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V95T	26 MHz	±50ppm	-40°C ~ 85°C
12.92106	Geyer 晶振	XTAL OSC XO 65.0000MHZ SMD	KXO-V97T	65 MHz	±100ppm	-40°C ~ 85°C
12.95571	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V95T	32.768 kHz	±30ppm	-40°C ~ 85°C
12.90344	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V94T	4 MHz	±50ppm	-40°C ~ 85°C
12.95538	Geyer 晶振	XTAL OSC XO 27.1200MHZ SMD	KXO-V95	27.12 MHz	±50ppm	-20°C ~ 70°C
12.94364	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V97T	48 MHz	±100ppm	-40°C ~ 85°C
12.95568	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95F	48 MHz	±50ppm	-40°C ~ 85°C
12.90324	Geyer 晶振	XTAL OSC XO 27.0000MHZ HCMOS SMD	KXO-V94	27 MHz	±50ppm	-40°C ~ 85°C
12.94609	Geyer 晶振	XTAL OSC XO 1.0000MHZ SMD	KXO-V99	1 MHz	±50ppm	-40°C ~ 85°C
12.95101	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V96T	48 MHz	±50ppm	-40°C ~ 85°C
12.92146	Geyer 晶振	XTAL OSC XO 22.1184MHZ SMD	KXO-V97T	22.1184 MHz	±100ppm	-40°C ~ 85°C
12.90327	Geyer 晶振	XTAL OSC XO 48.0000MHZ HCMOS SMD	KXO-V94T	48 MHz	±50ppm	-40°C ~ 85°C
12.95091	Geyer 晶振	XTAL OSC XO 10.0000MHZ SMD	KXO-V96T	10 MHz	±50ppm	-40°C ~ 85°C
12.94449	Geyer 晶振	XTAL OSC XO 18.4320MHZ SMD	KXO-V97T	18.432 MHz	±100ppm	-40°C ~ 85°C
12.94456	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V97T	3.6864 MHz	±100ppm	-40°C ~ 85°C
12.95551	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95T	48 MHz	±50ppm	-40°C ~ 85°C
12.90322	Geyer 晶振	XTAL OSC XO 20.0000MHZ CMOS SMD	KXO-V94T	20 MHz	±50ppm	-40°C ~ 85°C
12.95524	Geyer 晶振	XTAL OSC XO 25.0000MHZ SMD	KXO-V95E	25 MHz	±100ppm	-40°C ~ 85°C
12.9034	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V94T	32.768 kHz	±20ppm	-40°C ~ 85°C
12.95543	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V95T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95104	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V96-18	32.768 kHz	±50ppm	-20°C ~ 70°C
12.94422	Geyer 晶振	XTAL OSC XO 11.0592MHZ SMD	KXO-V97T	11.0592 MHz	±100ppm	-40°C ~ 85°C
12.95548	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V95T	4 MHz	±50ppm	-40°C ~ 85°C
12.90307	Geyer 晶振	XTAL OSC XO 1.8432MHZ HCMOS SMD	KXO-V94	1.8432 MHz	±50ppm	-40°C ~ 85°C
