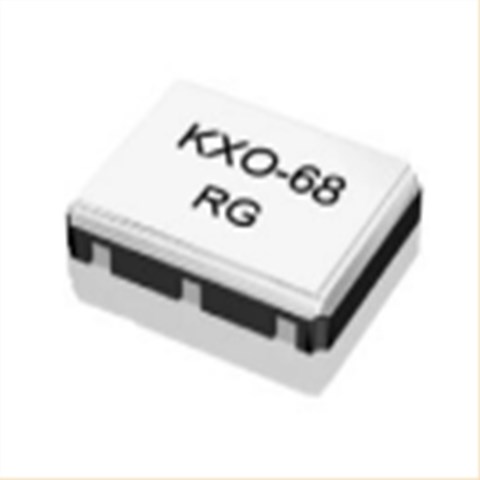

5032晶振,12.92050 KXO-68B晶振,GEYER晶振

5032晶振,12.92050 KXO-68B晶振,GEYER晶振，公差:±50 ppm，工作温度：-40°C~+85°C，储存温度范围：-55°C~+125°C，尺寸：5.0mmx3.2mm，频率：150.0MHz，格耶晶振，无铅晶振，石英晶振，贴片晶振，5032晶振，具有：低电压，低损耗，高精度，高品质，应用于：蓝牙系统晶振，安防系统晶振。

GEYER晶振，作为全球企业可持续的社会的实现，集团一体推进地球环境保全活动。推进了环境考虑的产品和服务的陶瓷面石英晶体谐振器产品和服务。为了提供社会，努力维护地球环境。遵守环境相关的法令、条例、限制、协定及其他要求事项，环境负荷的降低和污染的防止努力。

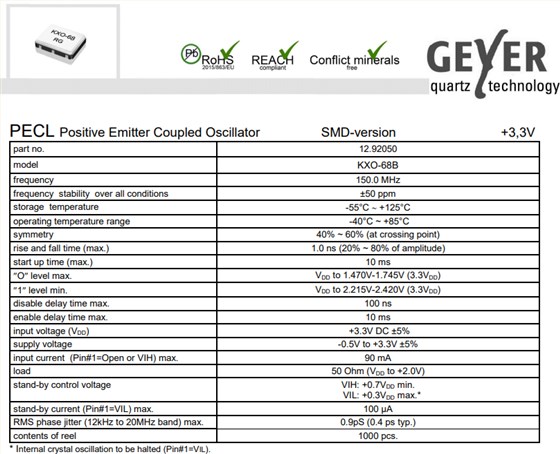

5032晶振,12.92050 KXO-68B晶振,GEYER晶振，参数表

part no.		12.92050
modelGEYER晶振		KXO-68B
frequency		150.0 MHz
frequencystabilityover all conditions		±50 ppm
storagetemperature		-55°C~+ 125°C
operating temperature range		-40°C ~ +85°C
symmetry		40% ~ 60% (at crossing point)
rise and fall time (max.)		1.0 ns (20% ~ 80% of amplitude)
start up time (max.)		10 ms
”O”level max.		VDDto 1.470V- 1.745V (3.3VDD)
”1”level min.		VDDto 2.215V-2.420V (3.3VDD)
disable delay time max.		100 ns
enable delay time max.		10 ms
input voltage (VDD)		+3.3V DC ±5%
supply voltage		-0.5V to +3.3V ±5%
input current(Pin#1=Open or VIH) max.		90 mA
load		50 Ohm (VDDto +2.0V)
stand-by control voltage		VIH: +0.7VDDmin. VIL: +0.3VDDmax.*
stand-by current (Pin#1=VIL) max.		100 µA
RMS phase jitter (12kHz to 20MHz band) max.		0.9pS (0.4 ps typ.)
contents of reel		1000 pcs.

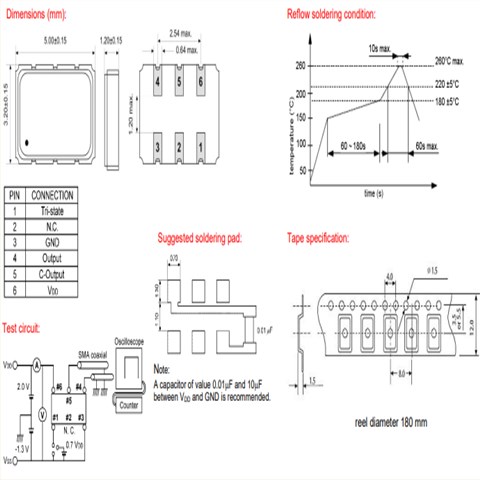

5032晶振,12.92050 KXO-68B晶振,GEYER晶振，尺寸图

KXO-68B-A

编码	晶振厂家	描述	型号	标准频率	频率容差	工作温度
12.95549	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V95T	32 MHz	±50ppm	-40°C ~ 85°C
12.95531	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V95T	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.95545	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V95T	20 MHz	±50ppm	-40°C ~ 85°C
12.95103	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V96T	32 MHz	±50ppm	-40°C ~ 85°C
12.95094	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V96T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95034	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V96T	20 MHz	±50ppm	-40°C ~ 85°C
12.95542	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V95T	12 MHz	±50ppm	-40°C ~ 85°C
12.94474	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V97T	27 MHz	±100ppm	-40°C ~ 85°C
12.95102	Geyer 晶振	XTAL OSC XO 80.0000MHZ SMD	KXO-V96T	80 MHz	±50ppm	-40°C ~ 85°C
12.94273	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V97T	32 MHz	±100ppm	-40°C ~ 85°C
12.94365	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V97T	14.31818 MHz	±100ppm	-40°C ~ 85°C
12.95546	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V95T	26 MHz	±50ppm	-40°C ~ 85°C
12.92106	Geyer 晶振	XTAL OSC XO 65.0000MHZ SMD	KXO-V97T	65 MHz	±100ppm	-40°C ~ 85°C
12.95571	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V95T	32.768 kHz	±30ppm	-40°C ~ 85°C
12.94364	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V97T	48 MHz	±100ppm	-40°C ~ 85°C
12.94609	Geyer 晶振	XTAL OSC XO 1.0000MHZ SMD	KXO-V99	1 MHz	±50ppm	-40°C ~ 85°C
12.95101	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V96T	48 MHz	±50ppm	-40°C ~ 85°C
12.92146	Geyer 晶振	XTAL OSC XO 22.1184MHZ SMD	KXO-V97T	22.1184 MHz	±100ppm	-40°C ~ 85°C
12.95091	Geyer 晶振	XTAL OSC XO 10.0000MHZ SMD	KXO-V96T	10 MHz	±50ppm	-40°C ~ 85°C
12.94449	Geyer 晶振	XTAL OSC XO 18.4320MHZ SMD	KXO-V97T	18.432 MHz	±100ppm	-40°C ~ 85°C
12.94456	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V97T	3.6864 MHz	±100ppm	-40°C ~ 85°C
12.95551	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95T	48 MHz	±50ppm	-40°C ~ 85°C
12.95543	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V95T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95104	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V96-18	32.768 kHz	±50ppm	-20°C ~ 70°C
12.94422	Geyer 晶振	XTAL OSC XO 11.0592MHZ SMD	KXO-V97T	11.0592 MHz	±100ppm	-40°C ~ 85°C
12.95548	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V95T	4 MHz	±50ppm	-40°C ~ 85°C
