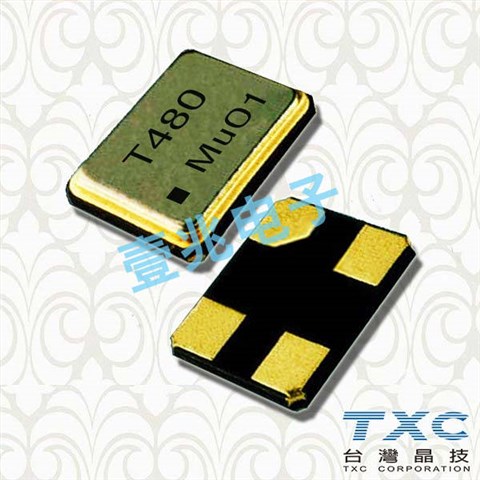

8Z-16.000MAHE-T,2520小型贴片晶振,TXC进口石英晶体

产品简介

8Z-16.000MAHE-T,2520小型贴片晶振,TXC进口石英晶体，编码：8Z-16.000MAHE-T，型号：8Z，工作温度：-40C ~ 85°C，尺寸：2.5*2.0mm，频率：16MHz，精度：±30ppm，负载电容：12pF，石英晶体晶振，晶体谐振器，进口晶振，台产晶振，石英晶振，贴片石英晶体，贴片无源晶振，频率范围：12MHZ至66MHZ，陶瓷SMD封装，接缝密封，外部尺寸长:2.5 x宽:2.0 x高:0.55 ，符合RoHS标准无铅，适用于计算机，笔记本电脑，光纤通信，无线电话，时钟钟表，智能手机，网络设备，工业设备。

产品详情

8Z-16.000MAHE-T,2520小型贴片晶振,TXC进口石英晶体，参数表

编码	8Z-16.000MAHE-T
品牌	TXC
型号	8Z
频率	16MHz
精度	±30ppm
负载电容	12pF
工作温度	-40C ~ 85°C
尺寸	2.5*2.0mm

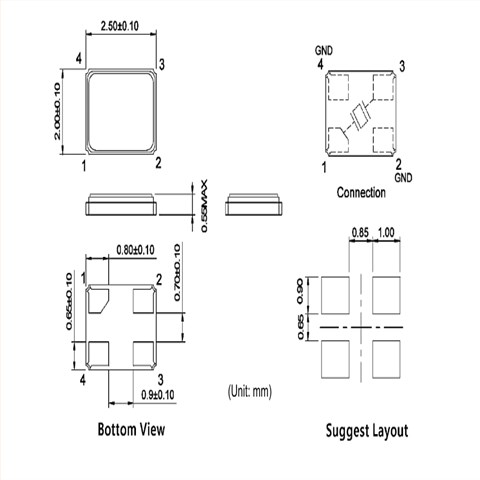

8Z-16.000MAHE-T,2520小型贴片晶振,TXC进口石英晶体，尺寸图

Mfr Part #	进口晶振2520	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
8Z-16.000MAHE-T	TXC CORPORATION	8Z	16MHz	±30ppm	12pF	-40°C ~ 85°C
8Z-12.000MAAJ-T	TXC CORPORATION	8Z	12MHz	±30ppm	18pF	-20°C ~ 70°C
8Z-25.000MAAJ-T	TXC CORPORATION	8Z	25MHz	±30ppm	18pF	-20°C ~ 70°C
8Z-27.120MAAV-T	TXC CORPORATION	8Z	27.12MHz	±30ppm	8pF	-20°C ~ 70°C
8Z-12.000MAHQ-T	TXC CORPORATION	8Z	12MHz	±30ppm	10pF	-40°C ~ 85°C
8Z-12.000MAHE-T	TXC CORPORATION	8Z	12MHz	±30ppm	12pF	-40°C ~ 85°C
8Z-24.000MAAJ-T	TXC CORPORATION	8Z	24MHz	±30ppm	18pF	-20°C ~ 70°C
8Z-16.000MAAJ-T	TXC CORPORATION	8Z	16MHz	±30ppm	18pF	-20°C ~ 70°C
8Z-26.000MEEQ-T	TXC CORPORATION	8Z	26MHz	±10ppm	10pF	-20°C ~ 70°C
8Z-25.000MEEQ-T	TXC CORPORATION	8Z	25MHz	±10ppm	10pF	-20°C ~ 70°C
8Z-24.000MAAV-T	TXC CORPORATION	8Z	24MHz	±30ppm	8pF	-20°C ~ 70°C
8Z-16.000MAAV-T	TXC CORPORATION	8Z	16MHz	±30ppm	8pF	-20°C ~ 70°C
8Z-18.432MAHE-T	TXC CORPORATION	8Z	18.432MHz	±30ppm	12pF	-40°C ~ 85°C
8Z-19.200MEEQ-T	TXC CORPORATION	8Z	19.2MHz	±10ppm	10pF	-20°C ~ 70°C
8Z-16.000MEEQ-T	TXC CORPORATION	8Z	16MHz	±10ppm	10pF	-20°C ~ 70°C
8Z-27.120MEEQ-T	TXC CORPORATION	8Z	27.12MHz	±10ppm	10pF	-20°C ~ 70°C
8Z-16.66667MAAE-T	TXC CORPORATION	8Z	16.66667MHz	±30ppm	12pF	-20°C ~ 70°C
8Z-38.400MAAE-T	TXC CORPORATION	8Z	38.4MHz	±30ppm	12pF	-20°C ~ 70°C
8Z-27.120MAHQ-T	TXC CORPORATION	8Z	27.12MHz	±30ppm	10pF	-40°C ~ 85°C
8Z-24.000MAHQ-T	TXC CORPORATION	8Z	24MHz	±30ppm	10pF	-40°C ~ 85°C
8Z-24.000MAHE-T	TXC CORPORATION	8Z	24MHz	±30ppm	12pF	-40°C ~ 85°C
8Z-19.200MAHE-T	TXC CORPORATION	8Z	19.2MHz	±30ppm	12pF	-40°C ~ 85°C
8Z-20.000MAAJ-T	TXC CORPORATION	8Z	20MHz	±30ppm	18pF	-20°C ~ 70°C
8Z-14.31818MAAJ-T	TXC CORPORATION	8Z	14.31818MHz	±30ppm	18pF	-20°C ~ 70°C
8Z-24.576MAAJ-T	TXC CORPORATION	8Z	24.576MHz	±30ppm	18pF	-20°C ~ 70°C
8Z-25.000MAHQ-T	TXC CORPORATION	8Z	25MHz	±30ppm	10pF	-40°C ~ 85°C
8Z-24.000MAKV-T	TXC CORPORATION	8Z	24MHz	±30ppm	8pF	-40°C ~ 125°C
8Z-27.120MAAJ-T	TXC CORPORATION	8Z	27.12MHz	±30ppm	18pF	-20°C ~ 70°C
8Z-31.250MAAJ-T	TXC CORPORATION	8Z	31.25MHz	±30ppm	18pF	-20°C ~ 70°C
8Z-37.400MAAJ-T	TXC CORPORATION	8Z	37.4MHz	±30ppm	18pF	-20°C ~ 70°C
