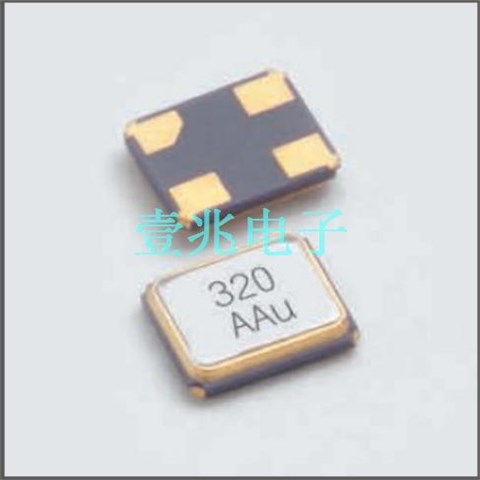

2520贴片石英晶体,C2E-20.000-10-2050-X1-R谐振器

产品简介

2520贴片石英晶体,C2E-20.000-10-2050-X1-R谐振器 ，编码：C2E-20.000-10-2050-X1-R，型号：C2E X1，工作温度：-40°C ~ 125°C，尺寸：2.5*2.0mm，频率：20MHz，精度：±20ppm，负载电容：10pF，进口石英晶振，数码电子晶振，贴片晶体，石英晶体谐振器，安基石英贴片晶体，无源晶振，SMD晶振，小体积 2520 贴片晶振是小型化市场的福音,2520 因本身体积小型,厚度薄等特点,被使用在移动通讯,蓝牙设备等领域中, 2.5x2.0mm 贴片晶振产品具备高可靠性能,在恶劣环境中也能发挥正常工作,以可靠的产品质量在业界中小有名气。

产品详情

2520贴片石英晶体,C2E-20.000-10-2050-X1-R谐振器，编码：C2E-20.000-10-2050-X1-R，型号：C2E X1，工作温度：-40°C ~ 125°C，尺寸：2.5*2.0mm，频率：20MHz，精度：±20ppm，负载电容：10pF，进口石英晶振，数码电子晶振，贴片晶体，石英晶体谐振器，安基石英贴片晶体，无源晶振，SMD晶振，小体积 2520 贴片晶振是小型化市场的福音,2520 因本身体积小型,厚度薄等特点,被使用在移动通讯,蓝牙设备等领域中, 2.5x2.0mm 贴片晶振产品具备高可靠性能,在恶劣环境中也能发挥正常工作,以可靠的产品质量在业界中小有名气。

2520贴片石英晶体,C2E-20.000-10-2050-X1-R谐振器，参数表

编码	C2E-20.000-10-2050-X1-R
品牌	AKER
型号	C2E X1
频率	20MHz
精度	±20ppm
负载电容	10pF
工作温度=	-40°C ~ 125°C
尺寸	2.5*2.0mm

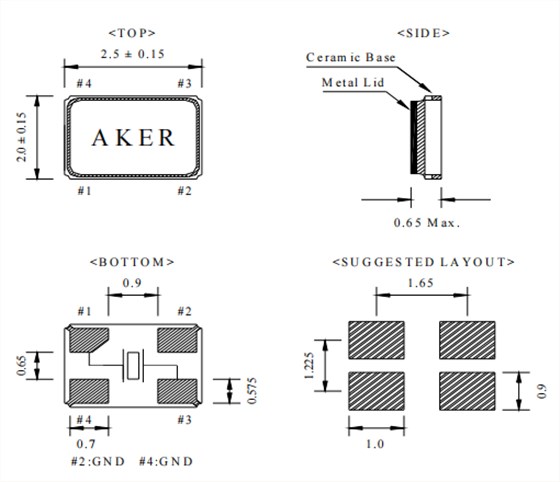

2520贴片石英晶体,C2E-20.000-10-2050-X1-R谐振器，尺寸图

Mfr Part #	石英晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
C3E-16.000-18-3030-X-R	Aker Technology Corp	C3E	16 MHz	±30ppm	18pF	-40°C ~ 85°C
C3E-20.000-12-3030-X-R	Aker Technology Corp	C3E	20 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-16.000-12-3030-R	Aker Technology Corp	C3E	16 MHz	±30ppm	12pF	-20°C ~ 70°C
C3E-25.000-18-3030-R	Aker Technology Corp	C3E	25 MHz	±30ppm	18pF	-20°C ~ 70°C
C3E-12.000-18-3030-R	Aker Technology Corp	C3E	12 MHz	±30ppm	18pF	-20°C ~ 70°C
C3E-25.000-18-2030-R	Aker Technology Corp	C3E	25 MHz	±20ppm	18pF	-40°C ~ 85°C
C3E-12.000-8-3030-R	Aker Technology Corp	C3E	12 MHz	±30ppm	8pF	-20°C ~ 70°C
C3E-25.000-8-1010-R	Aker Technology Corp	C3E	25 MHz	±10ppm	8pF	-10°C ~ 70°C
C3E-25.000-8-1520-R	Aker Technology Corp	C3E	25 MHz	±15ppm	8pF	-20°C ~ 70°C
C3E-16.000-12-3030-X-R	Aker Technology Corp	C3E	16 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-32.000-10-1010-R	Aker Technology Corp	C3E	32 MHz	±10ppm	10pF	-10°C ~ 70°C
C3E-12.000-8-1520-R	Aker Technology Corp	C3E	12 MHz	±15ppm	8pF	-20°C ~ 70°C
C3E-32.000-12-1010-R	Aker Technology Corp	C3E	32 MHz	±10ppm	12pF	-10°C ~ 70°C
C3E-25.000-8-1015-R	Aker Technology Corp	C3E	25 MHz	±10ppm	8pF	-20°C ~ 70°C
C3E-12.000-18-3030-X-R	Aker Technology Corp	C3E	12 MHz	±30ppm	18pF	-40°C ~ 85°C
C3E-25.000-12-3030-X-R	Aker Technology Corp	C3E	25 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-25.000-10-3030-X-R	Aker Technology Corp	C3E	25 MHz	±30ppm	10pF	-40°C ~ 85°C
C3E-24.000-8-1015-R	Aker Technology Corp	C3E	24 MHz	±10ppm	8pF	-20°C ~ 70°C
C3E-24.000-10-1010-R	Aker Technology Corp	C3E	24 MHz	±10ppm	10pF	-10°C ~ 70°C
C3E-32.000-12-1530-X-R	Aker Technology Corp	C3E	32 MHz	±15ppm	12pF	-40°C ~ 85°C
C3E-12.000-8-1010-R	Aker Technology Corp	C3E	12 MHz	±10ppm	8pF	-10°C ~ 70°C
C3E-16.000-8-1015-R	Aker Technology Corp	C3E	16 MHz	±10ppm	8pF	-20°C ~ 70°C
C3E-32.000-10-1015-R	Aker Technology Corp	C3E	32 MHz	±10ppm	10pF	-20°C ~ 70°C
C3E-24.000-12-1530-X-R	Aker Technology Corp	C3E	24 MHz	±15ppm	12pF	-40°C ~ 85°C
C3E-24.000-12-3030-X-R	Aker Technology Corp	C3E	24 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-24.000-18-1010-R	Aker Technology Corp	C3E	24 MHz	±10ppm	18pF	-10°C ~ 70°C
C3E-20.000-10-1530-X-R	Aker Technology Corp	C3E	20 MHz	±15ppm	10pF	-40°C ~ 85°C
C3E-25.000-8-1530-X-R	Aker Technology Corp	C3E	25 MHz	±15ppm	8pF	-40°C ~ 85°C
C3E-24.000-12-1015-X-R	Aker Technology Corp	C3E	24 MHz	±10ppm	12pF	-40°C ~ 85°C
C3E-24.000-10-1015-X-R	Aker Technology Corp	C3E	24 MHz	±10ppm	10pF	-40°C ~ 85°C
