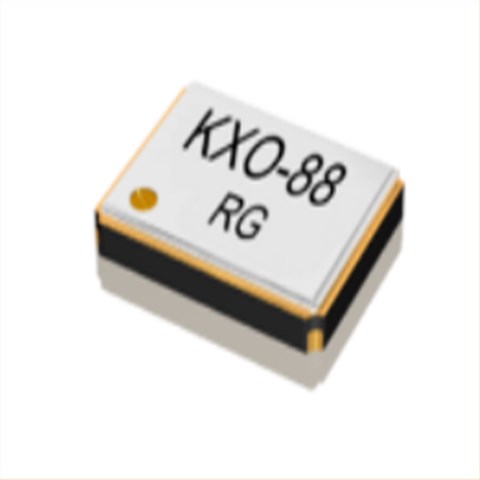

进口温补晶振,12.71502 KXO-88晶振,GEYER晶振振荡器

进口温补晶振,12.71502 KXO-88晶振,GEYER晶振振荡器，公差:±2.0ppm，工作温度：-40°C~+85°C，储存温度范围：-40°C~+85°C，尺寸：1.6mmx1.2mm，频率：32.0MHz，进口1612晶振，TCXO温补晶振，石英进口晶振，有源晶振，无铅环保晶振，具有：耐高温，耐磨损，耐损耗等特点，应用于；车载音响，蓝牙音响，医疗设备，可穿戴智能设备等。

GEYER晶振,贴片晶振,KX-C晶振,GEYER ELECTRONIC成立于1964年,总部位于慕尼黑/德国.几十年来，GEYER ELECTRONIC一直是频率产品，石英晶体，振荡器和陶瓷谐振器的领先制造商之一。另外，我们还生产品牌电池，蓄电池（可充电电池）和负载技术。最高的质量，创造力和安全性是我们创新解决方案的特点。

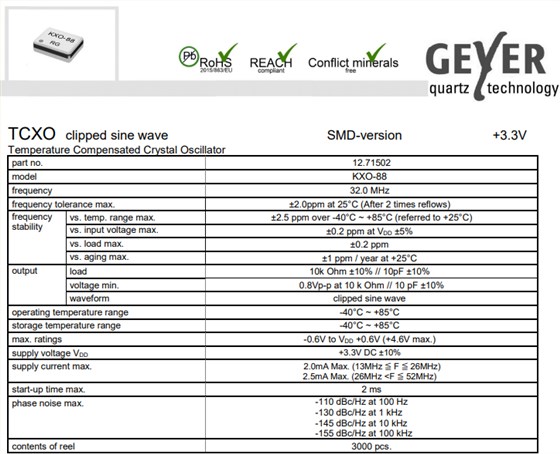

进口温补晶振,12.71502 KXO-88晶振,GEYER晶振振荡器，参数表

part no.晶振		12.71502
model		KXO-88
frequency		32.0 MHz
frequency tolerance max.		±2.0ppm at 25°C (After 2 times reflows)
frequency stability	vs. temp. range max.	±2.5 ppm over -40°C ~ +85°C (referred to +25°C)
	vs. input voltage max.	±0.2 ppm at VDD±5%
	vs. load max.	±0.2 ppm
	vs. aging max.	± 1 ppm / year at +25°C
output	load	10k Ohm ± 10% // 10pF ± 10%
	voltage min.	0.8Vp-p at 10 k Ohm // 10 pF ± 10%
	waveform	clipped sine wave
operating temperature range		-40°C ~ +85°C
storage temperature range		-40°C ~ +85°C
max. ratings		-0.6V to VDD+0.6V (+4.6V max.)
supply voltage VDD		+3.3V DC ± 10%
supply current max.		2.0mA Max. (13MHz≦F≦26MHz) 2.5mA Max. (26MHz ≦52MHz)
start-up time max.		2 ms
phase noise max.		- 110 dBc/Hz at 100 Hz - 130 dBc/Hz at 1 kHz - 145 dBc/Hz at 10 kHz - 155 dBc/Hz at 100 kHz
contents of reel		3000 pcs.

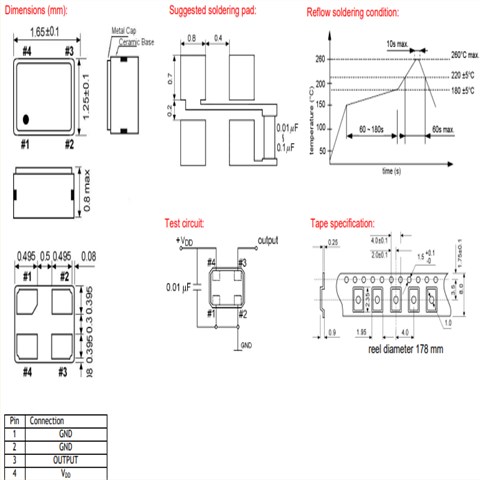

进口温补晶振,12.71502 KXO-88晶振,GEYER晶振振荡器，尺寸图

KXO-88

编码	晶振厂家	描述	型号	标准频率	频率容差	工作温度
12.95582	Geyer 晶振	XTAL OSC XO 14.7456MHZ SMD	KXO-V95	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95549	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V95T	32 MHz	±50ppm	-40°C ~ 85°C
12.95531	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V95T	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90328	石英晶振	XTAL OSC XO 16.0000MHZ CMOS SMD	KXO-V94T	16 MHz	±50ppm	-40°C ~ 85°C
12.90321	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95545	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V95T	20 MHz	±50ppm	-40°C ~ 85°C
12.95103	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V96T	32 MHz	±50ppm	-40°C ~ 85°C
12.9558	Geyer 晶振	XTAL OSC XO 3.579545MHZ SMD	KXO-V95	3.579545 MHz	±50ppm	-20°C ~ 70°C
12.95094	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V96T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95034	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V96T	20 MHz	±50ppm	-40°C ~ 85°C
12.95542	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V95T	12 MHz	±50ppm	-40°C ~ 85°C
12.94474	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V97T	27 MHz	±100ppm	-40°C ~ 85°C
12.90343	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V94T	12 MHz	±50ppm	-40°C ~ 85°C
12.90325	Geyer 晶振	XTAL OSC XO 3.6864MHZ HCMOS SMD	KXO-V94	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90311	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±100ppm	-40°C ~ 85°C
12.95128	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V96E	27 MHz	±50ppm	-40°C ~ 85°C
12.95102	Geyer 晶振	XTAL OSC XO 80.0000MHZ SMD	KXO-V96T	80 MHz	±50ppm	-40°C ~ 85°C
12.90333	Geyer 晶振	XTAL OSC XO 40.0000MHZ SMD	KXO-V94T	40 MHz	±50ppm	-40°C ~ 85°C
12.90337	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V94T	26 MHz	±50ppm	-40°C ~ 85°C
12.94273	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V97T	32 MHz	±100ppm	-40°C ~ 85°C
12.94365	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V97T	14.31818 MHz	±100ppm	-40°C ~ 85°C
12.95546	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V95T	26 MHz	±50ppm	-40°C ~ 85°C
12.92106	Geyer 晶振	XTAL OSC XO 65.0000MHZ SMD	KXO-V97T	65 MHz	±100ppm	-40°C ~ 85°C
12.95571	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V95T	32.768 kHz	±30ppm	-40°C ~ 85°C
12.90344	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V94T	4 MHz	±50ppm	-40°C ~ 85°C
12.95538	Geyer 晶振	XTAL OSC XO 27.1200MHZ SMD	KXO-V95	27.12 MHz	±50ppm	-20°C ~ 70°C
12.94364	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V97T	48 MHz	±100ppm	-40°C ~ 85°C
12.95568	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95F	48 MHz	±50ppm	-40°C ~ 85°C
12.90324	Geyer 晶振	XTAL OSC XO 27.0000MHZ HCMOS SMD	KXO-V94	27 MHz	±50ppm	-40°C ~ 85°C
12.94609	Geyer 晶振	XTAL OSC XO 1.0000MHZ SMD	KXO-V99	1 MHz	±50ppm	-40°C ~ 85°C
12.95101	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V96T	48 MHz	±50ppm	-40°C ~ 85°C
12.92146	Geyer 晶振	XTAL OSC XO 22.1184MHZ SMD	KXO-V97T	22.1184 MHz	±100ppm	-40°C ~ 85°C
12.90327	Geyer 晶振	XTAL OSC XO 48.0000MHZ HCMOS SMD	KXO-V94T	48 MHz	±50ppm	-40°C ~ 85°C
12.95091	Geyer 晶振	XTAL OSC XO 10.0000MHZ SMD	KXO-V96T	10 MHz	±50ppm	-40°C ~ 85°C
12.94449	Geyer 晶振	XTAL OSC XO 18.4320MHZ SMD	KXO-V97T	18.432 MHz	±100ppm	-40°C ~ 85°C
12.94456	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V97T	3.6864 MHz	±100ppm	-40°C ~ 85°C
12.95551	Geyer 晶振	XTAL OSC XO 48.0000MHZ SMD	KXO-V95T	48 MHz	±50ppm	-40°C ~ 85°C
12.90322	Geyer 晶振	XTAL OSC XO 20.0000MHZ CMOS SMD	KXO-V94T	20 MHz	±50ppm	-40°C ~ 85°C
12.95524	Geyer 晶振	XTAL OSC XO 25.0000MHZ SMD	KXO-V95E	25 MHz	±100ppm	-40°C ~ 85°C
12.9034	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V94T	32.768 kHz	±20ppm	-40°C ~ 85°C
12.95543	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V95T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95104	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V96-18	32.768 kHz	±50ppm	-20°C ~ 70°C
12.94422	Geyer 晶振	XTAL OSC XO 11.0592MHZ SMD	KXO-V97T	11.0592 MHz	±100ppm	-40°C ~ 85°C
12.95548	Geyer 晶振	XTAL OSC XO 4.0000MHZ SMD	KXO-V95T	4 MHz	±50ppm	-40°C ~ 85°C
12.90307	Geyer 晶振	XTAL OSC XO 1.8432MHZ HCMOS SMD	KXO-V94	1.8432 MHz	±50ppm	-40°C ~ 85°C
