AST3TQ53-V-26.000MHZ-1-C-T2艾博康Abracon压控温补晶振
在军用无线电、有线电视、点对点通信等领域,晶振作为核心时序元器件,直接决定设备信号传输的精度与稳定性.Abracon有源晶体振荡器随着通信技术向高速、高精度、全天候运行方向迭代,普通晶振已难以适配复杂工况需求,而美国艾博康Abracon推出的AST3TQ53系列压控温补晶振,凭借卓越的综合性能,成为高端通信设备的核心优选配件,由深圳市壹兆电子科技有限公司专业供应,为行业客户提供正品保障与高效采购服务.
该系列有源晶振SPXO主流型号为AST3TQ53-V-26.000MHZ-1-C-T2与AST3TQ53-V-26.000MHZ-1-SW,采用行业通用的5032四脚贴片封装,尺寸为5.0 x 3.2 x 1.6mm,体积小巧、集成度高,适配各类精密通信设备的紧凑化设计.设备供电适配3.3V工作电压,采用LVCMOS输出模式,同时支持剪裁正弦波输出,可灵活匹配不同电路系统的运行需求,兼容性极强.AST3TQ53-V-26.000MHZ-1-C-T2军用无线电晶振,有线电视晶振,点对点通信网络晶振AST3TQ53-V-26.000MHZ-1-SW

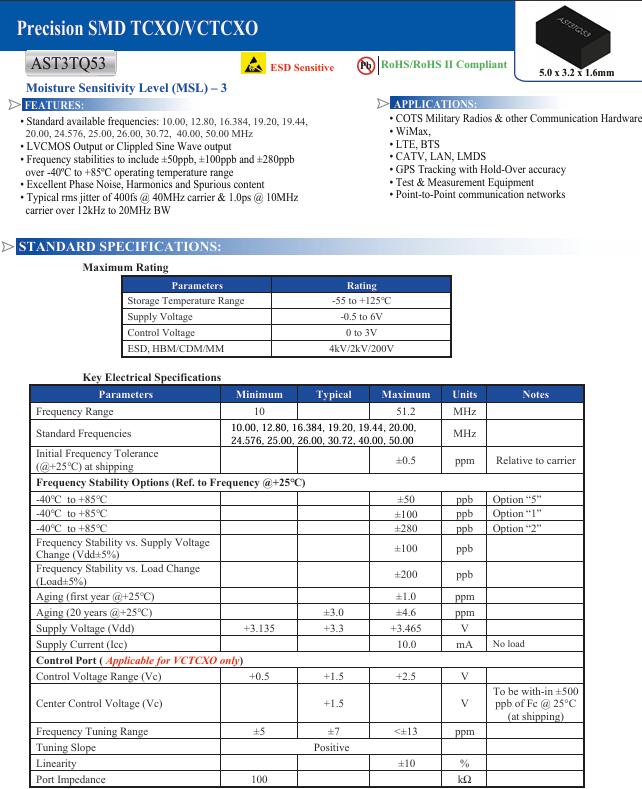

精度与环境适应性是这款晶振的核心优势.其核心精度可达±100ppb,同时支持±50ppb至±280ppb多档位频率稳定性可选,能够满足不同场景的精度需求.工作温度覆盖-40℃至85℃的宽温区间,osc石英晶振可从容应对户外、车载、军用等极端温差工况,杜绝温度波动引发的频率偏移问题.在信号性能层面,产品拥有优异的相位噪声、谐波及杂散信号抑制能力,40MHz载波下典型rms抖动仅400fs,10MHz载波下为1.0ps,大幅提升通信信号的纯净度与传输稳定性.
在规格适配方面,该晶振拥有丰富的标准可用频率,涵盖10.00MHz、26.00MHz、30.72MHz、50.00MHz等十余种行业常用频段,全面覆盖主流通信设备的频率需求.产品严格遵循无铅生产标准,符合RoHS/RoHS II环保规范,品质合规且耐用性强,具备长期稳定的工作性能,大幅降低设备运维成本.AST3TQ53-V-26.000MHZ-1-C-T2军用无线电晶振,有线电视晶振,点对点通信网络晶振AST3TQ53-V-26.000MHZ-1-SW
凭借出色的性能参数,这款VC-TCXO晶振应用场景极为广泛,不仅适配军用无线电、点对点通信网络设备,还可赋能有线电视CATV、LTE基站、WiMax、局域网及微波数据系统.同时可应用于GPS精准跟踪、测试测量设备等对时序精度要求严苛的场景,兼顾商用普及性与军工级可靠性.
作为专业的电子元器件供应商,深圳进口晶振代理商深圳市壹兆电子科技有限公司专注各类高端通信晶振供应,依托正品货源与专业服务,为通信设备厂商、工程企业提供靠谱的采购解决方案,助力各类通信设备实现高精度、高稳定、全天候可靠运行.
AST3TQ53-V-26.000MHZ-1-C-T2军用无线电晶振,有线电视晶振,点对点通信网络晶振AST3TQ53-V-26.000MHZ-1-SW
Mfr Part #
Mfr
Description
Series
Base Resonator
Type
Frequency
Output
Voltage - Supply
Frequency Stability
Operating Temperature
Package / Case
Size / Dimension
AST3TQ53-V-10.000MHZ-5-C
Abracon LLC
XTAL OSC VCTCXO 10.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
10 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-20.000MHZ-5-C
Abracon LLC
XTAL OSC VCTCXO 20.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
20 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-1-SW
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
25 MHz
Clipped Sine Wave
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-1-SW-T2
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
25 MHz
Clipped Sine Wave
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-1-SW-T5
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
25 MHz
Clipped Sine Wave
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-19.200MHZ-1-C
Abracon LLC
XTAL OSC VCTCXO 19.2000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
19.2 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
ASVTX-09-14.400MHZ-T
Abracon LLC
XTAL OSC VCTCXO 14.4000MHZ SNWV
ASVTX-09
Crystal
VCTCXO
14.4 MHz
Clipped Sine Wave
3V
±2.5ppm
-30°C ~ 75°C
4-SMD, No Lead
0.197" L x 0.126" W (5.00mm x 3.20mm)
AST3TQ53-V-10.000MHZ-1-SW
Abracon LLC
XTAL OSC VCTCXO 10.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
10 MHz
Clipped Sine Wave
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-20.000MHZ-1-C
Abracon LLC
XTAL OSC VCTCXO 20.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
20 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-30.720MHZ-1-C
Abracon LLC
XTAL OSC VCTCXO 30.7200MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
30.72 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-10.000MHZ-5-C-T5
Abracon LLC
XTAL OSC VCTCXO 10.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
10 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-10.000MHZ-5-SW-T5
Abracon LLC
XTAL OSC VCTCXO 10.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
10 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-40.000MHZ-5-C-T5
Abracon LLC
XTAL OSC VCTCXO 40.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
40 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-40.000MHZ-5-SW-T5
Abracon LLC
XTAL OSC VCTCXO 40.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
40 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-5-C
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
24.576 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-10.000MHZ-5-SW
Abracon LLC
XTAL OSC VCTCXO 10.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
10 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-20.000MHZ-5-SW
Abracon LLC
XTAL OSC VCTCXO 20.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
20 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-40.000MHZ-5-SW
Abracon LLC
XTAL OSC VCTCXO 40.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
40 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-2-C-T5
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
25 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-2-SW-T5
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
26 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-10.000MHZ-2-C
Abracon LLC
XTAL OSC VCTCXO 10.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
10 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-16.384MHZ-2-C
Abracon LLC
XTAL OSC VCTCXO 16.3840MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
16.384 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-20.000MHZ-2-SW
Abracon LLC
XTAL OSC VCTCXO 20.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
20 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-2-C
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
24.576 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-2-C
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
25 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-2-SW
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
26 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-40.000MHZ-2-SW
Abracon LLC
XTAL OSC VCTCXO 40.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
40 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
ASVTX-09-20.000MHZ-T
Abracon LLC
XTAL OSC VCTCXO 20.0000MHZ SNWV
ASVTX-09
Crystal
VCTCXO
20 MHz
Clipped Sine Wave
3V
±2.5ppm
-30°C ~ 75°C
4-SMD, No Lead
0.197" L x 0.126" W (5.00mm x 3.20mm)
ASVTX-09-12.800MHZ-T
Abracon LLC
XTAL OSC VCTCXO 12.8000MHZ SNWV
ASVTX-09
Crystal
VCTCXO
12.8 MHz
Clipped Sine Wave
3V
±2.5ppm
-30°C ~ 75°C
4-SMD, No Lead
0.197" L x 0.126" W (5.00mm x 3.20mm)
ASVTX-09-13.00MHZ-T
Abracon LLC
XTAL OSC VCTCXO 13.0000MHZ SNWV
ASVTX-09
Crystal
VCTCXO
13 MHz
Clipped Sine Wave
3V
±2.5ppm
-30°C ~ 75°C
4-SMD, No Lead
0.197" L x 0.126" W (5.00mm x 3.20mm)
ASVTX-09-16.000MHZ-T
Abracon LLC
XTAL OSC VCTCXO 16.0000MHZ SNWV
ASVTX-09
Crystal
VCTCXO
16 MHz
Clipped Sine Wave
3V
±2.5ppm
-30°C ~ 75°C
4-SMD, No Lead
0.197" L x 0.126" W (5.00mm x 3.20mm)
ASVTX-09-16.800MHZ-T
Abracon LLC
XTAL OSC VCTCXO 16.8000MHZ SNWV
ASVTX-09
Crystal
VCTCXO
16.8 MHz
Clipped Sine Wave
3V
±2.5ppm
-30°C ~ 75°C
4-SMD, No Lead
0.197" L x 0.126" W (5.00mm x 3.20mm)
ASVTX-09-19.200MHZ-T
Abracon LLC
XTAL OSC VCTCXO 19.2000MHZ SNWV
ASVTX-09
Crystal
VCTCXO
19.2 MHz
Clipped Sine Wave
3V
±2.5ppm
-30°C ~ 75°C
4-SMD, No Lead
0.197" L x 0.126" W (5.00mm x 3.20mm)
ASVTX-09-19.440MHZ-T
Abracon LLC
XTAL OSC VCTCXO 19.4400MHZ SNWV
ASVTX-09
Crystal
VCTCXO
19.44 MHz
Clipped Sine Wave
3V
±2.5ppm
-30°C ~ 75°C
4-SMD, No Lead
0.197" L x 0.126" W (5.00mm x 3.20mm)
ASVTX-09-26.000MHZ-T
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ SNWV
ASVTX-09
Crystal
VCTCXO
26 MHz
Clipped Sine Wave
3V
±2.5ppm
-30°C ~ 75°C
4-SMD, No Lead
0.197" L x 0.126" W (5.00mm x 3.20mm)
AST3TQ53-V-24.576MHZ-2-SW
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ SNWV
AST3TQ53
Crystal
VCTCXO
24.576 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-2-SW-T5
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ SNWV
AST3TQ53
Crystal进口晶振编码
VCTCXO
24.576 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-2-SW-T2
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ SNWV
AST3TQ53
Crystal
VCTCXO
24.576 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-1-C
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
24.576 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-1-C-T5
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
24.576 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-1-C-T2
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
24.576 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-1-SW
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ SNWV
AST3TQ53
Crystal
VCTCXO
24.576 MHz
Clipped Sine Wave
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-1-SW-T5
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ SNWV
AST3TQ53
Crystal
VCTCXO
24.576 MHz
Clipped Sine Wave
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-1-SW-T2
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ SNWV
AST3TQ53
Crystal
VCTCXO
24.576 MHz
Clipped Sine Wave
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-5-C-T5
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
24.576 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-5-C-T2
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
24.576 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-5-SW
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ SNWV
AST3TQ53
Crystal
VCTCXO
24.576 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead

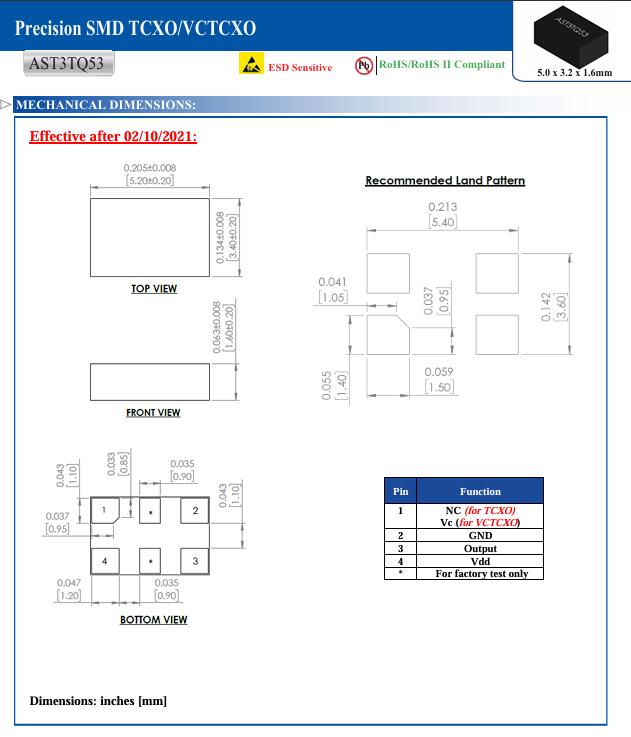

0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-5-SW-T5
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ SNWV
AST3TQ53
Crystal
VCTCXO
24.576 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-24.576MHZ-5-SW-T2
Abracon LLC
XTAL OSC VCTCXO 24.5760MHZ SNWV
AST3TQ53
Crystal
VCTCXO
24.576 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-2-C-T2
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
25 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-2-SW
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
25 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-2-SW-T5
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
25 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-2-SW-T2
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
25 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-1-C
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
25 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-1-C-T5
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
25 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-1-C-T2
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
25 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-5-C
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
25 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-5-C-T5
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
25 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-5-C-T2
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
25 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-5-SW
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
25 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-5-SW-T5
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
25 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-25.000MHZ-5-SW-T2
Abracon LLC
XTAL OSC VCTCXO 25.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
25 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-2-C
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
26 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-2-C-T5
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
26 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-2-C-T2
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
26 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-2-SW-T2
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
26 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-1-C
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
26 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-1-C-T5
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
26 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-1-C-T2
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
26 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-1-SW
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
26 MHz
Clipped Sine Wave
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-1-SW-T5
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
26 MHz
Clipped Sine Wave
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-1-SW-T2
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
26 MHz
Clipped Sine Wave
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-5-C
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
26 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-5-C-T5
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
26 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-5-C-T2
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
26 MHz
LVCMOS
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-5-SW
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
26 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-5-SW-T5
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
26 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-26.000MHZ-5-SW-T2
Abracon LLC
XTAL OSC VCTCXO 26.0000MHZ SNWV
AST3TQ53
Crystal
VCTCXO
26 MHz
Clipped Sine Wave
3.3V
±50ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-30.720MHZ-2-C
Abracon LLC
XTAL OSC VCTCXO 30.7200MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
30.72 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-30.720MHZ-2-C-T5
Abracon LLC
XTAL OSC VCTCXO 30.7200MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
30.72 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-30.720MHZ-2-C-T2
Abracon LLC
XTAL OSC VCTCXO 30.7200MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
30.72 MHz
LVCMOS
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-30.720MHZ-2-SW
Abracon LLC
XTAL OSC VCTCXO 30.7200MHZ SNWV
AST3TQ53
Crystal
VCTCXO
30.72 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-30.720MHZ-2-SW-T5
Abracon LLC
XTAL OSC VCTCXO 30.7200MHZ SNWV
AST3TQ53
Crystal
VCTCXO
30.72 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-30.720MHZ-2-SW-T2
Abracon LLC
XTAL OSC VCTCXO 30.7200MHZ SNWV
AST3TQ53
Crystal
VCTCXO
30.72 MHz
Clipped Sine Wave
3.3V
±280ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-30.720MHZ-1-C-T5
Abracon LLC
XTAL OSC VCTCXO 30.7200MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
30.72 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
AST3TQ53-V-30.720MHZ-1-C-T2
Abracon LLC
XTAL OSC VCTCXO 30.7200MHZ LVCMO
AST3TQ53
Crystal
VCTCXO
30.72 MHz
LVCMOS
3.3V
±100ppb
-40°C ~ 85°C
4-SMD, No Lead
0.205" L x 0.134" W (5.20mm x 3.40mm)
深圳市壹兆电子科技有限公司
晶振联系人：龚成石英晶体振荡器电话：0755--27876236
QQ：769468702
进口晶振手机：13590198504
陶瓷晶振邮箱:zhaoxiandz@163.com
日本台湾欧美晶振品牌网站:http://www.oscillatorcrystal.com
AST3TQ53-V-26.000MHZ-1-C-T2军用无线电晶振,有线电视晶振,点对点通信网络晶振AST3TQ53-V-26.000MHZ-1-SW
“推荐阅读”
【责任编辑】：壹兆电子版权所有：http://www.oscillatorcrystal.com转载请注明出处
