DIODES百利通亚陶晶振所生产的石英晶振,贴片晶振,有源晶体振荡器,压电石英晶体元器件、压电石英晶体、压控有源晶振广泛应用于智能设备,汽车电子,无线通讯,网络通信,精密仪器,GPS卫星,网络控制器,全球GPS定位系统等领域.工程、销售、仓储和物流办事处设在台北,香港、曼彻斯特、上海、深圳、中国、韩国、慕尼黑、德国、以及世界各地的支持办事处.

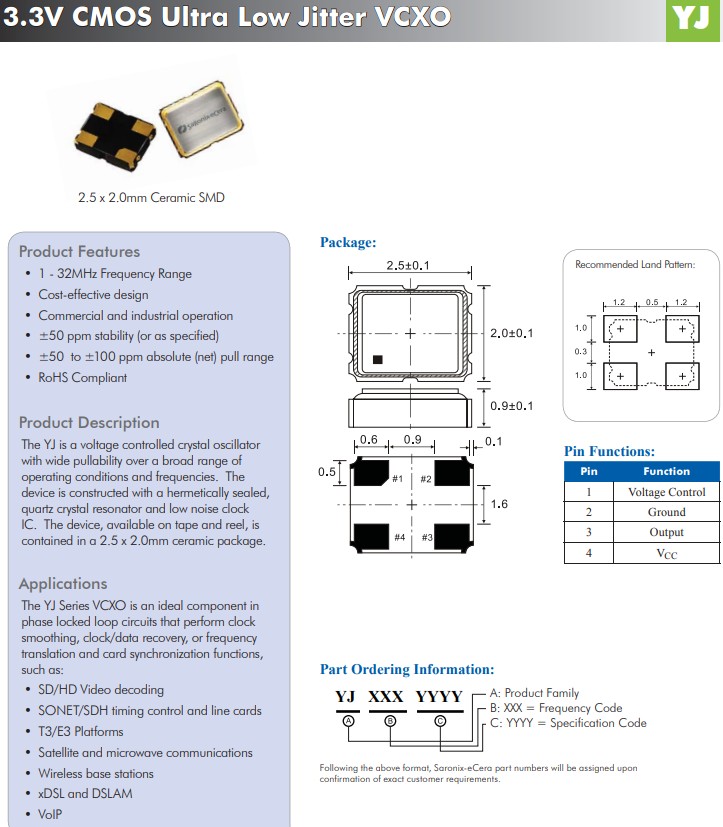

百利通亚陶晶振YJ系列是一种压控晶体振荡器，在广泛的工作条件和频率范围内具有广泛的可拉性。该器件由密封的石英晶体谐振器和低噪声时钟IC构成。该器件采用卷带包装，采用2.5x2.0mm陶瓷封装。YJ系列VCXO是执行时钟平滑、时钟/数据恢复或频率转换和卡同步功能的锁相环电路中的理想组件。

百利通亚陶晶振YJ系列VCXO具有广泛的可拉性,YNETHE125,压控晶体振荡器,ECERA晶振

HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
百利通亚陶晶振YJ系列VCXO具有广泛的可拉性,YNETHE125,压控晶体振荡器,ECERA晶振
特征：

小体积尺寸2.5x2.0mm贴片晶振
频率范围：1-32MHz
高性价比的设计
商业和工业运营
±50ppm 稳定性（或按规定）
±50至±100ppm 绝对（净）牵引范围
符合RoHS标准
应用：
标清/高清视频解码
SONET/SDH 时序控制和线卡
T3/E3平台
卫星和微波通信
无线基站
xDSL和DSLAM
网络电话

NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C

1

Product Parameters

ProductSeries YJ_3
Family VCXO
Legacy PN None
Output Logic CMOS
SupplyVoltage 3.3
PullRange 50 to 100 ppm
Freq Range (MHz) 1 to 52
Jitter RMS (ps) <2 ps RMS
Package Type Ceramic Seam
Package Size (mm) 2.5 x 2.0 x 0.9
Pads 4
NotRecommended 0

百利通亚陶晶振YJ系列VCXO具有广泛的可拉性,YNETHE125,压控晶体振荡器,ECERA晶振

产品参数：

产品系列 YJ_3
家庭 VCXO石英晶体振荡器
旧版 PN 没有任何
输出逻辑 CMOS
电源电压 3.3V
拉距 50至100ppm
频率范围 (MHz) 1MHz至52MHz
抖动均方根 (ps) <2 ps RMS
包装类型 陶瓷缝
包装尺寸2.5x2.0x0.9mm
垫 4
不建议 0

NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
百利通亚陶晶振YJ系列VCXO具有广泛的可拉性,YNETHE125,压控晶体振荡器,ECERA晶振

压控晶振（VCXO）是通过红外加控制电压使振荡效率可变或是可以调制的石英晶体振荡器，其振荡频率由晶体决定，可用控制电压在小范围内进行频率调整。VCXO大多用于锁相技术、频率负反馈调制的目的。 控制电压范围一般为0V至2V或0V至3V。VCXO的调谐范围为±100ppm至±200ppm。
