AB15T-32.768KHZ-9,AB15T贴片晶振,32.768K谐振器

频率：32.768KHz

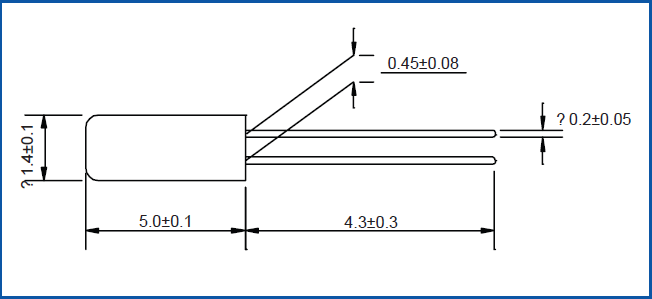

尺寸：1.4*5mm

AB15T-32.768KHZ-9,AB15T贴片晶振,32.768K谐振器，型号：AB15T系列晶振，编码为：AB15T-32.768KHZ-9，频率：32.768KHz,尺寸：1.4*5mm,工作温度为：﹣20°C ~ 70°C，负载电容：9pF，晶体谐振器，贴片晶振，具有超强的耐冲击性被广泛应用于时钟钟表，智能家具家电，网络设备，智能手机，平板电脑，无线晶振，医疗设备，卫星导航等用途。

订购热线：0755-27876236

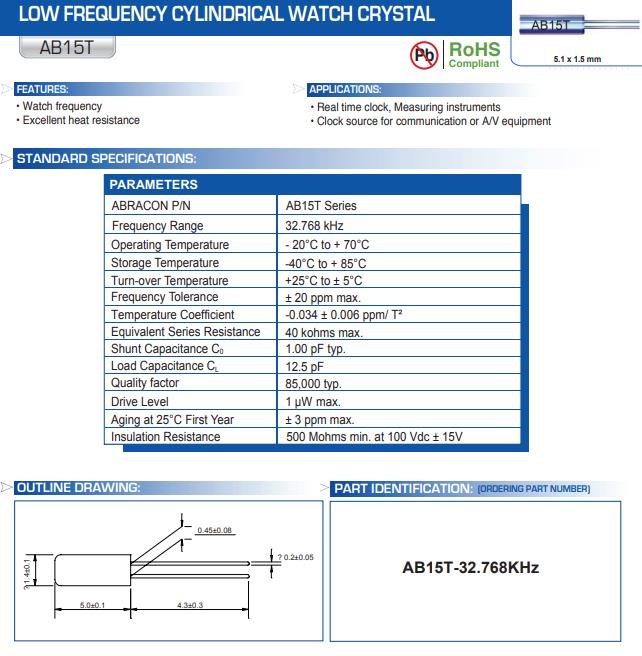

AB15T-32.768KHZ-9,AB15T贴片晶振,32.768K谐振器

ABRACON P/N

AB15T Series

Frequency Range

32.768 kHz

Operating Temperature

- 20°C to + 70°C

Storage Temperature

-40°C to + 85°C

Turn-over Temperature

+25°C to ± 5°C

Frequency Tolerance

± 20 ppm max.

Temperature Coefficient

-0.034 ± 0.006 ppm/ T²

Equivalent Series Resistance

40 kohms max.

Shunt Capacitance C0

1.00 pF typ.

Load Capacitance CL

12.5 pF

Quality factor

85,000 typ.

Drive Level

1 µW max.

Aging at 25°C First Year

± 3 ppm max.

Insulation Resistance

500 Mohms min. at 100 Vdc ± 15V

AB15T-32.768KHZ-9,AB15T贴片晶振,32.768K谐振器

Mfr Part #	晶振厂家	Series	Frequency
AB26T-32.768KHZ	Abracon LLC	AB26T	32.768 kHz
AB308-6.000MHZ	Abracon LLC	AB308	6 MHz
AB308-8.000MHZ	Abracon LLC	AB308	8 MHz
AB308-16.000MHZ	Abracon LLC	AB308	16 MHz
AB308-10.000MHZ	Abracon LLC	AB308	10 MHz
AB26T-32.768KHZ-E	Abracon LLC	AB26T	32.768 kHz
AB308-7.3728MHZ	Abracon LLC	AB308	7.3728 MHz
AB26T-32.768KHZ-6	Abracon LLC	AB26T	32.768 kHz
AB308-12.000MHZ	Abracon LLC	AB308	12 MHz
AB308-20.000MHZ	Abracon LLC	AB308	20 MHz
AB308-4.000MHZ	Abracon LLC	AB308	4 MHz
AB308-5.000MHZ	Abracon LLC	AB308	5 MHz
AB26T-32.768KHZ-6-B	Abracon LLC	AB26T	32.768 kHz
AB26TRQ-32.768KHZ-T	Abracon LLC	AB26TRQ	32.768 kHz
AB308-25.000MHZ-18-R50-5	Abracon LLC	AB308	25 MHz
AB308-6.000MHZ-18-5	Abracon LLC	AB308	6 MHz
AB308-8.000MHZ-18-5	Abracon LLC	AB308	8 MHz
AB308-7.3728MHZ-18-5	Abracon LLC	AB308	7.3728 MHz
AB26T-32.000KHZ	Abracon LLC	AB26T	32 kHz
AB308-12.000MHZ-18-R50-5	Abracon LLC	AB308	12 MHz
AB308-26.540MHZ	Abracon LLC	AB308	26.54 MHz
AB308-28.000MHZ	Abracon LLC	AB308	28 MHz
AB308-29.4912MHZ	Abracon LLC	AB308	29.4912 MHz
AB308-53.125MHZ	Abracon LLC	AB308	53.125 MHz
AB308-12.288MHZ	Abracon LLC	AB308	12.288 MHz
AB308-14.7456MHZ	Abracon LLC	AB308	14.7456 MHz
AB308-16.667MHZ	Abracon LLC	AB308	16.667 MHz
AB308-4.9152MHZ	Abracon LLC	AB308	4.9152 MHz
AB26TRB-32.768KHZ-T	Abracon LLC	AB26TRB	32.768 kHz
AB308-12.352MHZ	Abracon LLC	AB308	12.352 MHz
AB308-14.31818MHZ	Abracon LLC	AB308	14.31818 MHz
AB308-16.257MHZ	Abracon LLC	AB308	16.257 MHz
AB308-28.6363MHZ	Abracon LLC	AB308	28.6363 MHz
AB15T-32.768KHZ	Abracon LLC	AB15T	32.768 kHz
AB26TRB-32.768KHZ-6-TR	Abracon LLC	AB26TRB	32.768 kHz
AB308-10.000MHZ-18-R50-5	Abracon LLC	AB308	10 MHz
AB15T-32.768KHZ-8-1	Abracon LLC	AB15T	32.768 kHz
AB15T-32.768KHZ-9	Abracon LLC	AB15T	32.768 kHz
AB15T-32.768KHZ-8	Abracon LLC	AB15T	32.768 kHz
