9H03270042石英晶体谐振器,3215贴片晶体
频率：32.768kHz
尺寸：3.2mm*1.5mm
9H03270042石英晶体谐振器,3215贴片晶体 ，编码：9H03270042，型号：9HT10，工作温度：-40°C ~ 85°，尺寸：3.2mm*1.5mm，频率：32.768kHz，精度：±20ppm，负载电容：12.5pF，3.2x1.5晶振，石英晶体谐振器，无源贴片晶振，进口石英晶振，SMD晶体，陶瓷表面贴装封装，在手机、笔记本和DSC中的应用，符合RoHS标准/无铅。晶振高精密点胶技术：石英晶振晶片胶点的位置、大小：位置准确度以及胶点大小一致性，通过图像识别及高精密度数字定位系统的运用、使石英晶振晶片的点胶的精度在±0.02mm之内。将被上银电极的晶片装在弹簧支架上，点上导电胶，并高温固化，通过弹簧即可引出电信号。
订购热线：0755-27876236
9H03270042石英晶体谐振器,3215贴片晶体 ，编码：9H03270042，型号：9HT10，工作温度：-40°C ~ 85°，尺寸：3.2mm*1.5mm，频率：32.768kHz，精度：±20ppm，负载电容：12.5pF，3.2x1.5晶振，石英晶体谐振器，无源贴片晶振，进口石英晶振，SMD晶体，陶瓷表面贴装封装，在手机、笔记本和DSC中的应用，符合RoHS标准/无铅。晶振高精密点胶技术：石英晶振晶片胶点的位置、大小：位置准确度以及胶点大小一致性，通过图像识别及高精密度数字定位系统的运用、使石英晶振晶片的点胶的精度在±0.02mm之内。将被上银电极的晶片装在弹簧支架上，点上导电胶，并高温固化，通过弹簧即可引出电信号。

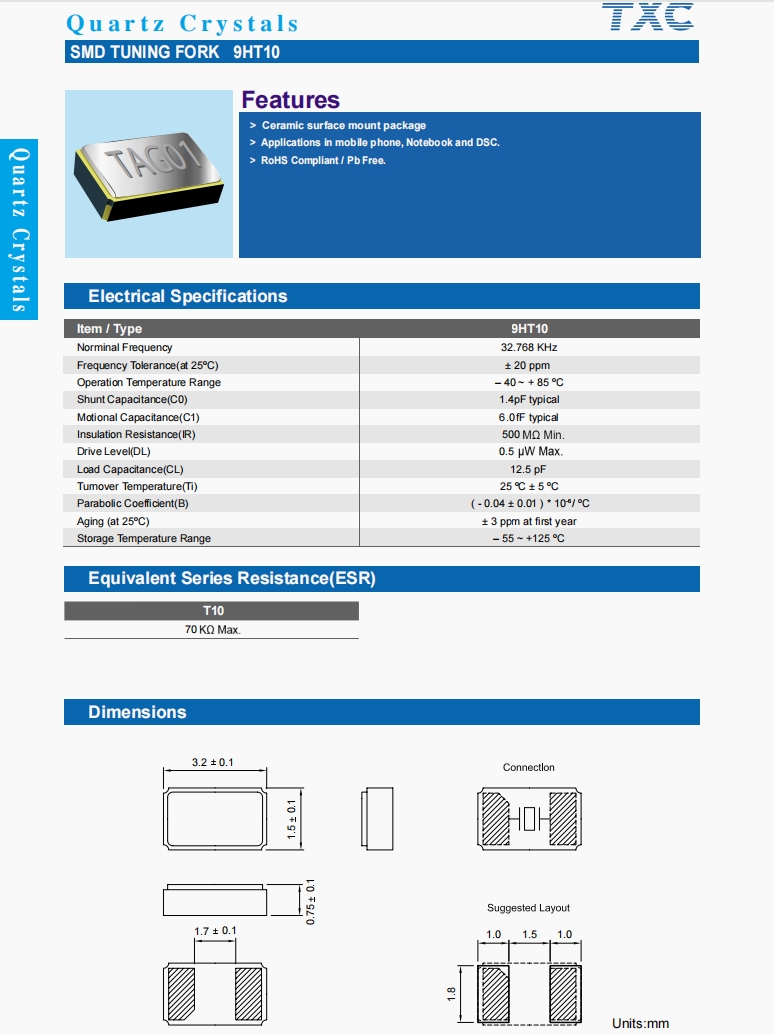

9H03270042石英晶体谐振器,3215贴片晶体 ，参数表
| 编码 |
9H03270042 |
| 品牌 | TXC |
| 型号 | 9HT10 |
| 频率 | 32.768kHz |
| 精度 |
±20ppm |
| 负载电容 |
12.5pF |
| 工作温度 |
-40°C ~ 85° |
| 尺寸 | 3.2mm*1.5mm |

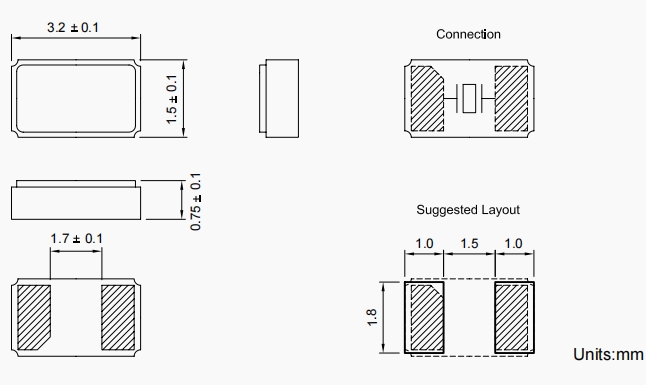

9H03270042石英晶体谐振器,3215贴片晶体 ，尺寸图
| Mfr Part # | 台晶晶振 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
| 9HT10-32.768KDZF-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9HT10-32.768KBZF-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±50ppm | 12.5pF | -40°C ~ 85°C |
| 9HT10-32.768KBZB-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±50ppm | 6pF | -40°C ~ 85°C |
| 9HT10-32.768KBZC-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±50ppm | 9pF | -40°C ~ 85°C |
| 9HT10-32.768KAZF-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±30ppm | 12.5pF | -40°C ~ 85°C |
| 9HT10-32.768KAZY-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±30ppm | 7pF | -40°C ~ 85°C |
| 9HT10-32.768KDZY-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C |
| 9HT10-32.768KEZF-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C |
| 9HT10-32.768KDZC-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| 9HT10-32.768KBZY-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±50ppm | 7pF | -40°C ~ 85°C |
| 9HT10-32.768KAZB-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±30ppm | 6pF | -40°C ~ 85°C |
| 9HT10-32.768KDZB-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| 9HT10-32.768KAZC-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±30ppm | 9pF | -40°C ~ 85°C |
| 9HT10-32.768KEZY-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C |
| 9HT10-32.768KEZC-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 85°C |
| 9HT11-32.768KEZY-T | TXC CORPORATION | 9HT10 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C |
| 9H03270036 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03200019 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03200031 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03200042 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03220005 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03220008 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03220009 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03270011 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03270040 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03270052 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03270059 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03277003 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03277005 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| 9H03200036 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| 9H03200021 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C |
| 9H03200034 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C |
| 9H03200022 | TXC CORPORATION | 9HT10 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
